| Prod Model: |
MQ-320B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max Feeding Width: |
360mm |
| Main Engineer Power: |
150W |
| Speed: |
110t/M |
| Size: |
900*800*1400mm |
| Weight: |
300kg |
| Precision: |
± 0.10mm |
| Power: |
380V 50Hz |
| Driven Type: |
Electric |
| Driven System: |
Servo Motor |
| Warranty: |
12 Months |
| Imprinting Type: |
Platen |
| Placing Form Of Template: |
Horizontal |
| Automatic Grade: |
Automatic |
| Application: |
Earthquake Products |
| Die Cutting Tool: |
Wooden Dies and Plastic Dies |
Product Description

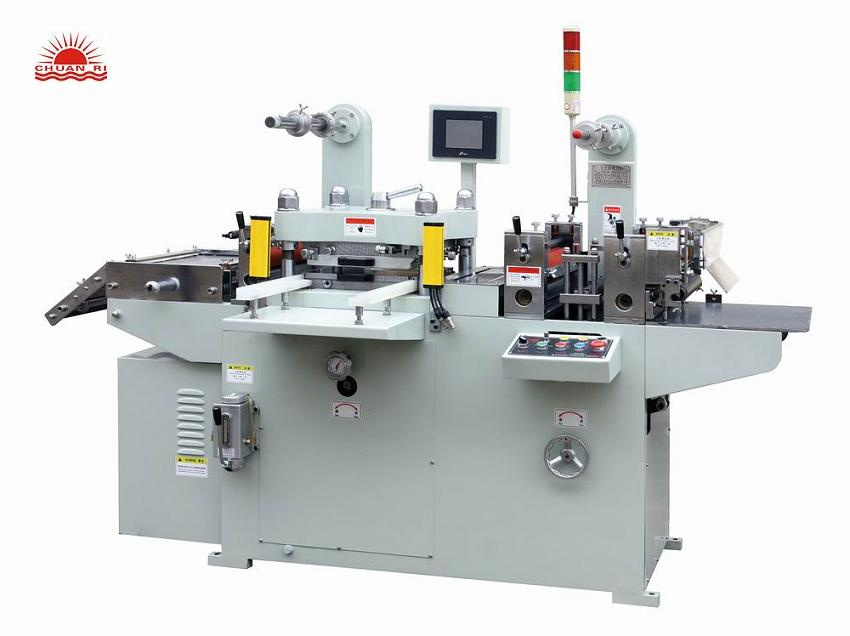

Computer and Mobile phone Screen Protector Cutting Machine
Videos Link ID:Die Cutting Machine With Auto Labeling machine: http://youtu.be/Wrxks-V0HMIDie cutting Machine: http://youtu.be/DrxkuApPb3ELaminating Slitting machine: http://youtu.be/mnD42g2E25kDie Cutting and rewinding the waste:

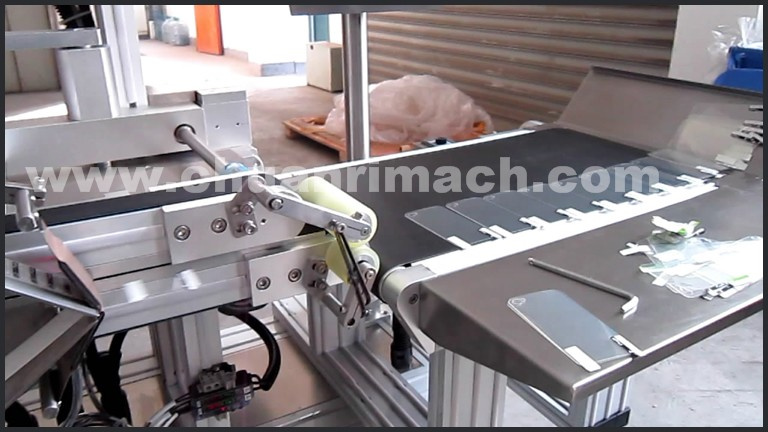

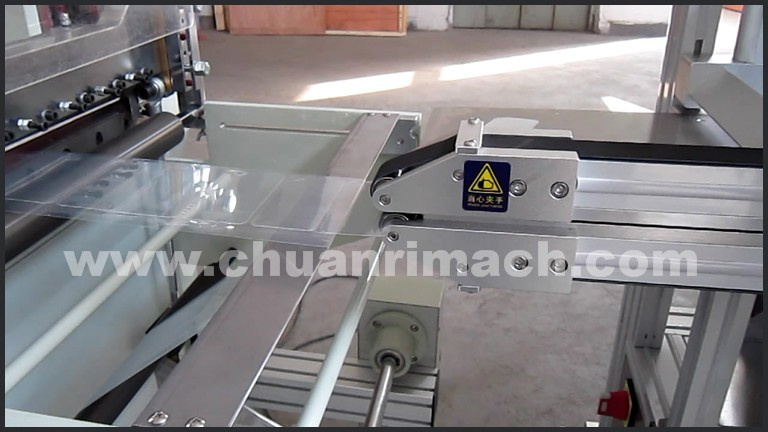

Die Cutting machine coonect withe the auto labeling machine:
Get the final products:
Main Parameters:| Model | MQ-320B |
| Max Feeding Width(mm) | 320 |
| Max Cutting Area(W*L) | 300*300 |
| Max Cutting Speed(T/Min) | 200 |
| Position Accuracy(mm) | ±0.10 |
| Power Of Main Engine(kw) | 2.2 |
| Size(L*W*H)(m) | 2.3*1.25*1.5 |
| Voltage(V) | 380 |
| Weight(kg) | 1500 |
| Total Power(kw) | 4 |
Functional characteristics:The machine body is cast on the whole, and the machine enjoys powerful pressure, stable operation, firm and durable. It contains an oil gear box which reduces abrasion to the machine during the operation, thus prolonging the life span of the machine, enhancing the utilization ratio the machine. Scope applicable:The product is developed aiming at the die cutting and forming of various insulating materials such as electric shield material, PVC, film, Mylar, copper foil, aluminum foil, foam, etc. in the electronic industry or printing industry.
Chuanri was founded in 1986. Chuanri is a leading enterprise in electronic processing machinery of China. Besides, Chuanri is the sole supplier which can offer the whole sets of machinery for electronic manufacturers' Needs in China. It' S convenient for customers to allocate their equipments.
Our company has two factories separately in Jiangsu (Suzhou Chuanri Precision Machinery Co., Ltd. ) and Zhenjiang (Fengri). We also have our own R&D and several distributors in Qingdao, Tianjin, Shanghai, Xiamen, Dongguan and Shenzhen. Our enterprise has more than 300 staff members, including more than 80 skilled personnel.
We are a private manufacturer with the ability to design and develop high precise machines by ourselves. The products we offer are die cutting machines, rotary die cutting machines, slitting machines, cutting machines, laminating machines, and mechanical equipment.
All the machines are specially used for nonmetal material stamping and pasting, and are widely used in electronics, IT, automobile and other manufacturing industries, such as the stamping of optical film used in backlight modules, adhesive products, dustproof materials, shockproof products, insulating materials, and heat resistant and insulation materials.
We own excellent production equipment, strong technical strength, complete quality control and perfect after-sales service. We are a company with the concept of "quality-oriented, the interest of customer comes first" and win clients' Trust and good comments. Our products are well sold in both domestic and overseas markets.
