Prod Model: |
JSD-A3 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Color: |
White |
Pakage Size: |
560*345*180(6L) |
20'g Capacity: |
800PCS |
40'h Capacity: |
1900PCS |
Text: |
3 Times Before Shipment |
Type: |
Flue Type |
Usage: |
Swimming Pool |
Gas Type: |
LPG |
Installation: |
Outdoor+QU-S Open Balcony Installation |
Interior Material: |
Copper |
Certification: |
S-G-S,Coc |
Housing Material: |
SPCC with White Coating |
Product Description

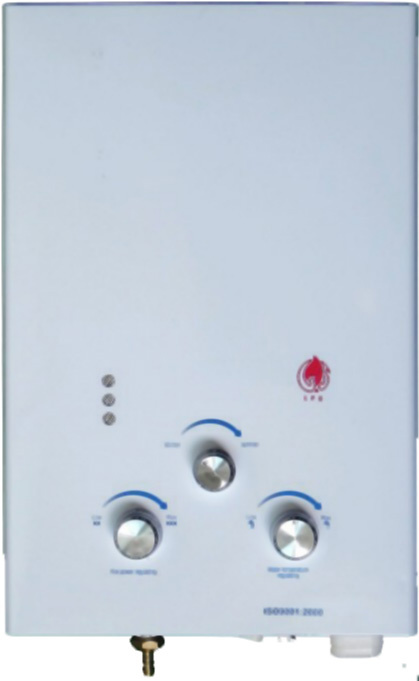

Competitive 100% Copper Gas Water Heater
Technical Date:
1. Panel Material: SPCC with white coating
2.100% copper heat exchanger tank
3. S. S. Burner of( T word and harmonica style )
4. Valve material: Brass, Aluminum, plastic
5. Zero water pressure starting optional
6. Rated water output capacity: 5-16L/min(Delta T=25° C)
7. Rated heat input: 10-24KW
8. Rated voltage: DC 3V, AC 220/50Hz, AC 110/60Hz
9. With Display optional
10. Gas -entering joint G1/2(G3/4 optional); Cool water-entering joint G1/2; Hot water outlet joint 1/2
Specification:
1) With Five-years Quality Gurantee
2) With over-temp. Protection, Antifrost protection.
3) Three knobs with summer and winter (Selectable)
4) Heat exchanger made of 100% Copper
5) With display
6) Double automatic electrical pulse ignition device.
7) With protection against dry burn
Features:
1) Low water pressure starting and high water pressure protection.
2) High energy-saving: Apply with advanced energy-saving and burning technology, reducing gas depletion and burning noise.
3) Flame failure safety device: It will automatically cut gas source when flameout in accident for avoiding gas leak, reminding that you need to air exchange, it could be use when you restart.
4) Dry burning protection: Temp. Sensor device automatic cut off gas source while heating element is dry heating.
5) Prevent frozen protection: In case of temperature lower than 6 degree in chill condition, Should open the switch to release inner water avoid having ice swelling broken valve.
Our Comany
Located in Xijiao Industrial Zone, Ronggui Town, Shunde District, Foshan City, Qiantian Electric Appliance Co., Ltd. Is a famous professional producer of modern domestic electric appliances.
Our firm mainly manufactures gas stoves, gas hobs, gas water heaters, gas kitchen ranges, oil smoke extractors, electric water heaters, electric pressure cookers, induction cookers, sterilization cabinets and computer-controlled rice cookers.
We enjoy a high reputation for professional quality, powerful production strength, and persistent quality pursuit. In aspect of quality, all products, made with great elaboration, are up to market demands. Besides, they are complete in specification and rich in variety.
Model |
A-5L |
A-6L |
A-7L |
A-8L |
A-9L |
A-10L |
A-12L |
Rated Voltage |
3V Dry Battery |
Thermal Efficiency |
90% |
Rated Heat Output(MJ/H) |
28 |
36 |
44 |
53 |
62 |
71 |
90 |
Gas
Consumption |
NG(m 3 /h) |
1.01 |
1.23 |
1.45 |
1.65 |
1.78 |
2.00 |
2.45 |
LPG(kg/h) |
0.8 |
1.0 |
1.2 |
1.4 |
1.6 |
1.8 |
2.2 |
Rated Capacity(L/min) |
5 |
6 |
7 |
8 |
9 |
10 |
12 |
Installation/Exhaust Type |
Wall Mounted/Flue Type |
Gas Type |
LPG(2800pa)/NG(2000pa) |
Type of Ignition |
Double electrical pulse auto ignition |
Connections |
Water Pipe:1/2"BSP,Gas House:8.5/9.5 mm
Flue Diameter:110mm |
Water Pressure |
0.02~0.7(MPa) |
Other |
7 type safety protection |
