| Prod Model: |
SN-470-58/1800-20-C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
Whole Set 5 Years |
| Producing Time: |
1x20gp or 1x40gp Container Within 7-10days |
| Anti-Hail: |
25mm |
| Insulation Layer: |
Polyurethane |
| Working Pressure: |
0mpa |
| Delivery: |
by Ship |
| Usage: |
Bathroom or Small Project |
| Installation: |
Freestanding |
| Connection Type: |
Direct-Plug |
| Original: |
Changzhou, Jiangsu, China |
| Structure: |
Compact Type |
| Pressure: |
Unpressurized |
| Interior Material: |
Stainless Steel |
| Collector Components: |
Glass Vacuum Tube |
| Certification: |
ISO9001, SGS, SRCC |
Product Description

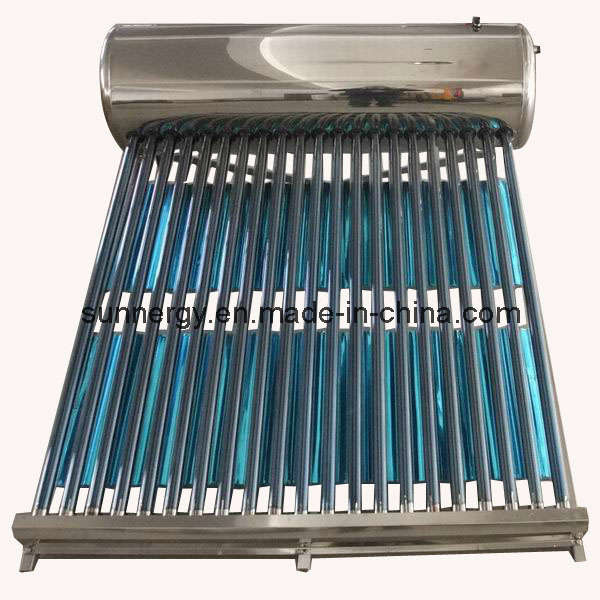

Pressure Solar Water Heater---Stainless Steel
1. Heat-pipe
2. Pressurized
3. Long life and 10 years warranty
4. High efficiency
Selection Well
1. Sectional metal heat-pipe vacuum tube (size: OD58mm*1800mm); No water in vacuum tube, no water dirty, prevent freezing.
2. "stainless steel tank or porcelain tank": Working Pressure: <= 0.6Mpa ( the steel plate and macromolecule material connection very well)
3. Insulation: Polyurethane integral foaming with 55mm thickness
4. Material of outer tank: Stainless steel or aluminizing zinc plate with 0.35mm thickness compact pressure solar water heater
5. Material of support: Stainless Steel Profiled Bar or Zinc plated stand parts with 1.2mm thickness
6. Using the electric heater system, it can be lasting used in the cloudly, rainy and snowy days.
Performance Parameters
|
Model |
Dia. of tube (mm) |
Length of tube (mm) |
Quantity of heat-pipe with vacuum tube (pcs) |
Capacity (L) |
For people (No.) |
Loading 20"/40" (pcs) |
|
1800/58-15-CAP |
Ø 58 |
1800 |
15 |
120 |
2-3 |
46/92 |
|
1800/58-18-CAP |
Ø 58 |
1800 |
18 |
145 |
3-5 |
38/76 |
|
1800/58-20-CAP |
Ø 58 |
1800 |
20 |
165 |
4-5 |
35/70 |
1800/58-
24-CAP |
Ø 58 |
1800 |
24 |
200 |
4-6 |
30/60 |
