| Prod Model: |
DIYI-IP01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Collector Components: |
Glass Vacuum Tube |
| Pressure: |
Pressurized |
| Structure: |
Compact Type |
| Interior Material: |
Stainless Steel |
| Certification: |
SABS |
Product Description

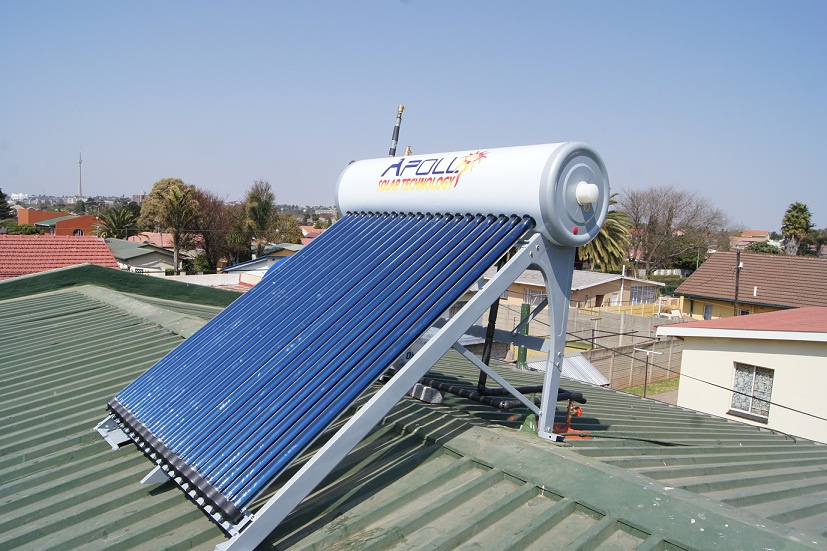

High Pressure Solar Water Heater Feature:
Highly efficient absorber of high performance with daily average efficiency over 50%
Start up quickly, heat pipe transfer the heat energy into the storage tank in one direction.
Withstand pressure of 6 bars, can be connected directly with city water.
No water inside the evacuated tubes, the solar water heater can still in service even with several tubes breakage.
Highly efficient insulation with polyurethane foam.
Simple structure, easy to assembly and install.
Can be used all year round in the cold climate.
Can be used together with auxiliary electric boost
Long service life, can be used over 15 years.
Solar Water Heater
Capacity: 100L 150L 200L 300L
Heat Pipe Vacuum Tube
Perfect combination of vacuum tube and heat pipe
Higher heat efficiency: Advanced heat transferring style of the heat pipe, excellent selective absorbent coating and perfect combination with vacuum heat preservation.
Wide applicable range: As the heat pipe has less heat preservation. It can be started quickly even on cloudy days and collect heat effectively. It can normally even at 30 degree. As there is no water in the tube. It can effectively prevent lowing of heat efficiency due to frost cracking or scaling.
East individual tube can work independently. And the whole machine can still work if individual tube is damaged. The service life of the heat pipe can be longer than 15 years.
The unique connection between the heat pipe and the vacuum tube can ensure both sealing and replacement glass vacuum tube.
Length 1800MM
Outer tube diameter 58MM
Inner tube diameter 47MM
Glass thickness 2.3 MM
Thermal expansion 3.3× 10 -6oc
Material Borosilicate Glass 3.3
Absorptive Coating Graded AI-N/AI
Absorptance >92%(AM1.5)
Remittance >8%(80oc)
Vacuum P<5× 10-3Pa
Stagnation Temperature >200oc
Maximum Strength 0.8 MPa
Jiaxing Diyi Solar Technology Co., Ltd located in Haining City, Zhejiang Province, in the East of Shanghai and west of Hangzhou with the convenient transportation, the total area 3000 square meters, Through 8 years' development, we have the annual output of 50, 000 Units solar water heaters. Also we have successfully entered Europe, Africa, South Korea, Australia and Southeast Asia with our unique advantages in stable quality and competitive price.
As a manufacturer owning the most advanced manufacturing equipment for producing vacuum tube and solar products, And we have got the poweful certificates, such as ISO9001: 2000 certificate, SABS, Solar Keymark and SRCC. We are specialized in vacuum tubes, solar collectors and solar water heaters. Now our factory is in Haining City, Zhejiang Province which is for producing solar collector and solar water heater with our own brand-"DIYI".
Also we could produce specified products according to customers' designs or samples.
Meanwhile, as a manufacturer, from the initial tube source to final finished products, we exactly control our quality at every working procedure in order to supply the best quality for customers. We also have a good after-sales service system and can gain the feedback in time.
We warmly welcome both domestic and overseas clients to create the win-win cooperation, and we are looking forward to having opportunities to become your future supplier. Both OEM&ODM are acceptable, all your attention and supports will be highly appreciated.
