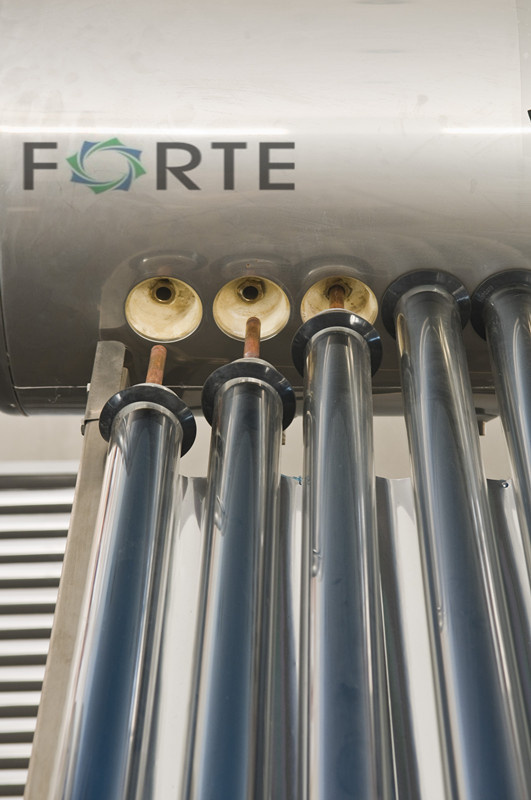

Compact Pressurized Solar Water Heater

Name: Compact Pressurized Solar Water Heater
Brand: ec-portal.com
SKU: 675850462
Availability: InStock
Rating: 4.6 (103 reviews)

Price:	US $ 260/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	2/Piece
Pay Type:	L/C,T/T,Paypal,Money Gram,Western Union

Send Inquiry

Showroom Product Company Profile

Prod Model:	FT-HP-SS-470-58/1800
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Inner Tank 1.2mm SUS 304 2b:	Working Pressure 9 Bar
Maximum Pressure 9 Bar:	Warranty 7 Years
Life 15 Years:	Anti-Freeze -25.C
No Water In Tubes:	Compact System
Structure:	Compact Type
Pressure:	Pressurized
Interior Material:	Stainless Steel
Collector Components:	Glass Vacuum Tube
Certification:	CCC

Product Description

Inner tank: 1.2-1.8mm SUS304 2B food grade stainless steel with automatic non gap welding
Outer tank: 0.4mm SUS304 2B food grade stainless steel or 0.5mm galvanized steel
Frame: 1.2mm stainless steel or 1.5mm galvanized steel
Tube: High birosiligate glass tube with AL-N-AL coating or AL-N-AL-SS-CU coating
Copper heatpipe: 0.6mm thickneess with anti-freeze treatment
Normal working pressure: 6 bar
Maximum working pressure: 9 bar
MODEL Tank capacity Tube quantity Absorber area
(m2) Loading quantity 20GP/40HQ
(set)
FT-SS-CP-470-58/1800-10-C 85 10 0.82 60/140
FT-SS-CP-470-58/1800-12-C 100 12 0.98 55/130
FT-SS-CP-470-58/1800-18-C 150 18 1.46 41/95
FT-SS-CP-470-58/1800-20-C 167 20 1.62 37/86
FT-SS-CP-470-58/1800-24-C 200 24 1.96 32/74
FT-SS-CP-470-58/1800-30-C 250 30 2.47 25/58
Model Explanation:
FT short for Forte, our brand name
SS Short for stainless steel, CS short for color steel
LP short for low pressure
500 means the outer tank diameter is 500mm
58/2000 means the vacuum tube diameter is 58mm and tube length is 2000mm, the tubes can be choosen from normal AL-N-AL tubes or AL-N-AL-CU-SS three target tubes

DEL	Tank capacity	Tube quantity	Absorber area (m 2 )	Loading quantity 20GP/40HQ (set)
FT-SS-HP-470-58/1800-10-C	85	10	0.82	60/140
FT-SS-CP-470-58/1800-12-C	100	12	0.98	55/130
FT-SS-CP-470-58/1800-18-C	150	18	1.46	41/95
FT-SS-CP-470-58/1800-20-C	167	20	1.62	37/86
FT-SS-CP-470-58/1800-24-C	200	24	1.96	32/74
FT-SS-CP-470-58/1800-30-C	250	30	2.47	25/58

OUR MISSION:

SUPPLY YOU MOST COMPORTABLE & ECONOMIC&INTELLIGENT SOLUTION FOR DOMESTIC AND PROJECT WATER HEATING

OUTLINE:

The Forte Group is one of the leading international manufacturers of water heating systems. Founded in 2003, our company maintains a staff of over 120 employees and generates roughly 50 millions USD in annual turnover.

Forte is an internationally orientated company. With 90% of total Forte value exports to Germany, Italy, Spain, Mexico, Vietnam, Mauritius, Korea and other 80 countries.

Comprehensive product range for all types and areas of application

Whether for single or two-family homes, large residential complexes, commercial and industrial buildings or local heating networks, Forte has the right system solution with Solar heating

Forte's comprehensive product portfolio includes single domestic vacuum tube and flat plate solar water heaters from 100L to 300L, 500L and even 750L and 1000L, but also big project systems for schools hospitals and swimming pools

Comprehensive range of services

Forte offers its trade partners a comprehensive range of services to considerably simplify their daily work. The diverse range includes assistance from its Technical Service department, demand-driven software for instance for planning heating systems, support in the form of advertising and sales promotions, and a user-friendly information and ordering system available around the clock on the internet.

Our Advantage

Technical support: Experience of over 10 years experience in designing, researching, producing and exporting solar water heating systems, always supply you customer oriented solutions.

QC&QA

All main parts 100% checked and tested before delivery

Every water tnk, manifold loop, were strictly tested against leakage and corrosion

After sale service

Upon delivery, main parts will carry a trackable number, customer only need to report convincable proofs so that we will carry the service

Guarantee priod:

All the tanks we delivered will have 7 years guarantee period

OUR ADVANTAGE

TECHNICAL SUPPORT: EXPERIENCE OF MORE THAN 10 YEARS DESIGNING, RESEARCHING, PRODUCING AND EXPORTING OF WATER HEATING SYSTEMS, ALWAYS SUPPLY YOU CUSTOMER ORIENTED HEATING SOLUTIONS

QC & QA

ALL THE MAIN PARTS 100% TESTED AND CHECKED.

EVERY WATER TANK, MANIFOLD LOOP, WERE STRICTLY TESTED AGAINST LEAKAGE AND CORROSION

AFTER SALE SERVICE

UPON DELIVERY, MAIN PARTS WILL CARRY A TRACKABLE NUMBER, CUSTOMER ONLY NEED TO REPORT CONVINCIBLE PROOFS SO THAT WE WILL CARRY THE SERVICE

GARANTEE PERIOD:

ALL THE TANKS WILL HAVE A 7 YEARS GARANTEE PERIOD

We would be pleased to work with all the distributers on a win-win base to grow up together.

With Forte Energy, we go for further journey!
