| Prod Model: |
SN-470-H58/1800-20-C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Heat Preservation Layer: |
Polyurethane 55mm |
| Warranty: |
Whole Set 5 Years |
| Producing Time: |
1x20gp or 1x40gp Container Within 7-10days |
| Insulation Layer: |
Polyurethane |
| Working Pressure: |
0mpa |
| Delivery: |
by Ship |
| Usage: |
Bathroom or Small Project |
| Installation: |
Freestanding |
| Connection Type: |
Direct-Plug |
| Min.Order Quantity: |
1 Set |
| Structure: |
Compact Type |
| Pressure: |
Pressurized |
| Interior Material: |
Stainless Steel |
| Collector Components: |
Glass Vacuum Tube |
| Certification: |
CE |
Product Description

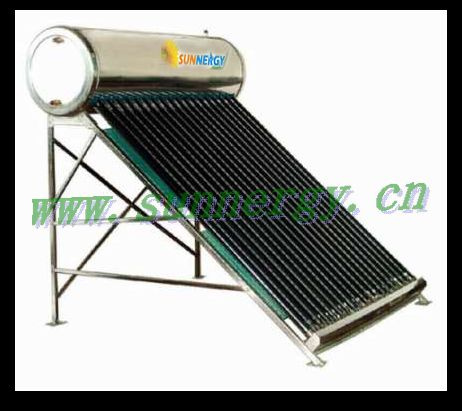

Compact pressurized solar water heater(stainless steel)
Selection Well
1. Sectional metal heat-pipe vacuum tube (size: OD58mm*1800mm); No water in vacuum tube, no water dirty, prevent freezing.
2. "stainless steel tank or porcelain tank": Working Pressure: < = 0.6Mpa ( the steel plate and macromolecule material connection very well)
3. Insulation: Polyurethane integral foaming with 55mm thickness
4. Material of outer tank: Stainless steel or aluminizing zinc plate with 0.35mm thickness compact pressure solar water heater
5. Material of support: Stainless Steel Profiled Bar or Zinc plated stand parts with 1.2mm thickness
6. Using the electric heater system, it can be lasting used in the cloudly, rainy and snowy days.
|
Model |
Dia. of tube (mm) |
Length of tube (mm) |
Quantity of heat-pipe with vacuum tube (pcs) |
Capacity (L) |
For people (No.) |
Loading 20"/40" (pcs) |
|
1800/58-15-CAP |
Ø 58 |
1800 |
15 |
120 |
2-3 |
46/92 |
|
1800/58-18-CAP |
Ø 58 |
1800 |
18 |
145 |
3-5 |
38/76 |
|
1800/58-20-CAP |
Ø 58 |
1800 |
20 |
165 |
4-5 |
35/70 |
1800/58-
24-CAP |
Ø 58 |
1800 |
24 |
200 |
4-6 |
30/60 |
Changzhou Sunnergy Energy Technology Co., Ltd. is specially engaged in the research, development, production and sale of solar water heaters, solar collectors, solar light and wind generator, etc. Related energy products.
We closely follow the trends of the international market, relying on our superior talent and scientific research of our own. Our products have been upgraded continuously and we always carry out the ISO9001: 2000 international quality system in production. Moreover, our enterprise owns advanced production and inspection equipment, employs a top level and quality production team, and operates a perfect after-sales service system. All products have scientific structure, rational and exquisite technology. Because of our superior products and perfect after-sales service, our products are exported to overseas countries and regions such as Mexico, USA, Canada, Turkey, Australia, Germany, UK, France, Portugal, Hungary, Romania, Malta, Syria, New Zealand, Sweden, South Africa, Spain, UAE, Viet Nam, etc. Over 50 countries, and have found favor in the eyes of customers.
Our enterprise will take quality as its base and customer satisfaction as its aim, continuously developing new products and styles, and making full use of internationally advanced solar production technology to increase the color of your life.
