| Prod Model: |
Non-pressure |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Structure: |
Compact Type |
Product Description

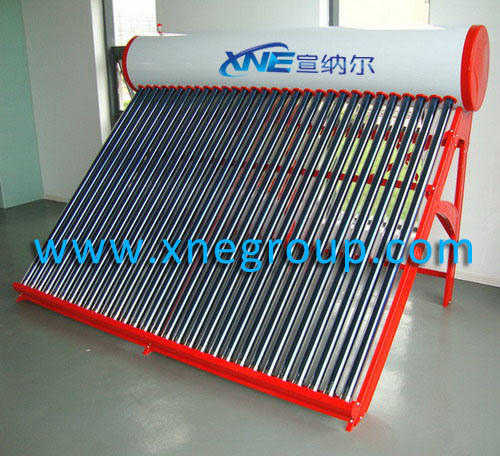

Solar water geyser, Solar water heater (Non-pressure), Solar Water Heater:
We are a professional enamel hot water tank / solar water heater manufacturer with ISO and CE certificate in Changzhou, China.
Specifications:
1. Inner tank:
1.1 Materials: Stainlesss steel or Enameled steel
1.2 Welding procedure: Completely auto welding;
2. Outer tank
2.1 Materials: Galvanized steel 0.4mm
2.2 Production procedure: Sheet are jointed-up after crimping;
3. Insulation layer
3.1 Materials: Polyurethane, environmentally friendly
3.2 Procedure: Using CNC constant temperature, constant pressure quantitative foaming, curing processing, thick insulation layer, ensure the quality more close, well-balanced, insulation more abiding.
4. Supporting stand
4.1 Materials: Color steel, 1.5mm
4.2 Tilt degree: 30 degree, 45 degree
5. Evacuated tubes
5.1 Size: 58mm - 1800mm
5.2 Absorber coating: AL-ALN or SS-ALN-CU
6. Packing: Export standard Cartons
Please note: Inner tank of NB-series is stainless steel SUS304, Inner tank of NC-series is enamel steel.
|
Model |
Aperture
area (m2) |
Tube No |
Capacity
(Liters) |
Qty. per 20’ / 40’
Container |
|
NB-120-58/1800-12 |
1.20 |
12 |
100 |
39/78 |
|
NB-130-58/1800-16 |
1.61 |
16 |
130 |
49/78 |
|
NB-145-58/1800-18 |
1.81 |
18 |
145 |
42/84 |
|
NB-165-58/1800-20 |
2.01 |
20 |
165 |
38/76 |
|
NB-200-58/1800-24 |
2.41 |
24 |
200 |
33/66 |
|
NB-240-58/1800-30 |
3.01 |
30 |
240 |
27/54 |
|
NC-100-58/1800-12 |
1.21 |
12 |
100 |
58/116 |
|
NC-130-58/1800-16 |
1.61 |
16 |
130 |
49/78 |
|
NC-145-58/1800-18 |
1.81 |
18 |
145 |
42/84 |
|
NC-165-58/1800-20 |
2.01 |
20 |
165 |
38/76 |
|
NC-200-58/1800-24 |
2.41 |
24 |
200 |
33/66 |
Changzhou XNE Group is a leading manufacturer with the research and application of solar thermal products, which is specialized in Enamel Hot Water Storage Tanks, Solar Water Heaters, Solar Collectors, Flat Plate Collectors with the most advanced facilities and qualified workers. We are located in Changzhou city nearby Shanghai and cover an area of 32, 000 square meters. We have passed the approvals of Solar Keymark, WaterMark, IEC 60335, CB, ISO9001, ISO14001, CE, and SGS inspection. Our products have been exported to over 80 countries in the past years.
We have been engaged in the solar thermal products for many years. With our scientific research unit's cooperative development with Nanjing Aerospace University, our new generation solar water heater with blue color - titanium gold tank has been published. Using the seamless enamel technology, it has high-tech digital design. It also has such merits as strong and compression-resistant outside, with new craft and new material. Simultaneously we have also solved the problems which have puzzled the domestic and foreign experts. We take the quality as a foundation, take the service as a core, pays attention to the detail as the key point and take the standard service as the guarantee. With advanced science and technology, we have set up the domestic first-class enterprise image and the international well-known brand image. Our products are popular in the European, American, and Southeast Asian markets, and have won domestic and foreign user communities' favor and high praise.
