| Prod Model: |
DIYI-NP01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
SABS |
| Application: |
Water Heater |
| Pipe Material: |
Glass |
Product Description

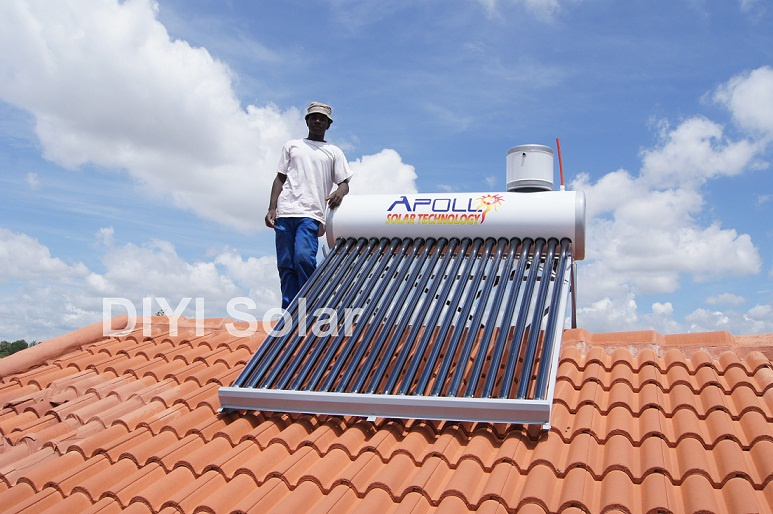

China compact non pressure solar water heater
Characteristics:
This model is one of the most favorite on the international market. It was scientifically and specially designed, is easy to install and operate. The important point is solar geyser can feed water automatically and ensure the outlet water as stable temperature, solar geyser will always provide you hot water.
Technical Parameters:
Inner tank: SUS 304-2B/0.41mm
Outer tank: Galvanized steel/0.41mm
Insulation: High density polyurethane foam 50mm
Vacuum tube: 58*1800mm
AL-N-AL coating
Bracket: Galvanized steel 1.5mm
0-50 degree
Accessories: UV stablilized high temperature silicon
Capacity: 150L 180L 200L 250L 300L
|
Type |
Area(M 2 ) |
Vacuum tube |
Volume(L) |
GrossWeight (KG) |
20GP/40GP/40HQ Loading Qty(sets) |
|
Φ(mm) |
Length(mm) |
Qty(pcs) |
|
DIYI-NP01-15 |
1.979 |
58 |
1800 |
15 |
150 |
78 |
53/109/130 |
|
DIYI-NP01-18 |
2.382 |
58 |
1800 |
18 |
180 |
85 |
48/93/112 |
|
DIYI-NP01-20 |
2.651 |
58 |
1800 |
20 |
200 |
94 |
40/82/98 |
|
DIYI-NP01-25 |
3.189 |
58 |
1800 |
25 |
250 |
97 |
30/64/75 |
|
DIYI-NP01-30 |
3.995 |
58 |
1800 |
30 |
300 |
112 |
25/52/62 |
Jiaxing Diyi Solar Technology Co., Ltd located in Haining City, Zhejiang Province, in the East of Shanghai and west of Hangzhou with the convenient transportation, the total area 3000 square meters, Through 8 years' development, we have the annual output of 50, 000 Units solar water heaters. Also we have successfully entered Europe, Africa, South Korea, Australia and Southeast Asia with our unique advantages in stable quality and competitive price.
As a manufacturer owning the most advanced manufacturing equipment for producing vacuum tube and solar products, And we have got the poweful certificates, such as ISO9001: 2000 certificate, SABS, Solar Keymark and SRCC. We are specialized in vacuum tubes, solar collectors and solar water heaters. Now our factory is in Haining City, Zhejiang Province which is for producing solar collector and solar water heater with our own brand-"DIYI".
Also we could produce specified products according to customers' designs or samples.
Meanwhile, as a manufacturer, from the initial tube source to final finished products, we exactly control our quality at every working procedure in order to supply the best quality for customers. We also have a good after-sales service system and can gain the feedback in time.
We warmly welcome both domestic and overseas clients to create the win-win cooperation, and we are looking forward to having opportunities to become your future supplier. Both OEM&ODM are acceptable, all your attention and supports will be highly appreciated.
