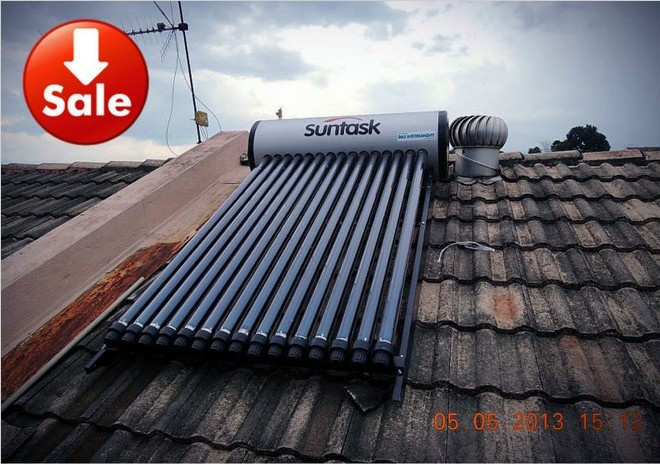

Compact High Pressure Solar Water Heater
Price: |
US $ 319SET |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1SET |
Pay Type: |
L/C,T/T,Western Union |
Prod Model: |
STH-200 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Inner Tank Material And Thickness: |
Stainless Steel 304 or Ss 316 |
Outer Tank Material And Thickness: |
PVDF 0.4mm Good at Anti Corrosion Ss |
Insulation Material And Thickness: |
High Density Polyurethane Foam with 50mm |
Frame: |
Galvanized Steel with 1.5mm |
T/P Valve: |
6bar /99centigrade Degree |
Working Pressure: |
6bar |
Assistant Function: |
Electric Heater |
Lifetime: |
More Than 15years |
Warranty: |
Five Years |
Capacity: |
150L,200,300L |
Collector Components: |
Glass Vacuum Tube |
Pressure: |
Pressurized |
Structure: |
Compact Type |
Interior Material: |
Stainless Steel |
Certification: |
En12976,Solar Keymark |
Composition: |
Tank Insulation |
Product Description
New Integrated Pressurized solar water heater: STH with stainless steel 800 for blind tube
For our compact pressurized model STH we have special design: we use stainless steel 800 material for blind tube instead of copper caecus tube , because for copper blind pipe after some period with the high temperature and high pressure, or in the water quality inferiority area, it will face corrosion and will happen blind pipe perforation phenomenon or blind pipe leakage. This new blind pipe is composed of 0.9 mm stainless steel 800 stamping with the red copper gasket.
Key Specification
1. Vacuum tube: super conducted heat pipe;
2. Insulation tank: 316 stainless steel pressurized inner tank;
3. Working pressure: 7bar;
4. Working principle: direct working withstand pressure;
5. Frame: slope and flat roof multifunction;
6. Assistant function: electric heater;
7. Include magenisum bar;
8. Capacity: 150L, 200L, 300L.
Toppest efficiency and best performance in china
Lifetime:15years
Deliverly time:10-15days
24 hours on line service
NEW STRUCTURE ADVANTAGES:

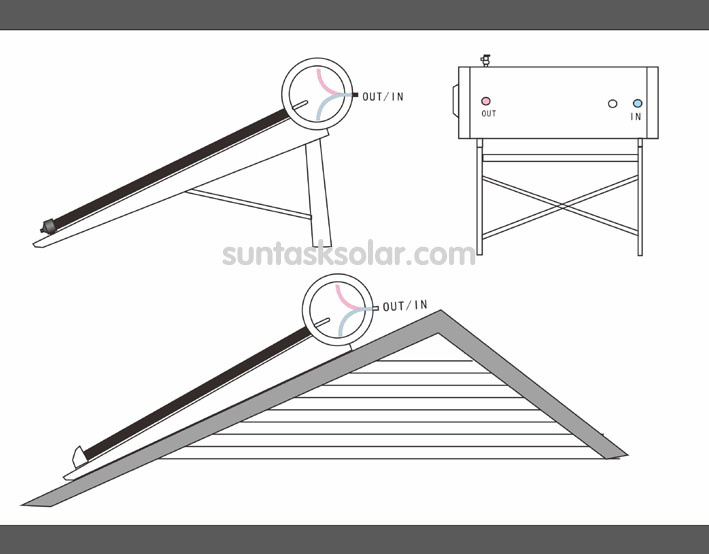

1. Slope roof and flat roof avaliable.
2. Inlet and Outlet hole at the back of the tank,any angel of roof is suitable, so it will more convenient for customer install on the slope roof;
3. Electric heater on the tank cover(side)
Model No: STH-150L; STH-200L; STH-300LModel | L*W*H mm | heat pipe vacuum tube mm*pcs | CPC | tube distance | tank capacityL | socket | inner tank | frame | contanier loading 20ft/40HQ sets | Net/gross weight(kg) |
A9H8 | 1080*1987*1200 | 58*1800*8pcs | include | 110mm | 100 | 316L | 316L | slope or flat roof | 64/159 | 59 |
A9H10 | 1300*1987*1200 | 58*1800*10pcs | include | 110mm | 120 | 316L | 316L | slope or flat roof | 55/135 | 65 |
A9H12 | 1520*1987*1200 | 58*1800*12pcs | include | 110mm | 150 | 316L | 316L | slope or flat roof | 48/118 | 73 |
A9H15 | 1850*1987*1200 | 58*1800*15pcs | include | 110mm | 200 | 316L | 316L | slope or flat roof | 40/99 | 89 |
A9H20 | 2400*1987*1200 | 58*1800*20pcs | include | 110mm | 300 | 316L | 316L | slope or flat roof | 30/75 | 115 |
STH15 | 1200*1950*1220 | 58*1800*15pcs | no | 75mm | 150 | 316L | 304 | slope or flat roof | 50/120 | 85 |
STH20 | 1575*1950*1220 | 58*1800*20pcs | no | 75mm | 200 | 316L | 304 | slope or flat roof | 38/91 | 100 |
STH30 | 2325*1950*1220 | 58*1800*30pcs | no | 75mm | 300 | 416L | 304 | slope or flat roof | 26/64 | 150 |
Zhejiang Shentai Solar Energy Co., Ltd. is positive can the industry limited company be a specialized solar energy application technology, the development and the research, the product production and the sales industrial production enterprise, is (Hong Kong) the international limited company is authorized after the Shen tai solar energy industry Co., Ltd too group, is authorized the production solar energy product in mainland China only 11 the enterprise, has the domestic advanced solarpowered water heater automatically to put on makeup exiles to a far away place the waterline.
The specialized environmental protection and renewable energy expert consultant conducted the groundbreaking thorough research in view of the solar-powered water heater, the development production "the Shen tai solar energy industry Co., Ltd too" the series home use solar-powered water heater, the export model solar-powered water heater, the solar energy central hot water system, has divided series and so on writing style solar energy Product. Takes the lead in the same profession through the ISO9001 international quality system authentication, the China performance test association to authenticate, the national compulsory CCC authentication, Leaves Mouth CE, CB authentication. Among "the Shen tai solar energy industry Co., Ltd too" the solar-powered water heater technology in 2003 is evaluated the national science and technology technology achievement progress second prize and the country sends The bright patent firstaward, and exports Germany, South Africa, Spain, South Korea, and so on more than 20 countries. The Shen tai solar energy industry Co., Ltd too company deeply believed that, wins the user long-term trust the key is the excellent quality and the consummation service, to each set of products which leaves the plant all pass through the extremely related multichannel working procedure examination, guarantees our ultra customer expectation higher quality the performance. The god too but will be unremitting for the global new energy development diligently! Source in nature, global sharing!
The product technology is enterprise's core competitive power. The Shen tai solar energy industry Co., Ltd too person modest is practical, both abundantly picks in the technology length of from the family, and carries on the innovation unceasingly, the introduction all from Moves the profession first-class equipment, depends on the international advanced solar energy specialized development facility, and established with the overseas senior expert has been widespread but the thorough cooperationPositively pays attention to, the introduction and the absorption world advanced technology, take the market as the standpoint, thus becomes the new energy profession fashion tidal current eagerly anticipating.
