| Prod Model: |
IT15T-R4W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Condition: |
New |
| Ice Shape: |
Tube Ice |
Product Description

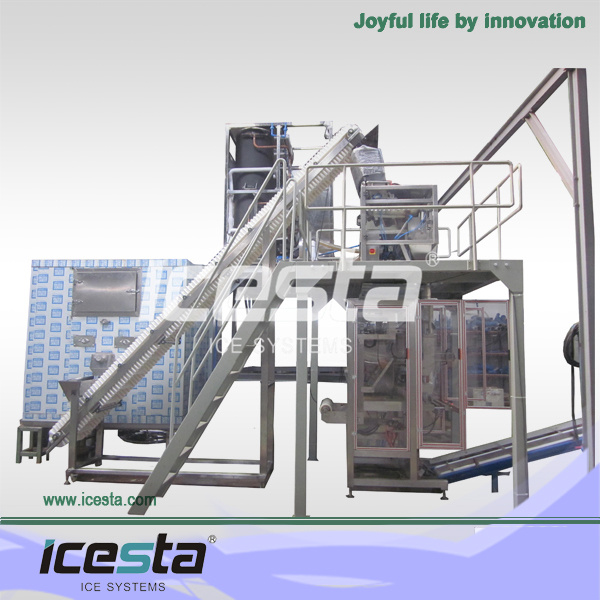

ICESTA Tube ice making machine (plant)
ICESTA innovative 1-80ton/hrs series tube ice machine
Mainly apply for human consumption such as freeze drinks, mix wines, cool food stuffs, and industrial sphere like chemical cooling, food processing, fisheries, poultry-processing, meat plants etc.
TOP-Quality Ice Making Evaporator(Drum)
*UNIQUE Strict ICESTA quality control system (ERP SYSTEM controlled)
*Delicate welding technics with X-ray. / Never leak
*SS 304 (stainless steel) Ice making drum (generator)
*All the material meet the HACCP request.
*Stainless steel cutters.
*Energy-efficient & high-sufficiency for ice production
----With the unique water distribution pan and air mouth, pure water evenly flows to the tube wall of the evaporator spirally, which improves the efficiency of heat transfer.
----As soon as ice off, the water of low temp. Is using for ice-making, which saving energy & increasing the drum volume of production of ice
----Air pressure control excludes the risk of rupture of the evaporator drum...
BITZER Refrigeration System
*Superb Stability and reliability, long use life.
Advanced workmanship and new technology makes high quality tube ice machine, you can always trust on. Rugged, heavy-duty design offers years of trouble-free operation.
*Energy-efficient and cost saving
The elaborately designed and equipped ice tubers offers a smooth operation, with high efficiency to fulfill the energy-saving.
PATENTED H-M Control System
Unique Vivid H-M Interactive control system Give use access to the automatic electrical system which performs sequences for freezing and thawing precisely and dependably then makes great convenience to the customer to operate the machine and settle the trouble.
* All the running status playing live in touch-screen, convenient as your FAMILY air-conditioning.
*Perfect failure & trouble-shooting querying system with red warning signal flicker if any failure occurred.
*Stop-time could be set at your will.
*The thickness of the tube ice could be adjustable with setting the icing time.
|
Model |
IT15T-R2W |
|
Daily capacity(T/24h) |
15t/24h |
|
Standard tube ice size(diameter) |
28 |
|
Refrigeration capacity(KW) |
85 |
|
Total power (KW) |
43.25 |
|
Compressor input (KW) |
37.5 |
|
Cutter motor Power (KW) |
0.75 |
|
Water pump power (KW) |
0.75 |
|
Air-cooled Condenser power (KW) |
3.7 |
|
Power Supply |
3P/380V/50Hz |
|
Water Pressure |
0.1Mp - 0.5Mpa |
|
Refrigerant |
R22 \ R404 |
|
Water Pipe |
3/4" |
|
Weight |
3750KG |
|
Dimensions (mm) |
2600 * 1500 * 4100 |
|
Outdoor cooling power size(mm) |
1880 *2120 |
|
Cooling Tower operating Weight(KG) |
975 |
Shenzhen Brother Ice systems Co., Ltd (ICESTA for short) located in Shenzhen, China. It is a professional manufacturer and exporter who specializes in designing and supplying innovative ice solutions worldwide with its own product ICESTA ice machines.
Owned senior professional refrigerating team, modern operating conception, ordered efficient management model, and global strategy, ICESTA has found a substantial base to tend towards the globe market, then play an important role in the fresh keeping and cooling in the field as aquatic food & meat processing, ocean-going fishing, concrete construction project, large supermarket and chain stores, dye chemical industry, mining and medical facilities, etc.
In line with our customer-oriented philosophy, ICESTA management is actively aligning its business structure to well meet customer needs with a wide range of products, excellent quality as well as credible service. Maintained strong focus as a professional exporter, ICESTA will strive itself to create maximum value for our esteemed clients.
With the spirit of "Revolution, Challenge, reputation, Improvement", we are supporting plenty of worldwide companies with OEM/ODM service. Welcome to contact with us, we will provide you sincere service and most reasonable price.
