| Prod Model: |
YN-350P |
| Markets: |
South America,Africa,Oceania,Mid East,Western Europe |
| Item: |
Flowing Mode Ice Cube Maker |
| Energy Consumption: |
6.8kwh/24h |
| Net Weight: |
75kg |
| Dimension(Wxdxh): |
560X800X1608mm |
| 40' Stuffing: |
120 |
| Ice Making Mode: |
Water Flowing |
| Shell Material: |
Stainless Steel AISI 304 |
| Ice Capacity: |
350pound/160kg/Day |
| Storage Capacity: |
240pound/110kg |
| Control: |
Electric |
| Structure: |
Integral Type |
| Material: |
Stainless Steel |
| Application: |
Commercial |
| Condensing Mode: |
Water-Cooled |
| Filtering Device: |
With Filtering Device |
| Ice Shape: |
Cube |
| Power: |
830 |
Product Description

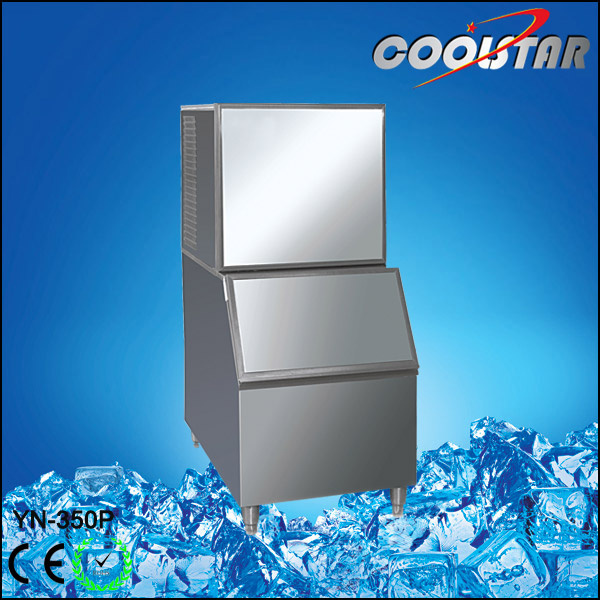

Commercial Water flowing mode ice machine Ice Cube Maker
Features:
* Full stainless steel AISI 304 material

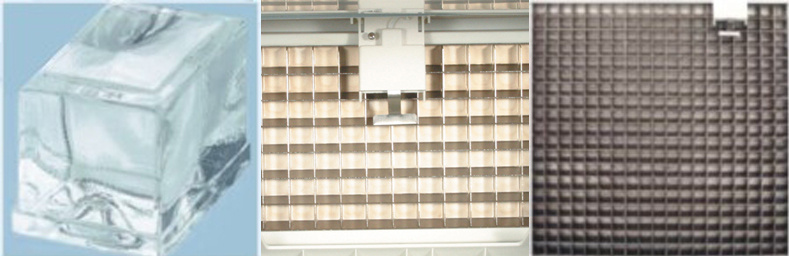

* Soaking water mode ice making,transparent bullet shape ice
* Full automatic running,with overloading,water shortage and ice storage full protection
* Air intake and out for option,front and back,or cabinet side
* Flake ice machine with large output, but low energy consumption
Specifications:
| Model | Capacity (Pound/kg/day) | Storage Capacity (Pound/kg) | Power Supply (W) | Power Consumption (Kwh/24H) | Dimension (WxDxH) (mm) | N.W (kg) | 40' Stuffing (pcs) | Approval |
| AX-100 | 100Kg | 25Kg | 720 | 5.76 | 570x670x960 | 75 | 160 | CE,ROHS |
| YN-350P | 350/160 | 240/110 | 830 | 6.8 | 560x800x1608 | 75 | 120 |
| YN-500P | 500/227 | 440/200 | 1180 | 7.8 | 700x850x1618 | 97 | 120 |
| YN-700P | 700/318 | 440/200 | 1530 | 30 | 700x850x1678 | 113 | 44 |
| YN-1000P | 1000/454 | 440/200 | 2060 | 50 | 700x850x1738 | 141 | 35 |
| YN-1500P | 1500/681 | 1100/500 | 2860 | 70 | 1220x850x1963 | 196 | 27 |
| YN-2000P | 2000/908 | 1100/500 | 3950 | 100 | 1220x850x2023 | 217 | 27 |
FAQ
1. MOQ: 20pcs for each model
2. Payment: 30% deposit after confirmation of order, 70% against Bill of lading after shipment, We also accept L/C, trade assurance, Paypal etc.
3. Warranty: All products are guaranteed for 1 year time,and compressors 3 years.
4. Spare parts: Coolstar provide 1% spare parts free of charge. Additional spare parts are supplied all year long.
5.Sample order : Coolstar is a bulk articles supplier, normally ship the order in container load, we reject 1 pc order. Coolstar normally doesn't accept sampe order, but when customer can show the potential of bulk order, we specially accept sample order, at 10% extra handling charge.
6.Ice capacity tolerance:Ice making capacity fluctuates according to water temperature and ambient temperatue, our capacity figure is marked under 15C ambient temperature, and 10C water temperature
7.What to do if the machine doesn't make ice: You can check the indicator lamp, whether it's water shortage,ice storage full etc, and process accordingly.
Coolstar is a Shanghai, China based company dedicated to cooling appliance production and distribution. With decades of experience in refrigerating industry, we have become the leading supplier of commercial coolers for demonstrative purpose in China. Our product items have been successfully sold to Europe, North and South America, Australia, Japan, Africa and some Middle Eastern and Southeast Asian countries.
With manufacturing facilities in East China, we are capable to provide the cooling equipments ranging from four side glass showcases to single glass coolers and freezers, from wine coolers to chest freezers, and from kitchen platforms and upright refrigerators to ice cube makers. Most of our products have already got the approvals of CE, GS, and RoHS, and some have held the ETL and ETL Sanitation approvals.
Insisting on the attitude to produce the excellent quality, holding many years experience of the production and development of freezing products, and depending on the professional manufacture standard and innovative spirit, we provide the superior refrigerating and freezing units for the worldwide customers. Because of the outstanding quality and professional experience, we bring more economic value to all the global customers.
For many years, we have had the honor to serve the most prestigious brand owners of beverage, food, and catering industries. Our secret is to consider our clients as "Business Partners". That is why we are the first choice of companies which seek for quality products.
Another section of Coolstar business is aluminium jon boat production. Owning strong technology, complete series of equipment, excellent craftsmanship, we produce 10' to 21' jon boat, with beneath integrated type, and bottom keel welded type, U type and V type two series. All our jon boats are sold to Japan, Australia, and Europe, U. S. A etc, with annual turnover amounting 1000PCS.
The new series aluminium jon boat utilize foreign boatbuilding craftsmanship, and new material, the hull is all with marine aluminium 5052H34---aluminium and magnesium alloy, which is featured as anti-corrosion and rust. The boat owns characteristics of high strength, light duty, corrosion and rust-free, long durability, and easy maintenance, environment-friendly, etc. It is suitable for sailing in river, lake and near seaside, so as to be widely used in fishing, and tourism industry. Coolstar aluminium boats are CE approved in Europe.
We look forward to the opportunity to work for the long-term business, with more than 200 qualified staff members, professional R&D, high quality products and technological know-how for providing the best solutions for cooling, freezing and boating industry.
