| Prod Model: |
VP-C30 / VP-C60 / VP -C120 / VP-C240 / VP-C350 |
Product Description

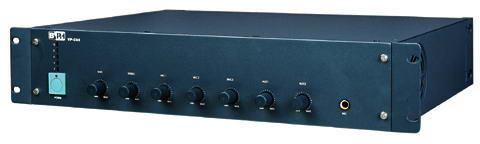

VP-C30 / VP-C60 / VP -C120 / VP-C240 / VP-C350
Combined PA power amplifier
BSPH series of public address Combined amplifiers are available at power ratings from 30W to 350W.
Priority musting is achieved via MIC1 for overriding BGM for paging and emergency notification. Mute depth is adjustable. Individual gain controls are provided for MIC and AUX inputs, bass and treble controls are provided for overall tone control. 4 /6 ohms, 70V and 100V speaker outputs are provided, extensive protection against short-circuit, clipping and over-temerature.
Their main features as follows:
* Three MIC inputs (two line inputs to mix with MIC2 and MIC3)
* Two AUX line inputs
* Two EMC audio signal priority inputs
* MIC1 has the highest priority over all inputs.
* Individual gain controls for MIC and AUX.
* Bass and treble tone controls
* 4 /6 ohms, 70V and 100V speaker outputs
* Optional rack-mount kit
| Model NO. | VP-C30 | VP-C60 | VP -C120 | VP-C240 | VP-C350 |
| Rated power | 30W | 60W | 120W | 240W | 350W |
| Power consuption | 60W | 100W | 200W | 400W | 500W |
| Speaker Output | 4 /6 ohms, 70V and 100V speaker outputs |
| Line output | 600 ohms1V (odb) |
| Input | MIC1, 2, 3: 600 ohms 2.0mV; AUX1, 2: 15Kohms 150mV unbalanced |
| THD | < 0.1% at 1KHZ, 1/3 rated power |
| S/N ratio | MIC1, 2, 3: 66db; AUX 1, 2: 70db |
| Controls | Individual gain controls, bass: +10db at 100HZ; Treble: +10db at 15KHZ |
| Protection | AC fuse, over-current, over-load, over-temperature |
| Muting function | MIC1 overrides other input signals with 0-30 db attenuation |
| Power requirements | AC 220V 10A, 10 channels Total power output: 4.5kW |
| Working condition | Temperature: -10—55ºCrelative humidity: < 95% |
| Frequency response | 100HZ-20KHZ |
| Dismension | 485.6x364.5x88mm | 485.6x364.5x132mm |
| Finish | Panel: Steel plate, Black, frosted; Case: Steel plate, black. |
Foshan Langdu Intelligent Appliance Technology Co., Ltd. has been striving to be one of the leading international brand of Public Address Systems & Equipments since its establishment. Foshan Langdu Intelligent Appliance Technology Co., Ltd. has rich experience of 6 Years in the field of PA system. The aim of the company is to offer best designed, high-quality products at reasonable price. Advanced technology, careful selection of designs, component, and workmanship ensure reliable quality of BSPH products. Continuous research and innovative design push BSPH to continuous development.
In the last to summary up, BSPH is one of the leading Exporter & Manufacturer in China equipped with valued experience, expert in manufacturing goods as per international standard & demand, at most competitive rate/price.
BSPH products range cover almost all kinds of PA apparatus to meet all requirements for public address. OEM and ODM are welcome, the main BSPH products are listed below:
* SX-850 Large & Intelligent PA Management System
* SX-450 Typical & Intelligent PA Management System
* Intelligent PA system and Equipment
* Digital kindergarten PA Management System
* Digital School PA Management system
* Family Information PA Management System
* Shops and Office Management Central Centralized Control Platform
* School Management Central Centralized Control Platform
* Hotel Management Central Centralized Control Platform
* Urban Light Rail (Metro) PA Management System
