| Prod Model: |
jlf-CSP-150 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
150 Liters |
| Tube Qty: |
15 Heat Pipe Vacuum Tubes |
| Tube Size: |
58*1800 mm |
| Package: |
Cartons with Foam |
| Angle: |
27'-45' |
| Electric Heating: |
1500W or 2000W |
| Structure: |
Compact Type |
| Pressure: |
Pressurized |
| Interior Material: |
Stainless Steel |
| Collector Components: |
Glass Vacuum Tube |
| Composition: |
Collector |
| Certification: |
CCC |
| Max. Capacity: |
150L |

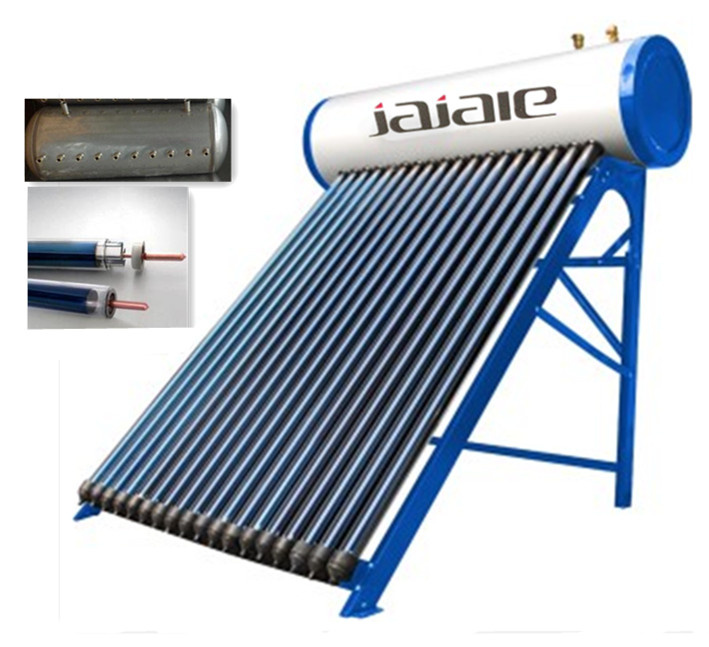

Product Description
Detailed:
Modle:jlf-CSP-15
| Description | pressure solar water heaters |
| Material of out tank | 0.4mm thickness color steel |
| Material of inner tank | Food grade1.5mm thickness SUS304 stainless steel |
| Tank insulating layer | 55mm 45kg/m³ high-density polyurethane foamed |
| Max pressure | 0.6 Mpa |
| Inlet and outlet hole | Male G 1/2,3/4 |
| Solar collector tube | 3.3 Borosilicate glass with N/Al coating |
| Thickness of glass tube | 1.6mm |
| Vacuum tube tightness | P≤0.005 Pa |
| Absorption | as=0.93-0.96 (AM1.5) |
| Emission ratio | εh=0.04-0.06 (80C±5C) |
| Idle sunning property parameters | Y=220~260m2.C/KW |
| Average heat loss coefficient | ULT=0.6~0.7W/(m2.C) |
| Bracket: | 1.5mm thickness Galvanized Steel |
| Structure of tank | 5 holes for air vent,water inlet and outlet, El. Heater and mag. rod |
| Fastening pieces | Made of stainless steel screw |
| Absorber area | 1.687 m² |
| Tube quantity | 58x1,800mmx15tube with heat pipe |
| Tank capacity | 150L |
Features:
1. Adopts the best conduction performance metal- heat pipe (copper)
2.Can be used all year round in the cold climate
3.High efficiency, rapid warming. Heat pipe in vacuum tube could transfer hot energy to cold water in pressurized solar water heater tank rapidly
4.The whole pressure of the system is up to 1.5kg/M2, the inlet could connect the tap water directly, the max pressure can be 0.6Mpa
5. No water in the tube, one tube broken don't influence the system working
6.The design for inner tank is reasonable and scientific, which could hold 100, 000 times fatigue test without any damage
7. Dual-purpose brackets for both flat and inclined roof
8.The system is pressurized,it keep a constant temperature of water in the tank, avoid the problem came from water level controller malfunction which could cause water flow out
