| Prod Model: |
BD-111 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
220V/380V |
| Place Of Origin: |
Shanghai |
| After-Sales Service Provided: |
Overseas Third-Party Support Available |
| Compressor Brand: |
Bitzer,Copeland,Maneurop,Hanbell |
| Condensing Type: |
Water Cooling/Air Cooling/Evaporative Cooling |
| Cold Room Door: |
Sliding Door,Hinged Door,Automatic Return Door |
| Inslulation Material: |
XPS |
| Weight: |
up to Different Model |
| Lead Time: |
20~30 Days |
| Warranty Period: |
1 Year |
| Certification: |
CCC |
| Condition: |
New |
| Temperature: |
-40~20 Degree |
| Size: |
All Available |
Product Description
Product Description:

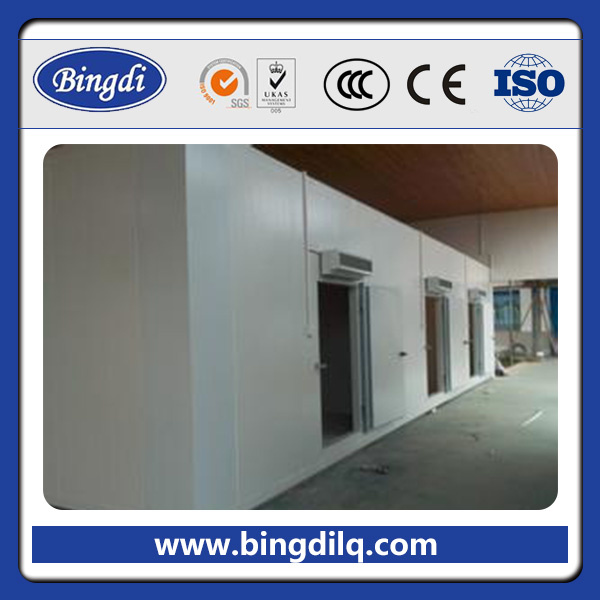

Modular Cold Room / Tunnel Freezer Room / CA Cold Storage/Combined Cold Room/Cold Storage Panel Sliding Door /Cold Room Storage/ Blast Freezer Room
Detailed Product Description
"Top-10 brands in China"
Bitzer Germany compressor
Dafoss Denmark controller
Features:
1. Temperature range: -40ºC~ + 20ºC are all available
2. Size: Customization
3. Functions: Fresh-keep, freezing, quick-freezing, fire-proof, explosion-proof, air-conditioning are all available
4. Good performance, low noise and high reliability
5. World renowned brand refrigeration accessories, guarantee long use cycle.
6. The automatic high precision digital controller is easy to operate with high efficiency.
7. Adjustable indoor temperature saves up to 30% electricity.
Classification:
Cold storage temperature: -5ºC ~ + 10ºC
Freezer storage temperature: -25ºC ~ - 18ºC
Quick-frozen storage temperature: -40ºC ~ - 18ºC
Constant temperature: Customer's request
Storage of produce: Customer's request
Components:
Condensing unit: Bitzer, Copeland, Maneurop, Fusheng , Hanbell
Evaporator: Meluck air cooler.
Insulation Panel: PU, EPS
Other accessories:World-famous brands, like Danfoss, Castle, Every Control,Siemens,LG
Cooling Type
Air Cooled Type |
Condenser Fan |
Water Cooled Type |
Water Cooled Condenser and Cooling Tower |
Evaporative Cooled Type |
Evaporative Condenser |
Room Size Type
Room Size |
Small |
Middle |
Big |
Volume Range |
<50m³ |
50m m³~300 m³ |
>300 m³ |
Temperature Table for Reference
Cold Storage Goods |
temperature range |
Processing Room |
10ºC |
Fruit, Vegetable, Dry food |
0ºC ~-5ºC |
Medicine, Cake, Pastry, Chemical Material |
0ºC ~-5ºC |
Ice Storage Room |
-5ºC ~-10ºC |
Fish, Meat Storage |
-18ºC~-25ºC |
Deep Freezer. |
-25ºC ~-35ºC |
Compressor Type and Condenser
Compressor Type |
Bitzer(Germany) |
Refcomp(italy) |
Copeland(US) |
Manurope(France) |
Condenser |
Air Cooled |
Water Cooled |
Evaporating |
|
Panels' Information
Office Foam Panel |
50mm thickness |
Processing Room 10ºC |
50mm/ 75mm PU |
5ºC |
75mm/ 100mm PU |
-18ºC |
100mm/ 150mm PU |
-25ºC / -35ºC |
150mm/200mm PU |
Panel Steel Cover |
SS, GI, aluminum etc |
Application Fields:
Biology, industry, military, food, florist, farming, medicine, logistics, hospitality, and food processing.
We will reply you as soon as possible once we get your demands on the following questions:
1. What are your goods putting inside?
2. What is the size of the cold room you need?
3. What is the temperature you want for the storage?
4. What is the electric voltage you use in your area?
We, Shanghai Bingdi Air Conditioner Co., Ltd, affiliated to Shanghai Meluck group which has four branches: Shanghai Meluck, Anhui Meluck, Zhejiang Bingfeng and Shanghai Bingdi. Shanghai Bingdi is a professional project contractor of cold room, cold storage, freezer room and blast freezer, including designing, manufacturing, sales, projects, installation, consulting and maintainence. We are the first company in China that provides a whole solution for the central kitchen. We are the largest agent for Bitzer compressor in China and the third largest in Asia.
In 2001, PHD Markus Schneider in Germany and PHD Andrew Moller in Danmark came to China and make a partnership with Mr Liufei and start our cold storage business. Since its establishment, our company has developed rapidly. We have passed the certificate of ISO9001: 2008, CE certificate and SGS report. We have served many companies home and abroad in more than eighty countries. So we can meet all the demands of clients.
We have 32 senior engineers to provide the technical support and a professional installation team of 230 people. We put a lot of emphasis on quality. With the philosophy of quality for development, service for promotion, we dedicated to becoming the first rate cold storage contractor in the world. Now we have become the best contractor for cold rooms except for the government-run corporation.
We welcome clients from home and abroad to visit our factory and talk about business. Adhering to the principle of mutually beneficial business relationship, we have built business relationship with clents in 86 countries through agent and ourselves. So we believe we are the right suplier you are looking for when it come to cold storage project.
