| Prod Model: |
CWF51-59 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Resistance: |
Variable Resistor |
| Type: |
Thermal Resistor |
| Function For Resistance: |
Protective Resistor |
| Application: |
Variety Fields |
| Quantity: |
as Required |
| Installation: |
as Required |
| Material: |
Metal Oxide |
| Package Type: |
Solder |
| Resistance Change Scale: |
Non-Linear |
| Shape: |
Customized |
| Brand: |
Tonze |
Product Description
· Special parameter could be made according to different requirement

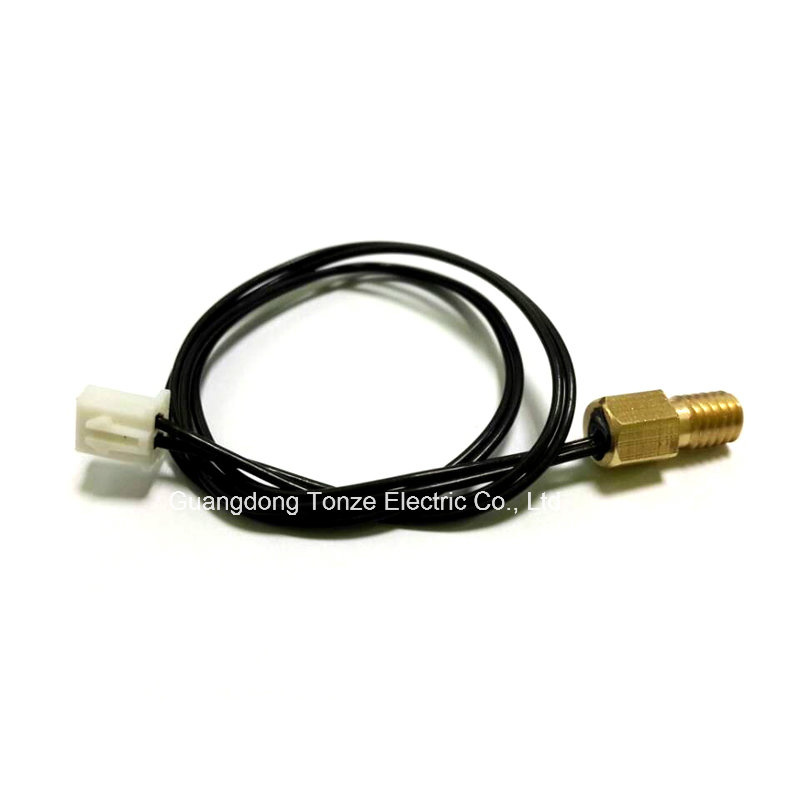

· High precision, reliable NTC Thermistor connected to different wire, coated with insulated, heat conductive and water resistant epoxy resin into desired shapes
· High precision of resistance and B value
· Good coherence and interchange ability
· Quick response and high delicacy
· Double packaging techniques adopted to ensure good insulation and sealing effect, high resistance to mechanical colliding and bending
· A variety of coating configuration and shell materials are available according to different usages
· Cable length could be tailored according to customers' requirement
Application:
Room heaters, freezers, drinking water dispenser, air warmers, dishwashers, disinfecting cabinets, washing machines, driers, air conditioners, refrigerators, water heaters, amplifier, medium-low-temperature drier cabinet, thermo tanks, unitary bathroom, medical apparatus and instruments, floor heating thermostat, soil temperature, water temperature and so on.
Specification:
· The range of resistance under the rated zero power (R25ºC): 0.1~1000KΩ
· The allowable tolerance of R25ºC: ±0.5%,±1%,±2%,±3%,±5%
· The range of B value (K): 3100~4500K
· The allowable tolerance of B value: ±0.5%,±1%,±2%,±3%,±5%
· The range of operating temperature: -30ºC ~ +150ºC
· Dissipation factor: ≥2.0mW/ºC (In Still Air)
· Thermal time constant: ≤30S (In Still Air)
· Encapsulated: A variety of shells
· Dimension: Customized
Established in 1996, Guangdong Tonze Electric is a professional and leading manufacturer specializing in high precision NTC THERMISTORS and TEMPERATURE SENSORS, as well as Medical and Home Electric Appliances. We are capable of making all kinds of specifications to meet your requirements and providing technical support.
We are an ISO9001 and ISO14001 certified company, covering an area of 39, 000sqm located in Shantou, China.
With excellent testing equipment, professional manufacturing technique, and perfect quality control system, we aim to serve customers with high product quality and honesty.
Trust in us for our 18 years experience serving the famous enterprises. Welcome to contact.
