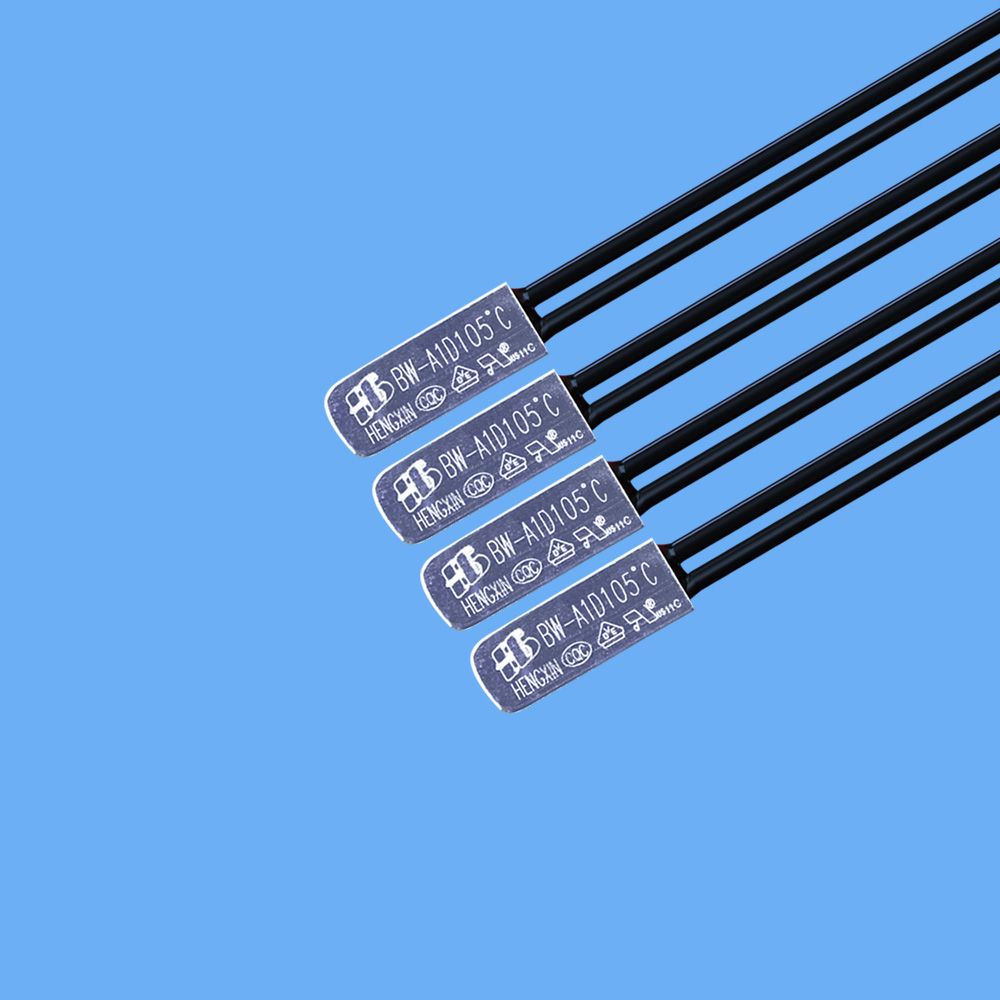

| Prod Model: |
BW-A1D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max Current: |
10A |
| Max Voltage: |
250V |
| Plastic Shell: |
or Iron Shell |
| Lead Length: |
70mm |
| Shell Size: |
L 20mm*H7.2mm*3.7mm |
| Usage: |
Motor, Transformer, Microwave Ovens |
| Bimetal Component: |
Instant Action |
| Operation: |
Electric Type |
| Installation: |
Fixed |
| Speed: |
High-Speed Circuit Breaker |
| Type: |
Circuit Breaker |
| Breaking Capacity: |
High Voltage Circuit Breakers |
Product Description
BW-A serial universal and enhanced protectors with large plastic casing are widely used in motor of industry, electrical household appliance, and electric equipment including humidifier, electrical dryer and ballast to avoid abnormal operation caused by overcurrent and overtemperature. The products provide effective, reliable and safe protection. The enhanced casing is suitable for internal installation of plastic hermetic motor, which can bear the plastic molding pressure at 3.5Mpa. The performance of the products satisfies the standards including IEC34-11, GB13232, GB/T13002, etc.
BW-B serial universal and enhanced protectors with large plastic casing are composed of the thermal conductive plastic casing, bimetallic parts welded with silver alloy contact point, conductive bracket, insulation fixation stand, fixed contact strip and heat resistance cable. When current passes through the bimetallic parts with resistance and in case of abnormal operation, along with the increase of current or the environment temperature rises to the set value, the bimetallic parts perform quick action, opens the contact point, and disconnects the circuit. When the device is cooled to the temperature for safe operation, the contact point will automatically closes and recover normal operation.
|
Voltage |
24V-DV |
125V-AC |
250V-AC |
|
current |
12A |
12A |
8A |
