| Prod Model: |
TL-A03 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Motor: |
DC Brushless Motor |
| Voltage: |
6V 12V |
| Typical Application: |
Coffee Maker Beverage Dispenser |
| Max Water Head: |
1.5m |
| Max Flow Rate: |
2.75L |
| Structure: |
Single-stage Pump |
| Power: |
Electric |
| Application: |
Water Circulating |
| Type: |
Brushless Centrifugal Pump |
| Theory: |
Water Circulating |
Product Description

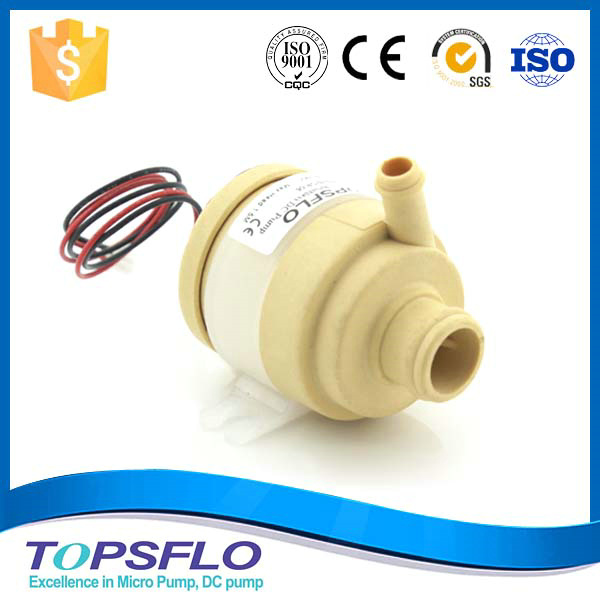

Mini Brushless DC Water Pump (TL-A03)
1.It's compact design, quiet and powerful brushless motor make it ideally suited for heavy duty where space is at a premium
2.High efficient ECM brushless DC motor, ideal long life time 20000 hours.
3.Advanced magnetic drive technology for static-seal, without any leakage for ever.
4.High density ceramic bearing and shaft designed for long life and high temperature endure.
5.Highly efficient and dynamically balanced impeller for smooth ultra quiet operation.
6.Such reliability is afforded by the unique design of this pump, which contains only one moving part: the magnetically driven rotor/impeller spins on a single ceramic bearing, thus extending the life of this pump beyond existing standards.
7.The high temperature models available up to 100 °C., food grade material, heat resistance material meet food or beverage industry needs.
Usage Note:Dry-running is prohibited.
Reverse polarity is not allowed (except customized).
The pump if dropped or with heavy vibration do not use.
Liquid contain impurities or magnetic particles are not allowed.
Liquid temperature over 80°C is not allowed (except high temperature models).
Acidic or alkaline liquid is prohibited (except customized).

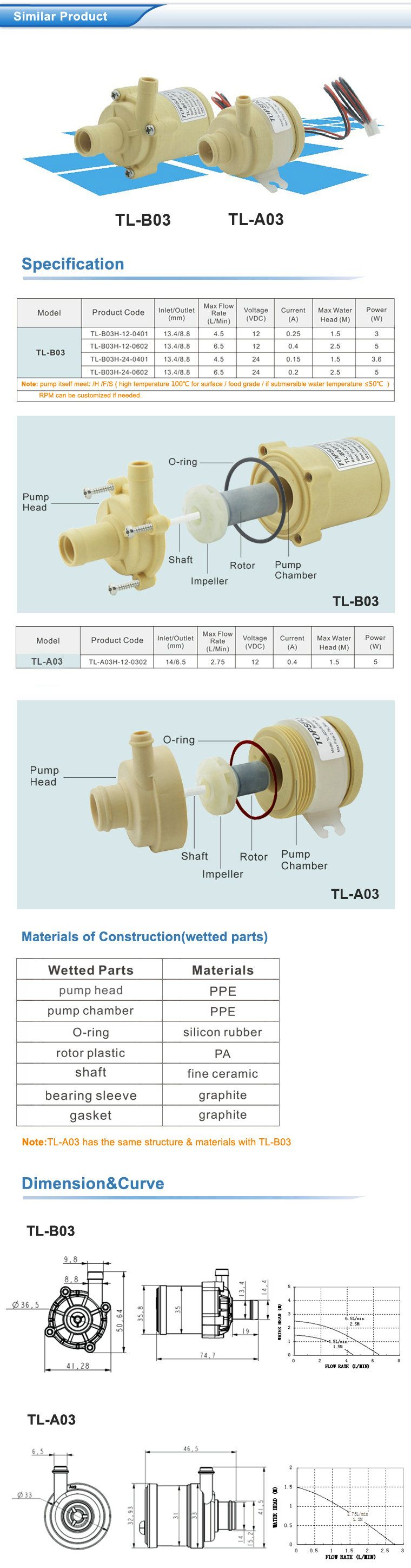

Specification:
Model | Product Code | Inlet/Outlet(mm) | Max Flow Rate (L/Min) | Voltage Scope (DC) | Current (A) | Max Water Head (M) | Power (W) |
| TL-A03 | TL-A03-6-0302 | 14 / 6.5 | 2.75L | 6VDC | 0.4 | 1.5M | 5 |
| TL-A03-12-0302 | 14 / 6.5 | 2.75L | 12VDC | 0.4 | 1.5M | 5 |
| Note: pump itself meet: /H /F/S ( high temperature 100°C for surface / food grade / if submersible water temperature ≤50°C ) |
| RPM can be customized if needed. |
