| Prod Model: |
TL-A02 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Motor: |
DC Brushless Motor |
| Power: |
Electric |
| Structure: |
Single-stage Pump |
| Theory: |
Water Circulating |
| Type: |
Brushless Centrifugal Pump |
| Application: |
Water Circulating |
Product Description

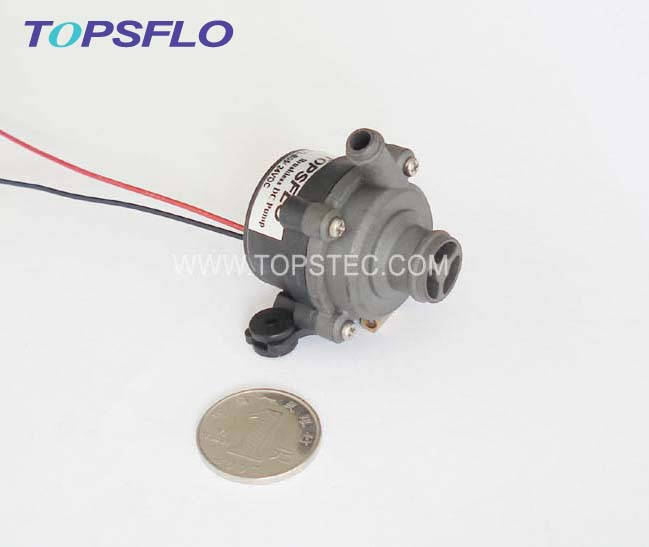

Coffee Maker Pumps 12V DC Tea Pot Pumps
Product Description
1. Life: Magnetic drive way more advanced to avoid the traditional rotor friction, longer life can be more than 30, 000 hours of life.
2. Low noise: ≤ 35dB, at 1 meter distance.
3. Working Way: The product is a brushless magnetic drive, 24 hours of continuous work
4. Working conditions: Applying to indoor and outdoor under temperature 40degC.
5. High temperature: 100° C.
6. Advanced magnetically coupled technology, without any leakage for ever
7. Low power consumption.
8. Material: Durable magnetic rotor and fine ceramic shaft.
9. It can be customized according to customer`s technical requirements.
Caution: Do not operate for long time when there is no water in the pump.
Other Application:
1. Hot water circulating system
2. Water or oil cooling circulating system
3. Tea pot or Coffee maker
4. Juice machines
5. Fountain
6. Water dispenser
7. Garden irrigation
8. Aquariums and ponds
9. Hydroponics
The technical parameters above are only for your reference, please provide us your own required specifications. For more detail, please feel free to contact us.
|
Model |
Product Code |
Max Flow Rate (L/Min) |
Voltage Scope (DC) |
Current (A) |
Max Water Head (M) |
Power (W) |
|
|
TL-A02H-12-0301 |
3L |
12VDC |
0.3 |
1.7 |
3.6 |
|
TL-A02H |
pump itself meet: /H /F /PV (high temperature 100C / food grade / solar panel driven ) |
|
|
can be customized: /S (submersible ) |
