| Prod Model: |
THL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Coconut Shell Charcoal Carbonization Stove |
| Capacity: |
Could Deal with 4.5-5t Raw Material Per Day |
| Raw Material: |
Wood Logs,Wood Chips,Bamboo,Coconut Shell,etc |
| Application: |
for BBQ |
| Certificate: |
CE |
| Warranty: |
12 Months or 1 Year |
| Voltage: |
380V |
| Power: |
1.5kw |
| Dimension(Dia*Height): |
2.3*1.9m |
| Factory Visit: |
Welcome |
| Certification: |
CE |
Product Description
Main introduction of Coconut Shell Charcoal Carbonization StoveCoconut shell charcoal carbonization stove is a kind of new air flow type carbonization stove, can also be called as charcoal carbonization stove. It is used to make charcoal from wood and all kinds of biomass. It adopts new advanced hot air carbonizing technology, greatly improves the carbonization rate to 99%, compared with the carbonization rate 80% of traditional carbonization stove! Its charcoal making time is short .This kind stove is safe and easy to operate,the charcoal made from the carbonizing furnace can be the material of activated carbon. thus it is very famous among many industries like charcoal making industry and boiler industry
It divides into three working process:
A: Heating process: After putting the inner baskets intot the furnace, we need to heat the furnace up to 80-120mins, we could use gas or biomass waste as fuel, when temperature get around 280-330degree, we stop heating
B: Carbonizing process: After doing the sealing works, the materials inside begin to pyrolysis, it will produce gas at this period, so we need heating in this process, the carbonization time is often around 8-12hours
C: Cooling process: After carbonizinh, we need to take the inside furnace out, let it cool by natural way, cooling time longer, it is better for charcoal quality
D: After taking the inner baskets out, we need to put another baskets inside, this is the cycling process
Raw material of Coconut Shell Charcoal Carbonization Stovesuch as wood logs bamboo,wood briquettes coconut shell,biomass waste, cashew shell, macadia nut shell and so on
Features of Coconut Shell Charcoal Carbonization Stove1.Easy to operate and maintain, higher safety, energy saving
2.High carbonization rate ,no smoking, little pollution, high efficient.
3.Newly developed carbonization stove, which can dry the materials with the superfluous energy produced in the process of carbonization. 6-8 hours per stove and can work continuously .
4.The tube of fume extraction will recycle the gas flow which come from the inner stove during the carbonizing process for continue warming the stove, and it will save 70% energy consumption and recycle 95% smoking.
Main details of Coconut Shell Charcoal Carbonization StoveModel | THL-5 |
Environment | Totally No pollution ( there are two reasons : the frog and the gas flow will be recycle from the smoke recycle device and use for heating the kiln again 2. We install a special device that can use the liquid gas as the energy to heating the carbonization kiln,and it will not produce any smoke. |
Time | This type have three inner stove,when one inner stove finished (6- 8hours), use the hoist tools lift the inner stove out let it cooled naturally,at the same time, lift the other one in,3 inner stove can work continuously.24 hours can carbonizing 3-4 inner stove |

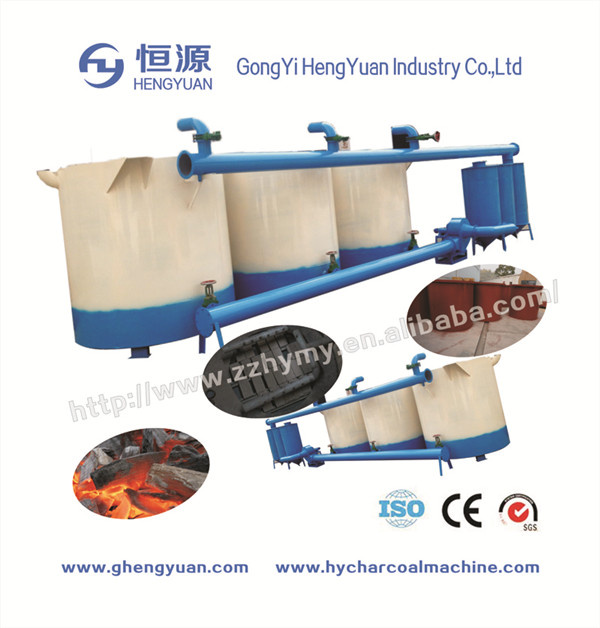

Main structure | One main furnace with three inner baskets. Main furnace: It includes heating room, furnace body and heat-keeping layer. Carbon basket: The raw materials are the resistance thermal steel plant and sealing cover. Fume extraction tube:During the process of carbonizing, there will be some smoke which can be burning. The smoke can return to the furnace through tube air-blast carbonization. |
Transport | The three inner stove can be stack in the outer stove together,save a lot of space |
Energy consumption | 30-45kg firewood or 15-20kg liquid gas.This type will save 30% payment |
FAQ1.What is the carbonization rate?
This carbonization rate can reach to 99%.
2.Could you offer complete Wood Charcoal machine production line?
Yes, we will allocate suitable production line according to your special requirement, such as crusher, Gasifier Equipment, Dust-Removal Device,Gascleaner, Auto-feeding Conveyor,Cooling and Discharging Conveyor,Manual automatic dual-use electric control cabinet,etc.
3.How to operate furnace and working process?
1. First step is download the raw materials into the inner baskets, we could use the cages for loading
2. The carbonizing time for one inner baskets is around 8-10hours, then we take the inner basket out and let cool, at the same time, we put another inner baskets inside. This is the recycling process
3. Producing the gas: when temperature get around 280-330ºC, it will produce the gas, at this time, we stop heating, and do the sealing work, the gas will return to the furnace by pipes, it is for self-heating
4. cooling system and fan: we add the cooling baskets and fan for dealing with the tar oil and smoke, at the beginning, this system have the good treatment to the smoke, and it will also produce tar oil, the tar oil will flow out from the the cooling system tank
5. cooling time: 5-10hours, ( generally speaking , cooling time longer is better for the charcoal quality energy consumption: 40-60kg wood waste
