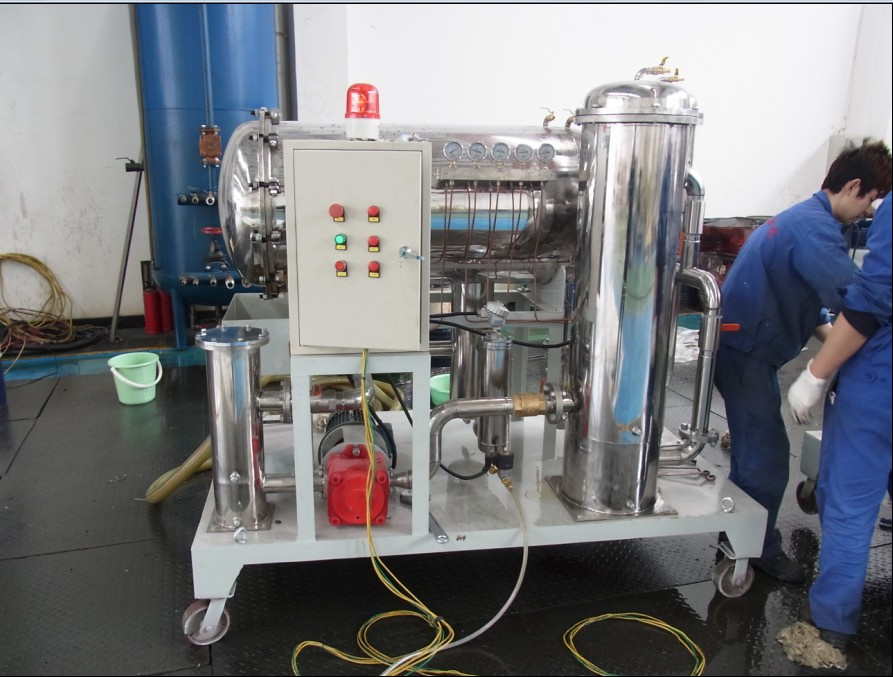

Coalescing Dehydration Method Turbine Oil Purifier

Coalescing Dehydration Method Turbine Oil Purifier
Price: US $ 1/Piece
Trade Terms: FOB,CIF,DAP
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: JT
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Structure: Mobile
Mechanical Principle: Vacuum
Type: Return Filter
Method: Coalescing Dehydration
Features: Economic Price, Suitable for Turbine Oil
Delivery Time: 20 Days
Price Level: Low
Warranty Or Guarantee: 1 Year
OEM Supply: Yes
Size: 1.5m*1.0m*1.4m
Application: Turbine Oil Purifying

Product Description

JT Series Coalescing Dehydration Oil Purifier
This purifier is made of a hydrophilic coalescing element and a hydrophobic dehydration element which are configured and optimized in a certain proportion. According to the different physical effects of the water in the oil, the free water drops with big diameters when passing the coalescing element. The dehydration element will then separate the water drops, which will be automatically drained out after sinking in the water holder. The oil and water will thus be separated. Combining automatic emulsion splitting, high-efficiency dehydration and precise filtering, the filter can effectively filter out the water and impurities in the oil. The product is suitable for the online automatic operation of various light oil system, turbine oil systems and lubricating systems. It has obvious effects on the online operation of leakage sets.

Features of Product

1. The whole equipment designed individually with nice appearance, low power and low cost for operation.

2. The plant is all made of stainless steel without adding antirust so that working uninterruptedly.

3. The oil-water interfacial apparatus and automatic drained valve could offer exactly detached water level and drain water automatic when it accumulated condign capacity.

4. Electric system control with PLC (touch screen) which could show working condition and operation of all parts clearly. It also can monitor equipments, automatic control and protect stopping machine. It could use of the equipment operation online without human.

5. Adopting the special oil pump made in Germany that have good airproof, low noise and long life time.

6. Multilayer filtration including coarse filter, protecting filter, nice filer are all imported from Europe and U. S. A. The effect of control impurities is excellent.
Item Parameter    Type
Unit
JT-50 JT-100     JT-150  JT-200
Technical Parameter Flow Rate L/MIN       50 100 150 200
Working Pressure Mpa ≤0.5
Temperature Range Centigrade 45-65
Power Supply   50Hz    380V    3-Phase 4-Wire   (or as requested)
Total Power KW 1.5 3
Inlet/Outlet Diameter mm 32 38 45 50

Size
Length mm 1500 1500 1600 1650
Width mm 1000 1050 1200 1250
Height mm 1400 1400 1500 1600
Weight Kg 450 500 600 700
Oil Treatment Index Water Content ppm ≤100
Kinematic Viscosity   ≤20% in comparison to the original bias value of new oil
Demulsibility min ≤15
Filtering Accuracy µm ≤5
Cleanness NAS   Grade 5-8
Oil Appearance   Transparence
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd is a high-tech enterprise for researching, designing, developing and producing scientific and measuring instruments. With its continuous drawing of lessonas, unremitting innovation and borrowing of advanced technology from both at home and abroad, our company is now becoming a professional manufacture of oil tester, electric tester, laboratory instrument, road building instrument and geophysical equipment.

Though highly acclaimed and favorably accepted by numerous customers and possessed of the right to import and export, to ensure the high quality of our products, we conduct our manufacturing in strict accordance with various standards of ISO, ASTM D, IP, GB etc. We have developed sales channels in many countries and regions such as Thailand, Philippine, Iran, Indonesia, Spain, Iceland, Chile, Regions of Southeast Asia, Middle East, Europe, North and South America etc, and have gained strong advantage and high reputation in international market.

We have persisted on the business idea of "Integrity Basis and Quality First" for the stable and constant development. We are making effort to develop together with customers from both domestic and abroad on the basis of reciprocity. Client, quality and service are our supreme target!
