| Prod Model: |
E40/3.5mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Clear Tube Listen Only Earpiece with 3.5mm Connect |
| For Radios: |
All Two Way Radios |
| Connector: |
3.5mm Connector |
| Material: |
Surgical Grade Acoustic Tube |
| Cable Material: |
Environmental PU Cable Reinforced with Kevlar |
| Application: |
Swat,Police, Fire Fighter,etc |
| Use For: |
Two Way Radios Communication |
| Communication: |
Wired |
| Functions: |
Microphone |
| Warranty: |
12 Months |
| Style: |
In-ear |
| Line-Control: |
Line-Control |
| Jack Type: |
3.5mm |
| Microphone: |
Without Microphone |
| Function: |
Noise-Cancelling |
| Earpad Size: |
Xsmall |
| Wire Material: |
PU |
| Use: |
Two Way Radios/Walkie Talkies |
| Color: |
Black/Beige |
Product Description

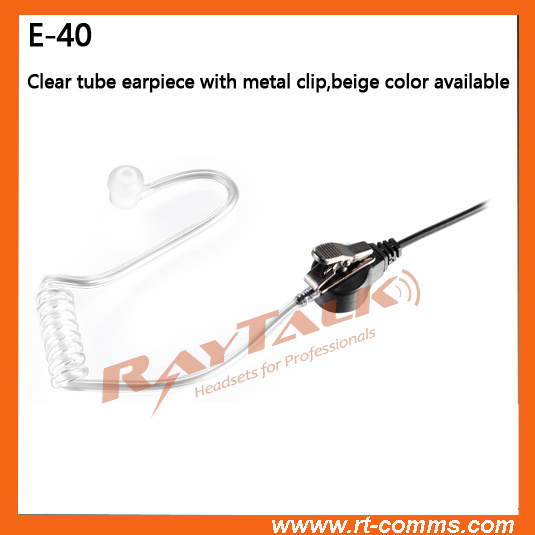

E40 Listen only earpiece 3.5mm for all radios with 3.5mm audio jack
Descriptions:
1. Rugged And Reliable
2. Surgical grade acoustic tube; discreet and comfortable; available in clear and black
3. Quick-fasten secure structure
4. Environmental PU cable reinforced with Kevlar
5. Used with optional ear mold allows ambient sounds and provides better wearing
6. Discreet communication in complex environment. Suitable for patrolling police, security personnel in hotel, conference hall, casino and restaurant, etc.
7. Available for Motorola, EF Johnson, FRS, Kenwood, Icom, Yaesu/Vertex, Maxon, etc. For details please refer to Connectors chart.
Advantage:
1. Professional surveillance two wire kits, with medicinal Grade acoustic tube; discreet and comfortable;
2. Separated microphone in most popular PTT. PTT button and earpiece for discreet communication.
3. All have Kevlar reinforced cable and over molded strain assemblies and over molded strain relief.
4. Optional black or beige color.
5. Clear sound quality, noise eliminated.
6. Can change the earplug (Eartip1, Trigonal, and NOISE LIMITER) as your request.
7. Ideal for security, SWAT and other applications which require discrete communications.
Speaker Specification
Type |
Transducer Moving coil dynamic speaker |
Impedance |
90Ω±15% @1KHZ |
Sensitivity |
110±3dB @1KHZ |
Resonance freq |
(F0) 400HZ±20% |
Frequency respond |
F0~5KHz |
Rated input power |
500mW |
Maximum input power |
800mW |
Microphone Specification
Sensitivity Range |
-34 ± 2dB RL=2.2K ΩVs=3.0V(DC) 1KHz 0dB=1V/Pa |
Impedance Max |
2.2KΩ 1kHz (RL=2.2KΩ) |
Frequency |
20-20KHz |
Current Consumption Max |
0.5uA RL=2.2KΩ Vs=3.0V(DC) |
Operation Voltage Range |
1.0V-10V (DC) |
Max Sound pressure Level |
115dB S.P.L |
