| Prod Model: |
HJS71 |
| Cooling Capacity: |
71kw |
| Type: |
Cabinet Air Conditioner |
| Operating Voltage: |
380/400 VAC |
| Mounting: |
Floor Standing |
| Certification: |
CCC |
| Condition: |
New |
Product Description

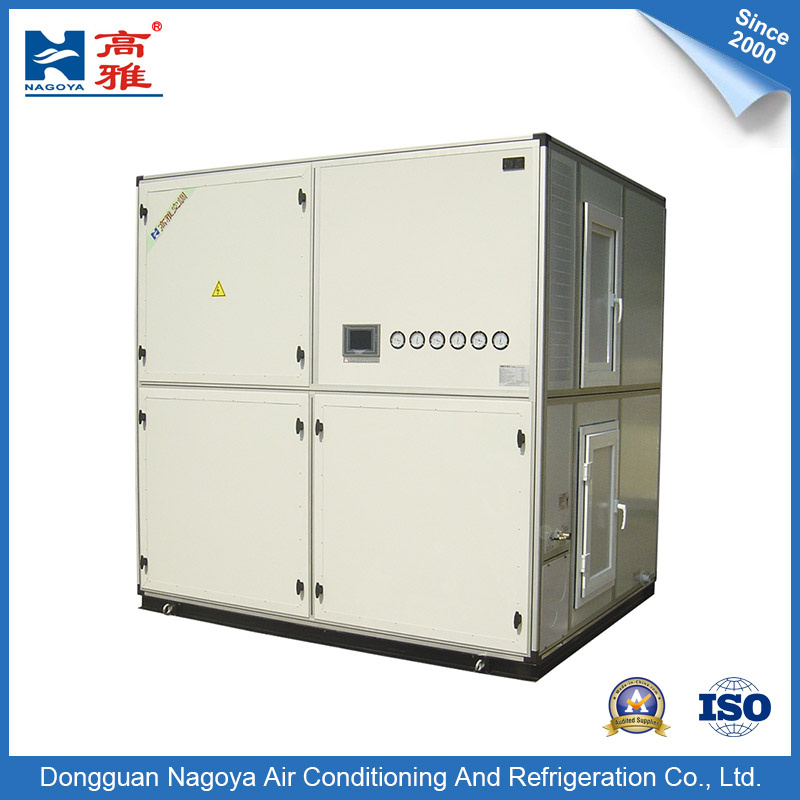

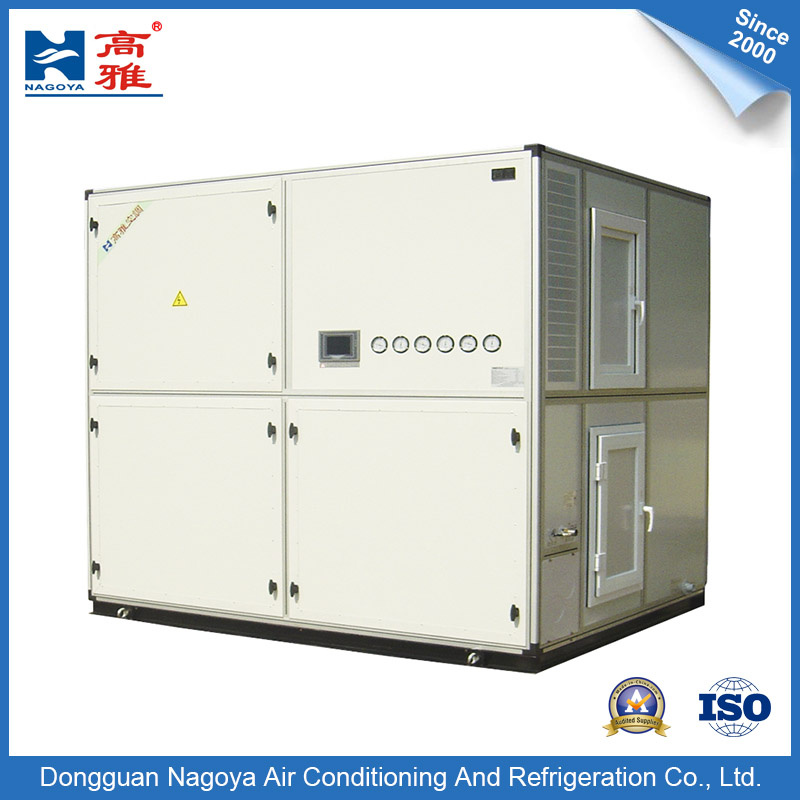

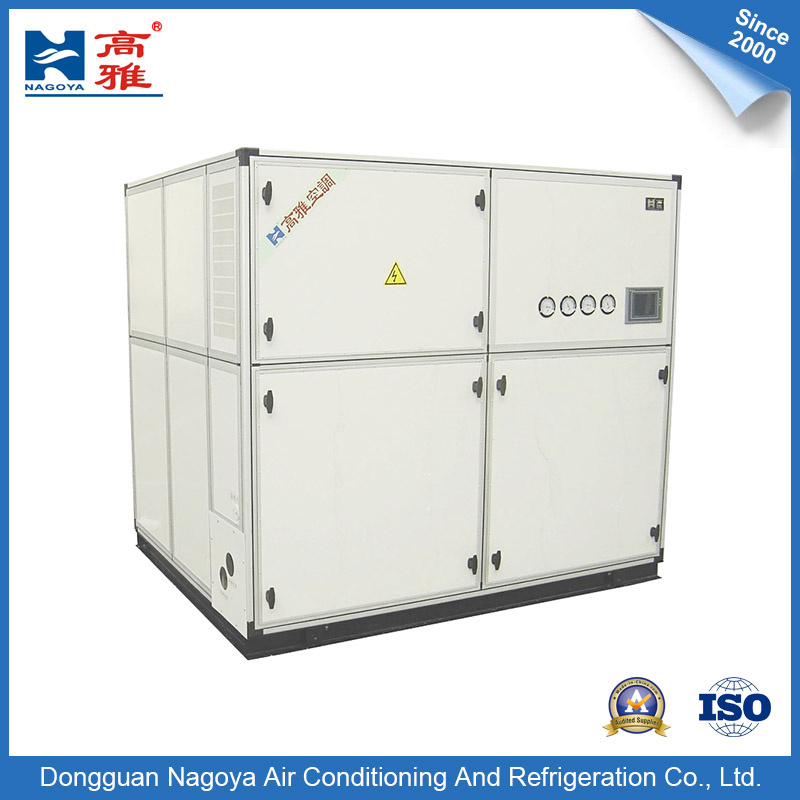

Nagoya 25HP HJS71 Clean Water Cooled Constant Temprature And Humidity Air Conditioner
what can we benefit from you?
1. We provide OEM and ODM service
2. 100% high quality for every customer
3. Good after-sale service for customer
4. Wholesale price for regular customer
what do you have to ensure that what you said is right?
1. Full set of equipment ensure each process of product be finished. Such as punching machine, bending machine, machining machine and welding machine. And also coating, assembling, testing and packing.
2. First class of salesman to service for every client's demands.
3. Excellent R&D team waiting for clients, if you provide information and request.
4. Highly efficient management systems and quality assurance departments.
What information should i let you know once i want to make an inquiry?
1. The items name such as water chiller, air conditioner etc.
2. What's the use for? Like: for cool down air or machines?
3. Where the equipment should be used? Like: Country and city, factory or others?
4. What about the temperature and humidity request?
5. How many square meter of the space?
6. How many sets you need?
7. What's your seaport or items destination?
| Clean Water Cooled Constant Temprature And Humidity Air Conditioner (Heat Recovery) |
| model | HJ15 | HJ25 | HJ31 | HJ46 | HJ62 | HJ71 | HJ93 | HJ107 | HJ142 |
| performance | HJS15 | HJS25 | HJS31 | HJS46 | HJS62 | HJS71 | HJS93 | HJS107 | HJS142 |
| unit property | cooling capacity | kW | 15.3 | 25.0 | 30.6 | 45.9 | 61.9 | 71.2 | 92.9 | 106.8 | 142.4 |
| electric heating capacity | kW | 8 | 9 | 12 | 18 | 24 | 30 | 36 | 54 | 72 |
| humidifying capacity | kg/h | 8 | 8 | 8 | 15 | 15 | 23 | 23 | 32 | 32 |
| rating flow | CMH | 2800 | 4500 | 5600 | 8600 | 11700 | 14000 | 17000 | 23000 | 28000 |
| external static pressure | Pa | 100/700 | 200/800 | 200/800 | 250/800 | 250/800 | 300/850 | 300/850 | 350/900 | 350/900 |
| power supply | 3PH 380V 50Hz |
| maximum operating power | kW | 13.7/14.8 | 19.0/20.5 | 24.8/26.6 | 36.8/39.3 | 47.5/51.0 | 57.6/63.1 | 70.8/76.3 | 94.6/102.1 | 127.2/134.7 |
| maximum running current | A | 24.8/26.6 | 35.0/38.0 | 44.8/48.2 | 66.8/71.1 | 85.0/91.6 | 100.6/111.6 | 125.9/136.9 | 163.2/178.1 | 219.7/233.3 |
| noise | dB(A) | ≤60/≤74 | ≤70/≤77 | ≤71/≤77 | ≤73/≤79 | ≤74/≤79 | ≤75/≤80 | ≤75/≤80 | ≤77/≤82 | ≤79/≤83 |
| temperature and humidify range | 18-28ºC±1ºC,50-70%±10% |
| compressor | type | full closed scroll |
| quanlity | 1 | 2 | 2 | 3 | 2 | 2 | 3 | 3 | 4 |
| operating power | kW | 3.5 | 5.7 | 7.0 | 10.6 | 13.0 | 14.7 | 19.5 | 22.1 | 29.4 |
| evaporater | high efficient copper pipe alumininum fin expansion |
| condenser | type | shell and tube type |
| cooled water flow | CMH | 3.2 | 5.3 | 6.5 | 9.7 | 12.9 | 14.8 | 19.3 | 22.2 | 31.1 |
| dia. Of pipe | in | 1-1/4 | 1-1/2 | 1-1/2 | 2 | 2 | 2-1/2 | 2-1/2 | 3 | 3 |
| throttling gear | external balanced thermal expansion valve |
| refrigerant | R22/R407C |
| centrifugal fan | type | belt driven centrifugal |
| power | kW | 0.45/1.5 | 1.5/3.0 | 2.2/4.0 | 3.0/5.5 | 4.0/7.5 | 5.5/11 | 5.5/11 | 7.5/15 | 11.0/18.5 |
| air filters | coarse filters + medium efficiency filters |
| electrode humidifier | humidifying power | kW | 6.1 | 6.1 | 6.1 | 11.4 | 11.4 | 17.5 | 17.5 | 24.3 | 24.3 |
| dia. Of inlet pipe | in | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 |
| dia. Of condensed draining pipe | in | 1 | 1-1/4 | 1-1/4 | 1-1/4 | 1-1/4 | 1-1/4 | 1-1/4 | 1-1/2 | 1-1/2 |
| protection drive | high & low pressure protection, overload current protection, phase reversion & lack protection, overheat protection, water flow protection, electric heat temp. too high protection, overload humidified current protection, external interlock protection, fusible plug, oil heater, fuse etc. |
| dimension | width | mm | 900 | 1350 | 1350 | 1900 | 1900 | 2300 | 2300 | 2800 | 2800 |
| depth | mm | 1350 | 1350 | 1350 | 1500 | 1600 | 1850 | 1850 | 2050 | 2250 |
| height | mm | 1500 | 1500 | 1500 | 1700 | 1700 | 2300 | 2300 | 2500 | 2500 |
| net weight (about) | kg | 560 | 780 | 880 | 1200 | 1320 | 1950 | 2100 | 2500 | 2700 |
| Note: 1. The cooling capacity is measured in:air inlet temperature: 23ºC/17ºC, cooled water inlet and outlet temperature: 30ºC/35ºC. |
| 2. Cooled water inlet temperature: 21-34ºC. |
| 3. The perfomance of using the new environmental protection refrigerant R407C unit and using ordinary refrigerant R22 unit is similar. |
| 4. When the environment humidify is 45-65%, using heat recovery unit save more energy than using the conventional models. |
In 1977, NAGOYA AIR CONDITIONG AND REFRIGERATION Co., Ltd. Was founded in Hong Kong, and in 1991, it set up a plant in Dongguan, Guangdong. The Company has developed into a professional and modern manufacturer of central air-conditioning and supporting equipments, with an annual capacity of more than 8000 units, and the products are well sold in China and also exported to oversea market.
NAGOYA is a joint venture incorporated by shareholders from Canada, Hong Kong and Taiwan, the Company has been certified to ISO9001 international quality certification. Basing on ISO9001 quality assurance system, NAGOYA has established a full set of management system to ensure product quality and service quality, where each department coordinates each other under clearer division of labor and makes joint efforts to respond the needs of customers more timely, and provides more effective service, thus improving its competiveness continuously. From view of NAGOYA, current market competition depends on talent competition, and the Company implements talent strategy of "people-oriented, merit-based" and pays more attentions to strength, rather than only academic background. Under people-oriented corporate culture, NAGOYA has created a vibrant, united, progressive, challenging and innovative team, and ensures its products are characterized by stable performance, excellent quality, and first-class after-sales service. Therefore, "NAGOYA" products have been rapidly acceptable and highly praised by all sectors, as the preferred brand by many Chinese and foreign enterprises.
Do business in a thoroughgoing manner; Utilize resource from the society, and then contribute to the society, thus to develop and grow up in a sound and responsible manner. NAGOYA is involved in innovation and development of new products to meet the needs of the society, and this is the development history of the Company over decades of years.
The Company has always adhered to the spirit of "quality-first, customer-centered", conducted business in good faith, and made every effort to provide high quality products as well as perfect pre-sale in-sale and after-sales service, thus only reaching the acme of perfection and repaying customers' support.
