Class H Circuit Professional 1100W*2 Power Amplifier

Prod Model:	CA12
Conductive Mode:	B

Product Description

Class H circuit Crest style 1100W*2 power amplifier
----Professional amplifier
----Speaker amplifier system
----Audio amplifier equipment

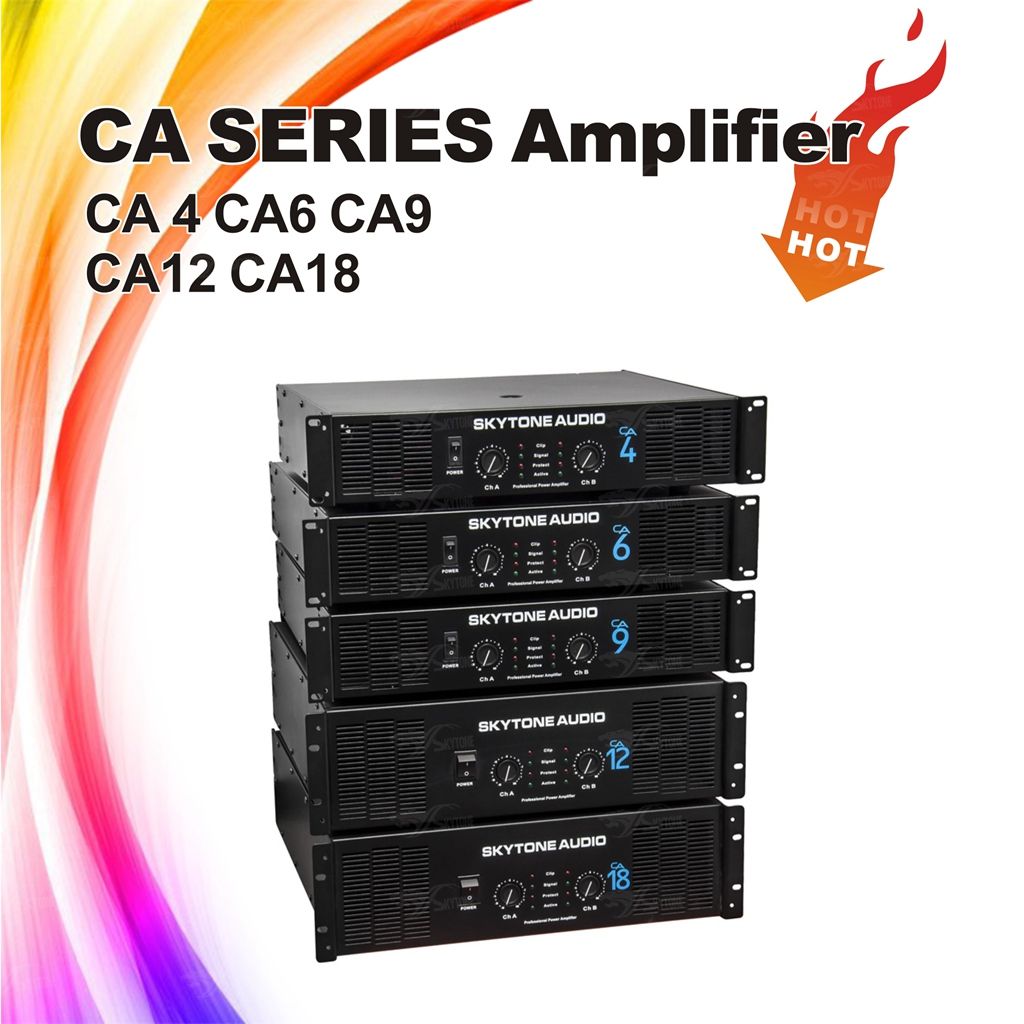

Crest style CA Series Professional Power Amplifiers
PRODUCT DESCRIPTION:
--This CA Series Power Amplifier is H Class circuit.
--It is a circuit between the digital amplifier and traditional amplifier.
--And it's designed according to the professional HI-FI(high fidelity) standard.
--There're two groups of high-power tube installed on both sides, in order to enhance the cooling efficiency.
--The amp is elaborated by the imported Japanese original Toshiba tube and Japanese original ELNA    capacitor, which is also used by the US GM company, for expanding flow output.
--H class circuit is a kind of fast recovery circuit which is equipped with high efficiency intelligent cold system,    DC protection, short circuit protection, overheating and overload protection,ect. It can working at 2 Ohms stably for a long time.
--The amp also makes the sound of speakers to be wide field, structured, thin, clear,uninhibited, glossy, good texture, perfect fitting the high-end speakers.

Any question about Crest Style CA Series 2 channels PRO audio amplifier(CA12), please do feel free, we're glad to help you.

Real photos:

Technical Specification		CA4	CA6	CA9	CA12	CA18
PMPO peak power	4 ohmsBridge	2100	2950	3200	3800	4600
	8 ohmsBridge	1600	2300	2600	3450	4100
	2 ohms Stereo	1200	1550	1850	2100	2850
	4 ohms Stereo	900	1250	1400	1750	1950
	8 ohms Stereo	600	800	1000	1200	1400
20Hz-20KHz, ≤ 0.1%THD rated power	4 ohms Bridge	1750	2500	2750	3000	4100
	8 ohms Bridge	1350	2100	2350	2600	3750
	2 ohms Stereo	980	1250	1600	1800	2400
	4 ohms Stereo	750	900	1250	1400	1850
	8 ohms Stereo	400	600	800	1000	1300
safe protection	Dc protection	√
	Short circuit protection	√
	Sensitivity overheating management system	√
	Overheat protection	√
	Input overload protection	√
	Output overload protection	√
	Soft start protection	√
	Limiting protection	can reach 10V
Frequency Response		20Hz-20KHz± 3dB
Sensitivity		0.775v	0.775v	0.775v	0.775v	0.775v
Link	Input	XLR 1/4Jack	XLR 1/4Jack	XLR 1/4Jack	XLR 1/4Jack	XLR 1/4Jack
	Output	SPEAKON	SPEAKON	SPEAKON	SPEAKON	SPEAKON
Filter electrolysis capacity		40000uf	40000uf	60000uf	60000uf	60000uf
Input impedance	Balance input	20Kohms
	Unbalanced input	10Kohms
String sound attenuation20Hz-20KHz, 8ohms		≥ 65dB
8ohmsS/N		≥ 108dB
Damping coefficient1KHz& 8ohms		≥ 900				≥ 800
Intermodulation distortion20Hz-20KHz		≤ 0.02%
Total harmonic distortion20Hz-20KHz		≤ 0.05%
Phase response1W& 8ohms, 20Hz-20KHz		≤ ± 8°
Conversion rate		≥ 60V/µ s
Output circuit type		H				H-II
Power consumption 4ohms, 1/8RMS/230V		250	450	550	650	800
Installation space		2U
Cooling system		intelligent system, automatic adjustment according to changing temperature
Size(W× H× D)		630× 590× 210mm
Net Weight		20.25kg	27kg	28kg	37kg	38kg
Technical support and after-sales service		6 years Warranty non-artificial damage
