| Prod Model: |
SZTP1263-7-W5R |
| Size: |
7.0 Inch |
| Structure: |
Film + Glass |
| Connector: |
Pin 5 Plug Connector |
| Thickness: |
1.4 ± 0.15 mm |
| Touch Media: |
Finger, Touch Pen |
| Type: |
5 Wire Resistive Touch Screen |
| Ratio: |
16:9 |
| Resolution: |
4096*4096 |
| Certifications: |
Ce,RoHS |
| Interface: |
USB |
| Aspect Ratio: |
16:9 |
| Application: |
GPS System |
| Screen Type: |
Resistive |
| Resistive Touch Screen Type: |
Analog |
| Screen Size: |
7 Inch |
| Customized: |
Custom Service Available |
Product Description
Product Description

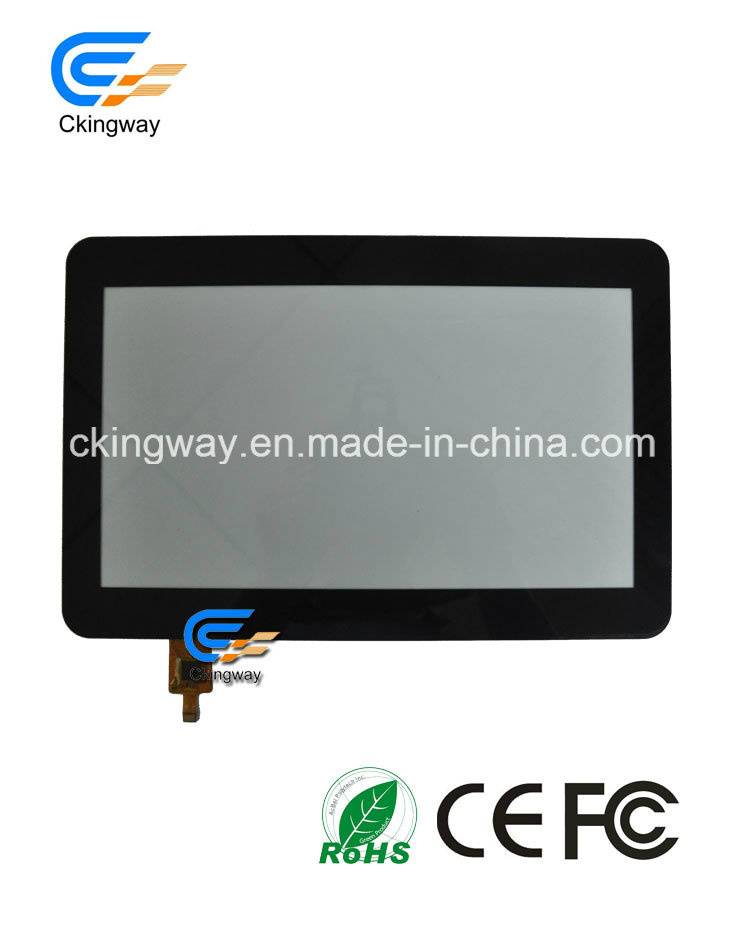

The Feahters Of Ckingway 7 Inch USB Powered Touch Screen:
| 1.The size of the product is 7.0 Inch. |
| 2.It's gigh accuracy and sensitivity. |
| 3.It can adapt to adverse environmental conditions. |
| 4.It's 5 wire restistive touch screen with 5 plug connector. |
| 5.Can be touched by finger or touch pen. |
The Details of Ckingway 7 Inch USB Powered Touch Screen:
| Size | 7.0 inch |
| Structure | Film + Glass |
| Connector | Pin 5 plug connector |
| Thickness | 1.4 ± 0.15 mm |
| Touch Media | Finger, Touch Pen |
| Type | 5 Wire Resistive Touch screen |
| Ratio | 16:9 |
| Resolution | 4096*4096 |
| Response Time | ≤ 10 ms |
| Supply Voltage | 5V DC , 35 mA |
| Transparent | ≥ 75% |
| Screen Resistance | ≤250Ω |
| Insulation Resistance | ≥20MΩ(10V DC) |
| Pressure | 50 - 150 g |
| Surface Hardness | 3H |
| Life Span | > 1,000,000 time touches |
| Operating Temperature | - 10ºC ~ +60ºC |
| Storage Temperature | - 20ºC ~ +70ºC |
| Storage Humidity | 20 ~ 85% RH (except congeal fog) |
| Custom Service | Available |
| Certifications | CE,ROHS |
Packing & Delivery Terms Of Ckingway 7 Inch USB Powered Touch Screen:
| Packing:anti-static foam + paper card + ragged bag + carton |
| Delivery:5 work days after your full patment. |
The Terms Of Payment Of Ckingway 7 Inch USB Powered Touch Screen:
| 1.Full payment before delivery. |
| 2.Prepay 30% as the deposite,T/T 70% the balance before delivery. |
| 3.Prepay 50% as the deposite and mould fee ,T/T the balance before delivery. |
| 4.Other payment method can be nogotiable. |
Warranty
| About Warranty:1 Year without damaged by people actions. |
FAQ
1.Why Choose Ckingway?
1)Enough industrail experience and involved main markets all over the world.
2)Dedicated and professional sales team will offer you 24 hours online and immediate service.
3)Precise and advanced equipments.
4)High quality and sensitivity.
5)Many kinds of products with all size.
2.What can we do for you:
Custom service is available.
3.What is the lead time of the products?
Samples in stock will be sent within 3 days after payment.
Two to Four weeks for mass production.
4.Payment methods?
T/T and Western union etc.The details of our payment terms is showing above.
5.How long is the warranty period?
About Warranty:Usually 1 Year without damaged by people actions.It depends on different products.
6.What is the products application?
Widely used in instrument, handheld devices, industrial control, medical, automotive, smart home and other fields.
