| Prod Model: |
SC15024-10.1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
10.1" |
| Structure: |
Film + Glass |
| Connector: |
Pin 5 Plug Connector |
| Thickness: |
1.4 ± 0.15 mm |
| Touch Media: |
Finger, Touch Pen |
| Type: |
Projection Capacitive |
| Ratio: |
16:9 |
| Screen Size: |
5-15 Inches |
| Aspect Ratio: |
16:9 |
| Application: |
Medical Services System |
| Screen Type: |
Resistive |
| Resistive Touch Screen Type: |
Analog |
| Customized: |
Customized |
Product Description

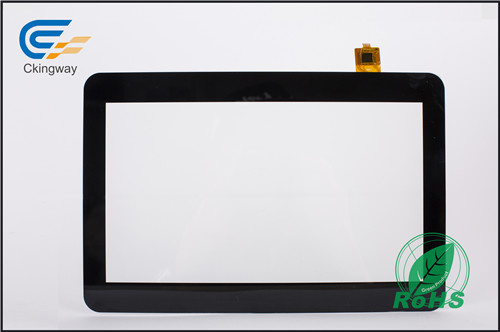

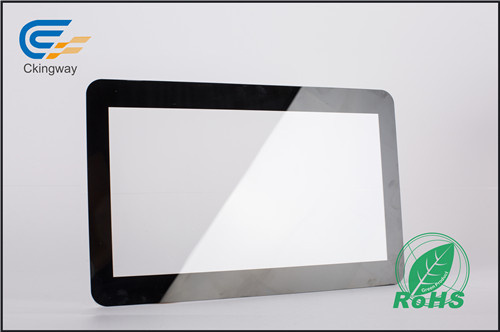

The Feathers of Ckingway 10.1" projection capacitive touch panel screen for Medical Industry as below: 1. High accuracy and sensitivity.
2. Operable in various light conditions, indoor and outdoor;
3. Adapt to adverse environmental conditions such as liquid splashes and wash down
4. It meet CE, FCC, ROHS certification
| Size | 7.00" inch |
| Structure | Film + Glass |
| Connector | Pin 5 plug connector |
| Thickness | 1.4 ± 0.15 mm |
| Touch Media | Finger, Touch Pen |
| Type | 5 Wire Restistive Touch screen |
| Ratio | 16:9 |
| Resolution | 4096*4096 |
| Response Time | ≤ 10 ms |
| Supply Voltage | 5V DC , 35 mA |
| Transparent | ≥ 75% |
| Screen Resistance | ≤250Ω |
| Insulation Resistance | ≥20MΩ(10V DC) |
| Pressure | 50 - 150 g |
| Surface Hardness | 3H |
| Life Span | > 1,000,000 time touches |
| Operating Temperature | - 10ºC ~ +60ºC |
| Storage Temperature | - 20ºC ~ +70ºC |
| Storage Humidity | 20 ~ 85% RH (except congeal fog) |
| Custom Service | Available |
CERTIFICATION

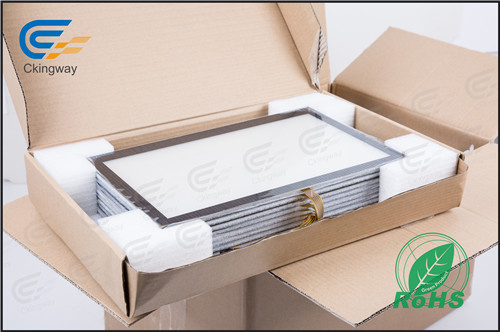

Ckingway 10.1" Inch projection capacitive touch panel screen for Medical Industry for Packing:
Individual OPP Bag or Anti Static Bag Packing or Bubble Packing, Put all the goods into the FOAM Box, Outside with ragged bag, Then put it in the Carton, Pack it with tape and seal.
Company Information: Ckingway Technology Co.,Ltd. Established in 2009, We focus Researching & Developing, Design, Manufacture and sales integrated into one target on Resistive Touch panel, Capacitive Touch Panel and LCD/LCM (Liquid Crystal Display Module). Coming along with Electronics consumer products increasing rapidly recently, Our product has been holding steady marketing share in Touch display field under our teamwork strongly, while industry chain getting more ruggedized , professionalized.
Ckingway's Product range of application widely, is applied to Automobile electronic, Medical Equipment, Industrial Control, Security monitor and Digital products etc. It was approved ISO9001 quality manager get into inside operation by third party certification "SGS" organization, All products met RoHS testing request completely and have RoHS certification.
Ckingway holds Business ideology report that: Quality and service will not stopping to develop to be excellent., Creat value for customers. We implement management policy with institutional and hommization combination, For" Connecting People, as career into integrity, Profits shared each other, Progressing by together" talent development strategy. R&D team with Efficient and unite we had, can be make a response to market rapidly. About Warranty: 1 Year without damaged by people actions. FAQQ:Sample Policy
A:Free sample,freight cost paid by customer.
Q: Sample leading time ?
A:3-5 days if you need to print your logo.
1-2days for our exsiting samples for reference.
Q :Production time ?
A:10-15 days after sample confirmed.
Q:shipping?
A:Usually we deliver our goods by DHL,UPS, FedEx for the small orders, for large quantity you can choose by sea or by air.
Q:Place an order as OEM to produce under our own brand?
A:Yes, our company accepts OEM and ODMONLY for the following types:
Resistive Touch Panel (3.5 inch to 24 inches)
The sizes of the Touch Panel can be adjusted according to the customers' requirements
