| Prod Model: |
Sograce0137 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Copper Thickness: |
1oz |
| Board Thickness: |
1.6mm |
| Min. Hole Size: |
0.0.75mm |
| Min. Line Width: |
0.2mm |
| Min. Line Spacing: |
0.2mm |
| Surface Finishing: |
HASL |
| Tg: |
130 Degree, 150, 170 |
| Mask Ink Color: |
White/Black/Green/Red/Yellow/Blue |
| Silkscreen Color: |
White, Black, Yellow etc |
| Forming: |
Punching/CNC Milling/CNC V-Cut |
| Type: |
Rigid Circuit Board |
| Flame Retardant Properties: |
V2 |
| Material: |
Aluminum |
| Dielectric: |
Aluminum |
| Brand: |
Sograce |
Product Description

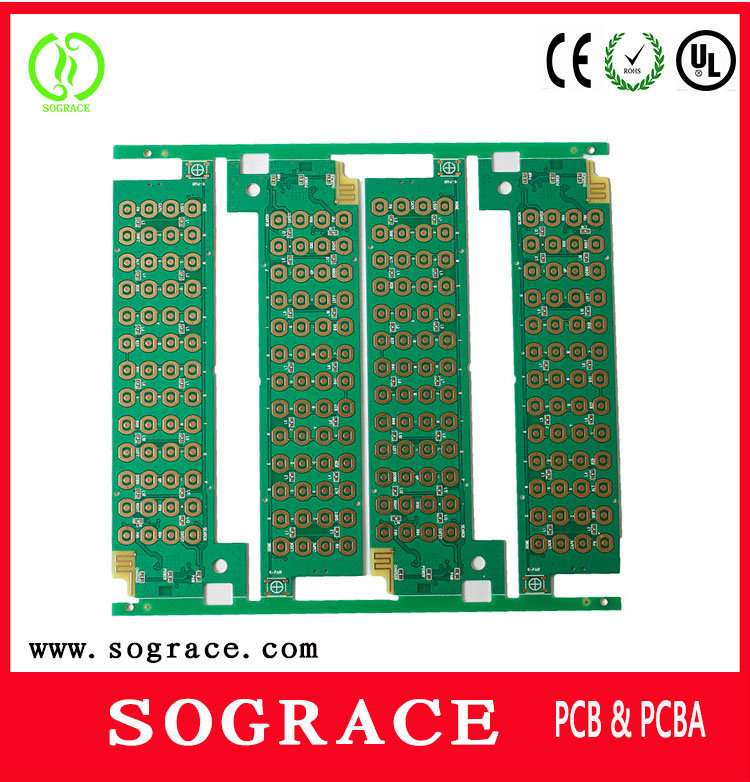

Mp3 player circuit board pcb
We are specialized in:
1. PCB design, PCB layout, PCB manufacturing, PCB Assemblies,
2. One-stop services from PCB to PCB assembly
3. Components sourcing, PCBA Function Test, design solution.
4. Electronic testing circuit board or PCBA
5. Eleectronic manufacturing service
Our advantage
1. Speed Located miles from Shenzhen, Hong Kong port, Sograce can provide quick shipping.
2. Quality All orders receive and engineering file review before going to fabrication and download the industry's best PCB board design software. We do Electrical testing&functional test for PCB&PCBA before shipment. PCB test methods are: E-testing, Flying Probe testing, Impedance testing, Solderability tesing, Microsection. And also can attach shipping reports. If you'd like.
3 Reliability All our PCBs are UL, ISO90001; 14001, RoHS cerfificated. At each stage of production, we conduct inspections of every PCB.
4. Flexibility To provide relatively fast turnaround on both sample and production quantities. Quick turn PCB prototyping service with delivery available from just 24 Hours.
5. On-time delivery Double side boards 24 hours and Multilayer boards rush to 48 hours. Our delivery reliability rate is over 95.55%. Sograce pioneered the end-to-end WIP online software which manage every aspect of your project. This ensures our quality manufacturing process for on-time delivery.
6. Competitiveness We are specialized electronic manufacturer, who can make factory quotation for you...
Packaging & Delivery
Packaging Detail: Inner packing: Vacuum packing / Plastic bag Outer packing: Standard carton packing
Delivery Detail: 3-5 working days for sample, 7-10 working days for mass order
Welcome to your Gerble file or Bom, for order to provide our exactly quotation for you.
For any questions about our products, kindly LED me know. We will take prompt attention for your any order.
Contact information:
Tel: +86-755-29309731
Our website: Www.Sograce.COM
| SERIAL | ITEM | TECHNICAL DATA |
| 1 | Layers | 2-24(layers) |
| 2 | Max Board Size | 457 x 610 mm |
| 3 | Min Board Thickness | 4(layers) 0.40mm
6(layers) 0.80mm
8(layers) 1.00mm
10(layers)1.20mm |
| 4 | Min Line Width | 0.10mm |
|
| 5 | Min Line Space | 0.10mm |
|
| 6 | Min Hole Size | 0.20mm |
|
| 7 | PTH Wall Thickness | 0.020mm |
| 8 | PTH dia tolerance | ±0.05mm |
| 9 | NPTH hole dia tolerance | ±0.025mm |
| 10 | Hole Position Deviation | ±0.05mm |
| 11 | Outline Tolerance | ±0.1mm |
| 12 | S/M Pitch | 0.08mm |
| 13 | Insulation Resistance | 1E+12Ω(Normal) |
| 14 | Aspect ratio | 10 : 1 |
| 15 | Surface treatment | gold immersion |
| 16 | Warp and Twist | ≤0.7% |
| 17 | Electric Strength | >1.3KV/mm |
| 18 | Peel Strength | 1.4N/mm |
| 19 | Solder Mask Abrasion | ≥6H |
| 20 | Flammability | 94V-0 |
| 21 | Impedance Control | ±5% |
| 22 | SMT Jointing Min.Space | 0.1mm |
| 23 | QFP Space | pitch 0.3mm |
Sograce International Corporation Limited is a professional PCB manufacturer for producing all kinds of single side, double-side and multilayer PCB, and as well as assembly service.
Established in June, 2006, our factory is located in Wanxia Industrial zone, Xinhe Road, Shajing Town, Baoan district, Shenzhen, China. We have a variety of advanced production equipment, excellent engineering and technical personnel, accompanying with the mature management and service system. Since 2006, we have successfully serviced customers in the United States, Canada, Western Europe and other regions of the world spanning many applications, business lines, and industry sectors.
Since establishment, we have been constantly improving all kinds of equipments and advanced techniques, striving to develop and produce PCB and PCBA which are used for high-tech products, such as LED, communication, network, electric power, industrial control, medical treatment, instrumentation, military projects and computer peripheral products ect.
Our products meet IEC\IPC\DIN\MIN standard, and behave ISO-9001 quality system, UL and RoHS certificate. Fast lead time and competitive price with high quality are our advantages. Production capacity is 20, 000M2 per month, the PCB lead time is within 10days, and most can be within 7days. We also established a prototype team to meet customer' S prototype needs, and the prototype lead time often can be within 3days.
With our hard work, we always satisfy the customers' High quality demand in a fast lead time under our strict management...Following the principle of "be sincere with every customer", we treat the product quality as our life. We are glad to provide you one-stop services from schematic capture and routing, PCB producing to SMT.
"High quality, Competitive price and Excellent service" is our mission which also wins the customers' Trust. Our purpose is to produce the most effective product under the advisable cost. All our consideration is built on customers' Benefit, and we benefit mutually from the business cooperation. Basing on this point, we have built a long term business relationship with lots of customers around the world, just like a blooming flowers. Warmly welcome more customers to visit and cooperate with us!
