China LED Light Source 50inches DLP Splicing Screen
| Price: |
US $ 8700unit |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1unit |
| Pay Type: |
L/C,T/T |
| Prod Model: |
HL50DG+ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Delivery Time: |
15 Woring Days After Receipt of The Deposits |
| Screen Diagonal: |
50inches |
| Native Resolution: |
1400X1050(Sxga+) |
| Original: |
Xian China |
| Application: |
Big-Screen Project |
| Aspect Ratio: |
4:3 |
| Feature: |
3D Display |
| Widescreen: |
Not Widescreen |
| Response Time: |
6ms |
| 3D: |
Not 3D |
| Screen Size: |
50 Inches |
| Optimum Resolution: |
1400X1050 |
| Type: |
Unit |
| Interface Type: |
VGA DVI HDMI AV |
Product Description

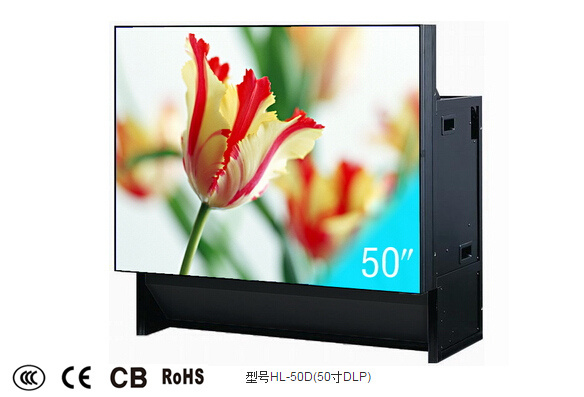

China LED light source 50inches DLP Splicing screen
A.Specifications| Screen(MD Pro Screen) | Screen Diagonal | 50" | 60" | 67" | 70" | 80" |
| Image Area | 1016×762mm | 1220×915mm | 1360×1020mm | 1422×1067mm | 1620×1215mm |
| On-screen Brightness (Theoretical) | 844.4cd/m² | 586.3cd/m² | 470.6cd/m² | 431.1cd/m² | 484.2cd/m² |
| Viewing Angle | 170°(H),150°(V) |
| Half Gain Angles | 28°(H)/10°(V) |
| Physical Gap | ≤0.2mm |
| Light Source | Type | LED |
| Estimated Life | 60000hrs |
| Color Temperature | 3200K/6500K/7500K/9300K |
| Engine | Display Technology | 0.95″ 12°SXGA+ |
| Native Resolution | 1400×1050(SXGA+) |
| Working Resolution | 640×480@60Hz~1920×1200@60Hz |
| Scanning Frequence | Horizontal:15-120KHz;Vertical: 25-120Hz |
| Brightness | 1100ANSI Lumens |
| Contrast Ratio | 100000:1(Dynamic) |
| Working Conditions | Maximum Consumption | 255W |
| Power | AC 100V-240V@50/60Hz |
| Operating | 5-35ºC |
| Operating Humidity | 20-80%RH(Non-condensing) |
Interface| | Simple control unit | Standard control unit | Full control unit |
| Signal Input | DVI(DVI-I) | DVI/VGA×2 (DVI-I) | DVI/VGA×2 (DVI-I) |
| DVI(DVI-I) |
| HDMI(HDMI A) |
| CVBS(BNC) |
| CVBS×2 | S-VIDEO(mini-DIN) |
| RGBHV/Y/PB/Pr,(BNC) |
| Signal Output | - | - | CVBS(BNC) |
| S-Video |
| DVI(DVI-I) | DVI(DVI-I) ×2 |
| Control Input | RS232(D-Sub 9) | RS232(D-Sub 9) | RS232(D-Sub 9) |
| CAN Bus(D-Sub 9) | RS485(D-Sub 9) | RS485(D-Sub 9) |
| TCP/IP(J45) | - | TCP/IP(J45) |
| Infrared remote-control (3.5mm) |
B:Features
Ø Airtight Aluminum Dust-Proof
The light engine is covered with aluminum alloy case,and using
the professional silicone gasket to seal each gap precisely to ensure
completely dustproof effect.It can not only protect,but also extend
the service life bulb.
Ø Environment friendly
All TRIOLION products are in line with the world's most stringent
environmental regulations such as
1,ROHS Toxic Substances Control States.
2,WEEE Rocycling Requirements.
Ø Intelligent Imang adjustment
Built-in intelligent image sensor for adjusting brightness and colors automatically ensure the uniformity of the each screen.It is effective and efficient when bulb replacing and regular maintenance to save time and efforts at least 70%.
Ø Dual CPU Design
Dual CPU design,one is for image processing,and the other one is for function controlled,operating depandently to make all system has fast and stable resonse.Also,under this design make color and brightenss auto adjustment more effectively.
Ø Redundancy
Equipped with the advance 3-color LED
light diode,a light source is composed of sdiode,
when a failure happened,the rest of the LED diode
still work well. We call this as Full Backup or Redundancy.
Ø Superior Low Noise Design
The professional fan followed our cooling system design to provide powerful wind for radiating,and only create 35dB low noise when operating which provide better friendly working environment.
Ø Outstanding Performance
LED light source has features with light-weight,energy-saving,high luminous efficiency,and long service life which can be
used continuously for up to 60,000hours,and
is 200% brightness than a traditional bulb.
LED-lit DLP
SXGA+/LED/Light Source
DLP® is a technology created by Texas Instruments and stands for its Digital Light Processing technology. With its consistent performance, it has become the industry-standard display technology.
Overview
DLP rear projection display unit, is well known as industry-leading technology in china, adopts new and advanced module design that can simplify the installation and routine maintenance of video wall, add display unit or other accessories freely according to your actual needs. It is designed especially for application for 7×24 hrs with a long lifespan. Besides, It also can provide the best solution for almost all environments including for conference rooms, control rooms, monitoring centers, commanding and dispatching centers, etc.

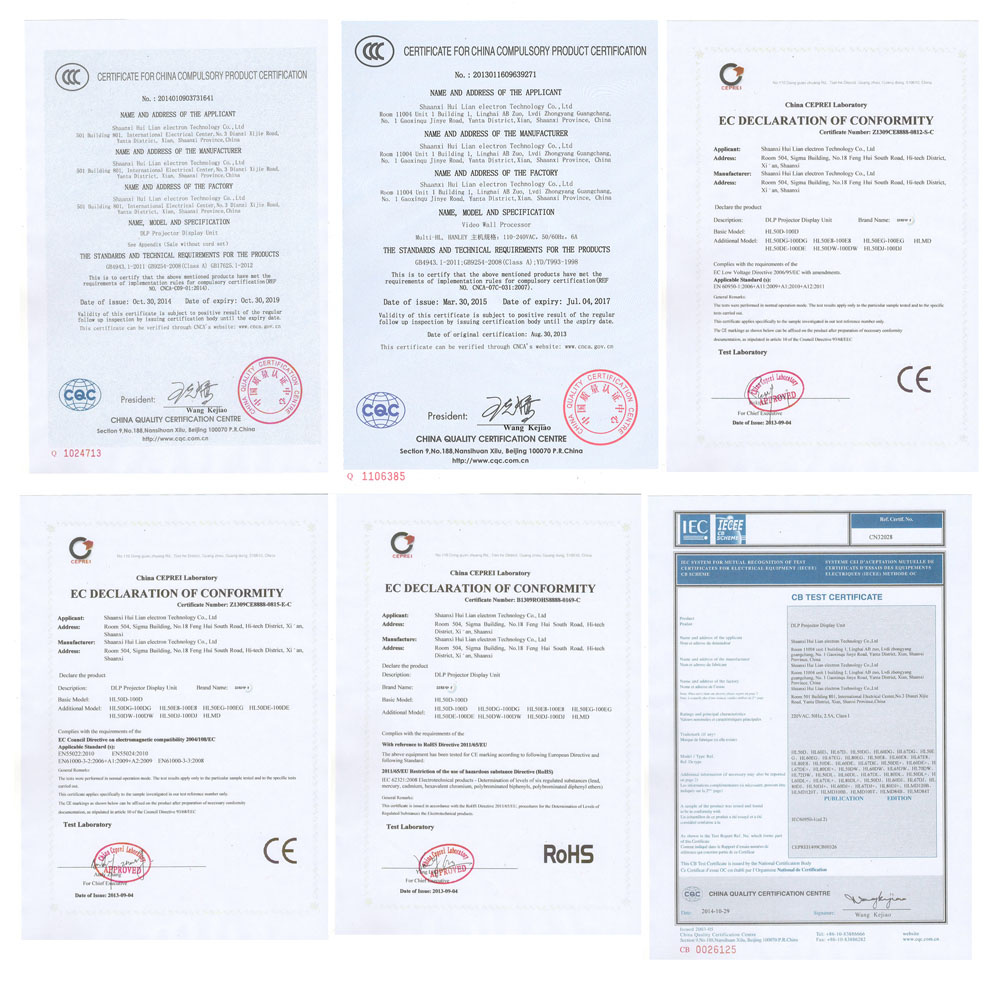

C. Certifications:

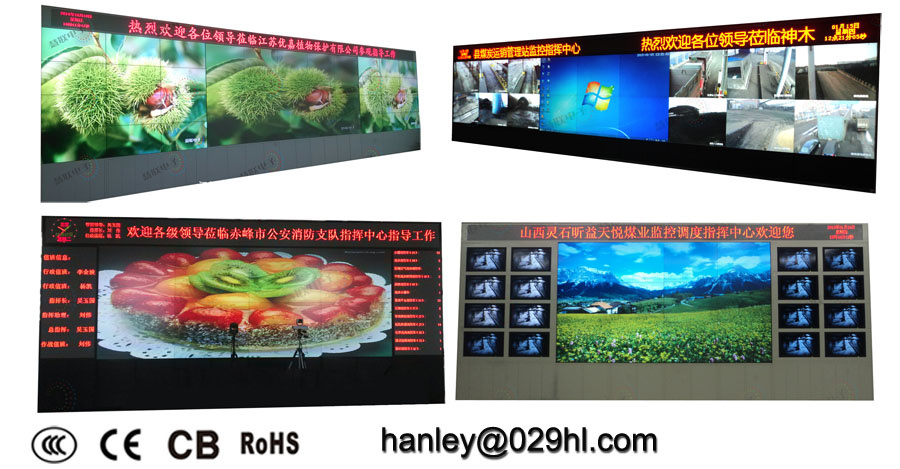

D:Main Application Case

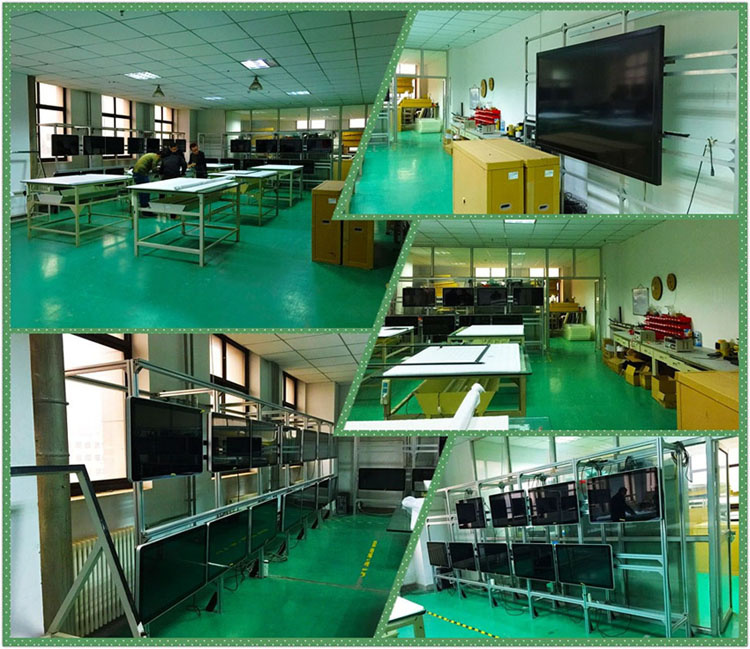

E:Workshop:
Company:Shaanxi Hanley Electronic Manufacturing Co.,LtdAddress: Xi'anHigh-tech Zone Kam Yip Road, 10th Floor, Tower A territorial waters 11004 Room.Tel: +86-029-68255561-813 68255560 83391813 83391823Fax: +86-29-68255560Mobile phone: +86-13924867583
Shaanxi Hui Lian Electron Technology Co., Ltd. Was established in 2006, which is a high-tech Chinese enterprise specialized in development, production and marketing of DLP/DID large splicing screen, LCD monitor, LCD advertising displays, LCD Touch screen Kiosk, LCD video wall and LED electronic display panel. We have established a nationwide network of sales and efficient after-sales service system in China.
Shaanxi Hui Lian company providing cost-effective products and customer-oriented services. Fully aware of the importance of quality system and environmental protection, we have established the first-class quality control and environmental protection systems. Our company has been awarded the ISO9001: 2000quality management system certificate, and our products have passed such domestic and international certification accreditations as CCC, CE, RoHS CB, and we has authority of big-screen software.
Good product quality, good service attitude, good corporate reputation, Shaanxi Hui Lian Electron Technology Co., Ltd has been in the field of hydropower production scheduling, military command, urban management, mining safety, environment monitoring, fire weather maritime achieved excellent results, also wish become your most trusted long-term partners.
Welcome you to contact us and Join us!
