| Prod Model: |
GT-WFX |
| Markets: |
North America,South America,Eastern Europe,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Precision Air Conditioner |
| Capacity: |
7.5~98kw |
| Refrigerant: |
R417A/R407c/R404A/R410A/R22/R134A |
| Size: |
Customized |
| Weight: |
Customized |
| Colour: |
White, Black |
| Application: |
Data Center, Computer Room, Serve Room |
| Type: |
Cabinet Air Conditioner |
| Operating Voltage: |
380/400 VAC |
| Mounting: |
Floor Standing |
| Certification: |
SGS |
| Condition: |
New |
| Application Fields: |
Data Center Room |

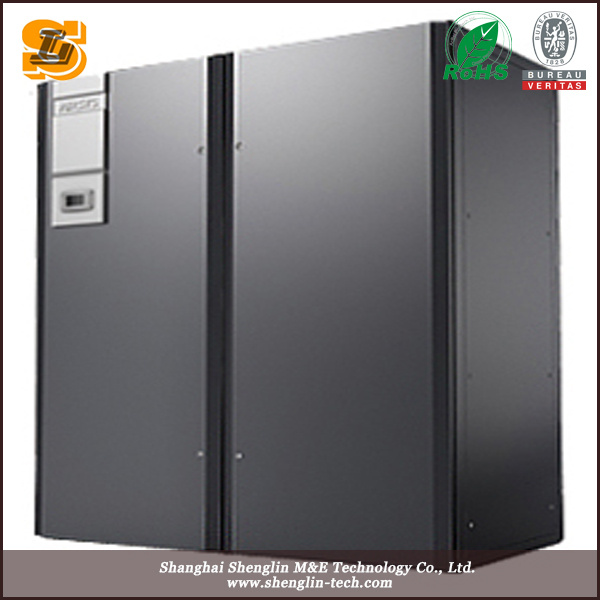

Product Description
Precision air conditionerFeatures 1.Cooling capacity: 7.5KW-93.6KW
2.Refrigerant: R22
(R407C/R410A
)3.Digital control mode, can reach high accuracy.
4.Keep the dust, oil fog and moisture from entering the internal of the equipments.
5.The structure design makes the installation more flexible. And the unit can be installed perfectly in the side or outside wall of the equipment.
6.Totally solve dust and moisture contamination issues caused by ventilation.
7.Widely used in telecommunications, broadcasting, electricity, automation and other industries out-door cabinet, IDC room cooling needs.
Technical Data| GT-HFM series constant temperature and humidity precision air conditioner specification 1 |
| Model GT-HFM-() | 07 | 12 | 15 | 18 | 20 | 24 | 27 | 30 |
| Specification | Total cooling capacity | kW | 7.5 | 12.6 | 15.3 | 18.6 | 21.8 | 24.2 | 27.5 | 31.8 |
| Sensible cooling capacity | kW | 6.9 | 11.7 | 14.1 | 17.4 | 20.2 | 22.4 | 25 | 29.5 |
| Electric heating | kW | 3 | 6 | 6 | 9 | 9 | 9 | 12 | 15 |
| Air volume 2* | m3/h | 1800 | 3250 | 4100 | 5200 | 5400 | 6600 | 7500 | 9000 |
| Outlet air pressure 2* | Pa | 25 | 25 | 25 | 50 | 50 | 75 | 75 | 75 |
| Noise 3* | dB(A) | 54 | 54 | 55 | 56 | 56 | 56 | 56 | 56 |
| Temperature control range and accuracy | ºC | 18~28,±1 |
| Humidity control range and accuracy | % | 45~70,±5 |
| Power | 3N-380V-50Hz |
| Input power 4* | kW | 6 | 11 | 12.6 | 16.8 | 17.5 | 19 | 23.9 | 28.9 |
| Indoor unit | Supply air fan | type | low noise centrifugal type |
| capacity | kW | 0.32 | 0.55 | 0.75 | 1.1 | 1.1 | 1.5 | 2.2 | 2.2 |
| Electrode humidifier | humidification volume | kg/h | 3 | 3 | 5 | 5 | 5 | 8 | 8 | 8 |
| Electric heating | capacity | kW | 3 | 6 | 6 | 9 | 9 | 9 | 12 | 15 |
| Evaporator type | Inner grooved copper tube and aluminum fin |
| Air filter | primary efffect plate type filter |
| Dimension | L | mm | 950 | 1200 | 1200 | 1200 | 1200 | 1600 | 1600 | 1600 |
| W | mm | 580 | 680 | 680 | 680 | 680 | 780 | 780 | 780 |
| H | mm | 1800 | 1880 | 1880 | 1880 | 1880 | 2000 | 2000 | 2200 |
| Weight | kg | 190 | 230 | 270 | 290 | 300 | 400 | 430 | 510 |
| Outdoor unit | Model GT-( )*quantity | WL08*1 | WL12*1 | WL15*1 | WL18*1 | WL20*1 | WL25*1 | WL27*1 | WL30*1 |
| compressor | type | Totally enclosed scroll type |
| quantity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| condenser type | Inner grooved copper tube and aluminum fin |
| Condensing fan | type | Low noise axial type |
| capacity | kW | 0.37 | 0.37 | 0.37 | 0.55 | 0.55 | 0.55 | 0.75 | 0.75 |
| Dimension | L | mm | 800 | 850 | 850 | 980 | 980 | 980 | 980 | 980 |
| W | mm | 800 | 850 | 850 | 980 | 980 | 980 | 980 | 980 |
| H | mm | 980 | 1080 | 1080 | 1080 | 1080 | 1080 | 1234 | 1234 |
| Weight | kg | 90 | 120 | 150 | 170 | 170 | 205 | 210 | 220 |
| Freon 5* | type | R22(R407C/R410A) |
| control method | Out balance expansion valve |
| Collecting pipe 6* | liquid pipe`s diameter | mm | 9.52(9.52) | 12.7(9.52) | 12.7(9.52) | 15.88 (12.7) | 15.88 (12.7) | 15.88 (12.7) | 15.88 (12.7) | 15.88 (12.7) |
| gas pipe`s diameter | mm | 15.88(12.7) | 19.05(15.88) | 19.05 ( 15.88) | 22.23 (19.05) | 22.23 (19.05) | 28.6 (22.23) | 28.6 (22.23) | 28.6 (22.23) |
Application1.server room,computer room2.workshop, exhibition hall, precision machine manufacture, metering room
Shanghai Shenglin is a professional supplier in China specializes in refrigeration units and parts. Now we have two factories. One is mainly manufacturing condensers and evaporators, the other one is mainly manufacturing central air conditioners like roof-top air conditioners, precision air conditioners and air handing units. Both of our factories are ISO certificated.
Our condensers and evaporators can be widely used in air conditioners, heat pumps, fan coils, air handing units, drinking machines, ice makers, dehumidifiers, laser machines, welding machines and other area. We can not only manufacture copper pipe condensers and evaporators, but also manufacture stainless steel pipe and aluminum pipe condensers and evaporators.
Our rooftop air conditioners are easy to be installed and maintained. As they are installed on the top roof, so they will not spare the room space. They are weather proof and have high efficiency.
Our precision air conditioner can control temperature in ± 1ºC and humidity in ± 5%. It can be used in data center and telecom base station. Most parts are world famous brand.
Our products have been exported to Europe, North of America, Middle East, South of Africa and southeast Asia.
We sincerely welcome customers all over the world to visit our company and set up business relationship for mutual benefit.
