| Prod Model: |
SZTP1200-8.4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
8.4" Inch |
| Structure: |
Film + Glass |
| Connector: |
Pin 4 Plug Connector |
| Thickness: |
1.4 ± 0.15 mm |
| Touch Media: |
Finger, Touch Pen,Glove |
| Type: |
Projection Restistive Touch Screen |
| Ratio: |
4:3 |
| Resolution: |
4096*4096 |
| Aspect Ratio: |
4:3 |
| Application: |
Household Appliances Related |
| Screen Type: |
Resistive |
| Resistive Touch Screen Type: |
Analog |
| Customized: |
Customized |
| Screen Size: |
8.4" Inch |
Product Description
Product Description

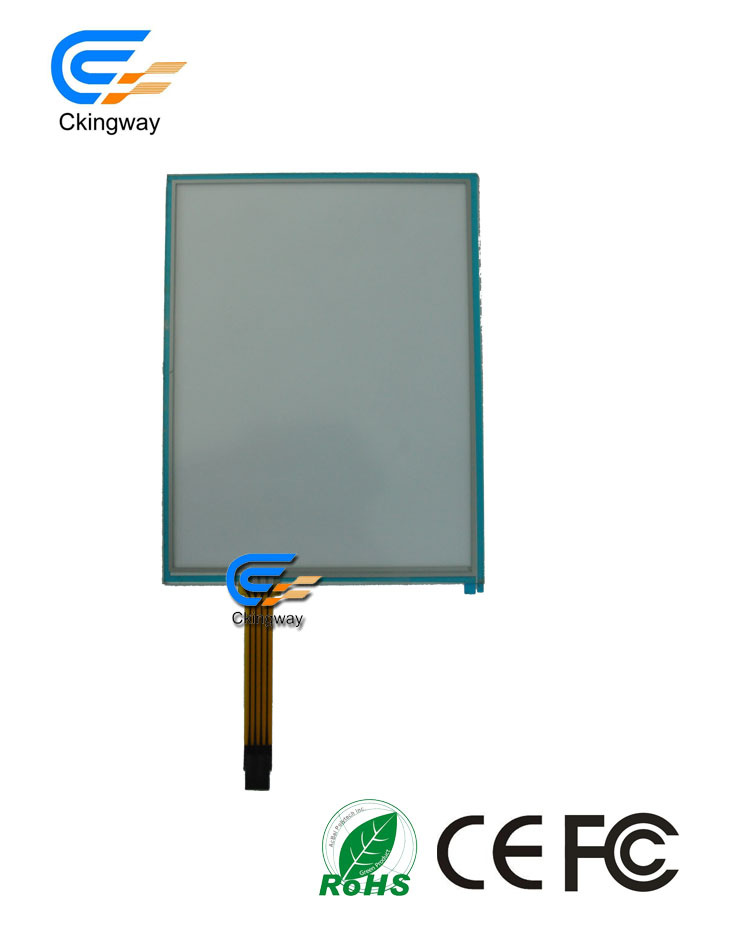

8.4 inch Resistive China CE FCC Rohs 8.4 inch Ckingway LCD touch screen USB touch display as below:
1.Operates with any medium (finger, pencil, gloves, etc.)
2. Consistently accurate , accurate response
3.Relatively resistant against dirt and spray water
4.Very thin frame
5. Exact registration and precision due to high touch resolution
6. Light and compact design
7. Lowest priced technology that is most frequently used
8. Available custom Service
4 wire restistive touch screen technology:
Ckingway 4-Wire Resistive products are perfect for industry machine GPS System or portable products where compact size and low power draw is a priority - such as PDAs, GPSs, smart phones and other hand-held applications. Our pressure sensing 4-wire resistive touch screens are cost effective and allow for input versatility with bare or gloved fingers and any pointing device.
Backed by a one-year warranty and 5 million touches in a single location, Touch International's 4-Wire resistive touch screens allow for ease of integration and use.
| Size | 8.4" inch |
| Structure | Film + Glass |
| Connector | Pin 4 plug connector |
| Thickness | 1.4 ± 0.15 mm |
| Touch Media | Finger, Touch Pen, Glove |
| Type | 4 Wire Restistive Touch screen |
| Ratio | 4:3 |
| Resolution | 4096*4096 |
| Response Time | ≤ 10 ms |
| Supply Voltage | 5V DC; 35 mA |
| Transparent | ≤ 78% |
| Screen Resistance | X:100-500Ω Y:200-1000Ω |
| Insulation Resistance | ≥20MΩ(10V DC) |
| Pressure | 30-150g |
| Surface Hardness | 3H |
| Life Span | > 1,000,000 time knocking ;
≥ 100,000 time in paddling |
| Operating Temperature | - 10ºC ~ +60ºC |
| Storage Temperature | - 20ºC ~ +70ºC |
| Storage Humidity | 20 ~ 85% RH (except congeal fog) |
| Custom Service | Available |
China CE FCC Rohs 8.4 inch Ckingway LCD touch screen USB touch display for Packing:
Anti-Static Foam+Paper Card+Ragged Bag+Carton
China CE FCC Rohs 8.4 inch Ckingway LCD touch screen USB touch display for Term of payment:
1.Full payment before delivery
2.Prepay 30% as the deposite,T/T 70% the balance before delivery
3.Prepay 50% as the deposite and mould fee ,T/T 50% the balance before delivery
4.Payment method can be nogotiated
About Warranty: 1 Year without damaged by people actions.
