| Prod Model: |
IFS2T-R4W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |

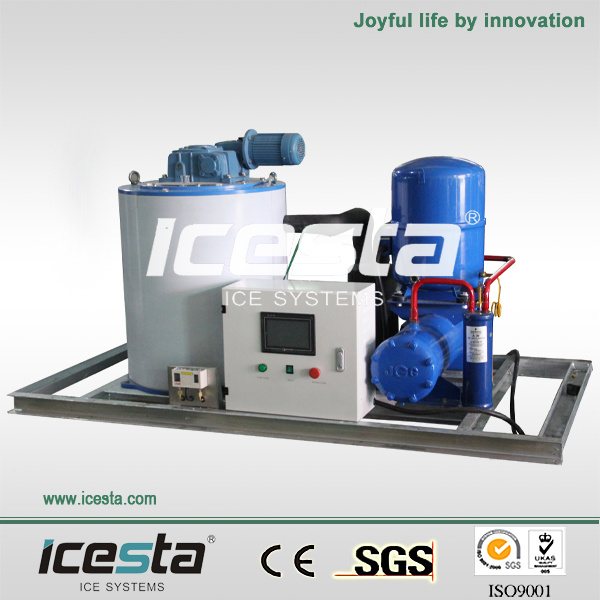

China Best Seawater Flake Ice Machine |
| Application: |
Industrial |
| Control: |
Electric |
| Material: |
Stainless Steel |
| Ice Shape: |
Plate |
Product Description
Innovation Features:
1. Bitzer compressor
2. Stainless steel evaporator
3. PLC controller
4. R404A refrigerant
The ICESTA seawater types flake ice machine always used on board, for its special design and completely stainless-steel-material used to prevent the machine from corrosion, and the instability due to the unfavorable condition and ship swaging in the sea.
On the fishing, the machines make ice from seawater directly, and also make heat exchange via the condenser. The low-temperature seawater as well assist salinity, makes the ice at an excellent ice degree, to give better fresh keeping for the fish.
The technical data based on 25° C ambient temp. 20° C water inlet temp.
The evaporating temperature: -30° C
The condensing temperature: 38° C
Power supply: 3P/380V/50Hz
The ice thickness: 1.6-2.3mm
Refrigerant: R404A
|
Model |
IFS1T-R4W |
IFS2T-R4W |
IFS3T-R4W |
IFS5T-R4W |
|
|
bitzer |
bitzer |
bitzer |
bitzer |
|
Technical parameters |
|
|
|
|
|
Compressor Model |
5HP |
12HP |
15HP |
30HP |
|
Ice production |
1t/24h |
2t/24h |
3t/24h |
5t/24h |
|
Refrigeration Capacity (KW) |
6.5 |
12 |
19 |
31.9 |
|
Evaporating Temp (C) |
-28 |
-28 |
-28 |
-28 |
|
Condensing Temp (C) |
38 |
38 |
38 |
38 |
|
Total power (KW) |
4.9 |
8.2 |
13.2 |
22.4 |
|
Compressor Input Power (KW) |
4 |
7.35 |
12 |
20.4 |
|
Reducer Power (KW) |
0.37 |
0.37 |
0.37 |
0.37 |
|
Evaporator Pump Power (KW) |
0.09 |
0.09 |
0.09 |
0.12 |
|
Condensing Pump Power (KW) |
0.4 |
0.4 |
0.75 |
1.5 |
|
Power Supply |
3P/380V/50Hz |
3P/380V/50Hz |
3P/380V/50Hz |
3P/380V/50Hz |
|
Feed in water pressure |
0.1Mp-0.5Mpa |
0.1Mp-0.5Mpa |
0.1Mp-0.5Mpa |
0.1Mp-0.5Mpa |
|
Refrigerant |
R404a |
R404a |
R404a |
R404a |
|
Flake ice Temp |
-8C |
-8C |
-8C |
-8C |
|
Thickness of Ice |
1.5mm-2.2mm |
1.5mm-2.2mm |
1.5mm-2.2mm |
1.5mm-2.2mm |
|
Standard Ambient Temp |
25C |
25C |
25C |
25C |
|
Standard water feed temp |
20C |
20C |
20C |
20C |
|
water Consumption (M3/h) |
0.14 |
0.164 |
0.235 |
0.38 |
|
Feeding tube |
1/2" |
1/2" |
1/2" |
3/4" |
|
Net weight of unit |
530KG |
580KG |
650KG |
1050KG |
|
Dimensions of unit (mm) |
1320*900*900 |
1500*1200*1200 |
1500*1200*1315 |
1800*1500*1470 |
