| Prod Model: |
BTA-250 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Type: |
Home Hifi Amplifier |
| Color: |
Black |
| Channle: |
2.1 Amplifier |
| Output Power: |
2*50 W Output RMS |
| Max Output Power: |
200 Watts |
| Output Impedance: |
4 Ohm |
| Bluetooth Version: |
CSR 4.0 |
| Frequency Respone: |
20-20kHz |
| Audio Amplifier Input: |
Bluetooth, RCA, 3.5mm, Optical |
| OEM: |
Yes |
| Type: |
Home Amplifier |
| Function: |
Bluetooth Amplifier |
| Usage: |
Home |
| Element Number: |
Push-Pull Amplifier |
| Used For: |
Professional |
| Conductive Mode: |
D |
| Tube Type: |
IC Amplifier |
| Sound Channel: |
2.1 |
| Voltage: |
110-240V |
| Output Number: |
2.1 |
Product Description

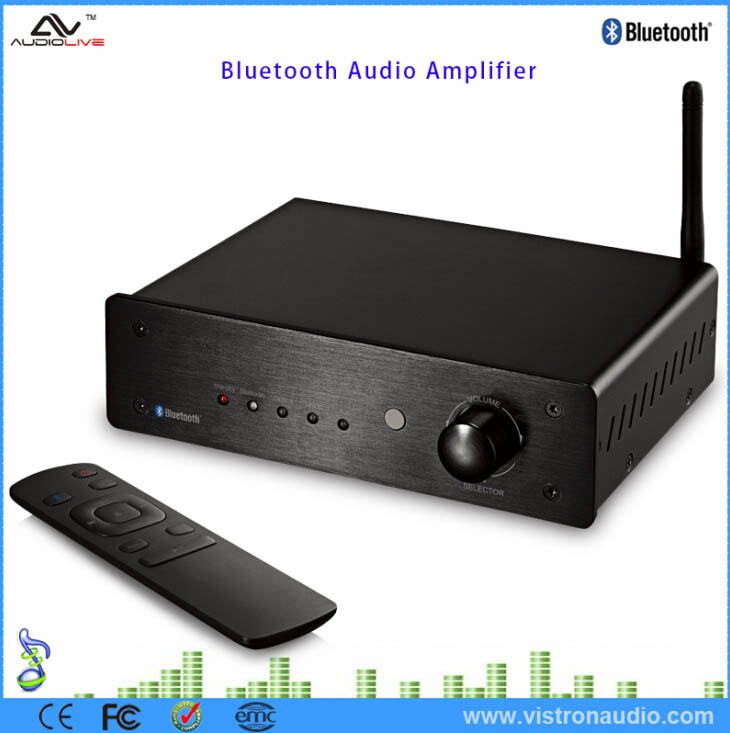

High performace home use bluetooth stereo audio amplifier
This bluetooth stereo power amplifier is the perfect solution for all of your home or office audio needs. Using the latest sound amplification technology,
this device is designed to perform and deliver clear and accurate sound. It allows you to connect audio sources not only by audio cables
anymore, but also by wireless Bluetooth technology, it makesthat this amp utilizes buletooth audio transmission and works with virtually
any Bluetooth-enabled device(iPhone, Android, iPad,Tablet,PC,etc).
Features of the Bluetooth Power Amplifier:
* The amplifier with 2*50 watts full range output for speakers.
* 1 channel output channel for subwoofer.
* Four input channels:Bluetooth,RCA,3.5MM,optical
* Bluetooth connection and phone control
* 110-240V external power supply
* The audio amplifier with LED status indicators.
* Bluetooth transmitter up to 10 meters.
* No any noise when the amplifier power ON/OFF
*The AMP with antenna for better siginal transmitter
*Bluetooth transmitter distance up to 10 meters.
*Item with remote control
*With Mute and Pause function
*Amplifier with standby function,and standy power less than 0.5W.
Specification of the Bluetooth amplifier:
Product name | BTA-250 Bluetooth power amplifier |
| Output power | 2*50 W |
| Peak output power | 200 W |
| THD | < 0.05% (@ 1kHz) |
| S/N Ratio | > 95db |
| output noise | < 1mv |
| Input sensitivity | 580 mv |
| Frequency response | 20-20K Hz |
| Work efficiency | more than 85% |
| Class type | Home Class D power amplifier |
| Product working voltage | AC 110-240V/50Hz |
| Number of channels | 2+1,2 speaker outputs,1 subwoofer output |
| Input methods | Bluetooth,RCA,Line in,Optical |
| Finish color | Black |
| Amplifier panel material | Aluminum |
| Net weight | 1.3 KGs |
Bluetooth pairing and operation
How to pair
Switch on the Bluetooth mode of the power amplifier and your audio device, the LED light of the amp will start flashing, the unit enter into
Bluetooth pairing mode,you will see "BTA-250" in your audio device, then connect and pair the amp, no need password.
Notice
*Only one device can be connected at a time when usuing Bluetooth way.
*It can be still connected when you switch back to BT mode from other input mode if your device BT is opening.
*The bluetooth power amplifier will connect with the previous device automatically next time.
*The distance from this unit and your device could be up to 10 meters, but please notice that it may vary much based on the environment.
*Bluetooth is perfectly compatible with Apple/Android/Windows mobile phones, iPad, Tablet, PC ,etc.
Operation Guide for the Power Amplifier:
>Connect subwoofer to SUB OUT.
>Connect speakers to the SPEAKERS OUTPUT,make sure you connect the -/+ and the L/R cables to the right input.
>Connect CD player via its RCA cables to the AUX input.Make sure you connect the "L" plug to the left input channel and the "R" plug to the right input channel.
>Connect your phone/tablet/MP3/PC via an 3.5mm audio jack cable to LINE IN.
>Connect DVD player via its optical fiber cable to the OPTICAL input.
Note:Remember to select the desired audio source to input by press remote button or selector.
Please make sure your device paired up with the bluetooth amplifier via Bluetooth when you need Bluetooth input.
Sum up:
This item is new designed compact high performance Bluetooth Audio Amplifier.We use the CSR Bluetooth chip,4.0 version with EDR,transmitter up to 10 meters.
Bluetooth receiver is perfectly compatible with Windows, Android, apple IOS system and the computer terminal, you can use a variety of mobile audio playback of high quality music.
Perfect transmission of high quality music,our bluetooth audio amplifier with high efficiency about 90%.
There is no noise when the audio amplifier power on/off.
With mute / standby / over heat protection function.
The amplifier with nice remote control.
Not only by bluetooth input,also via RCA,3.5MM and optical,listen to super music quanlity with our bluetooth power amplifier!
Packaging & Shipping
Packing Including:
1 X Bluetooth audio amplifier
1 X Power cord
1 X User manual for the amplifier
1 X Remote control
1 X Cr2032 battery for the remote
1 X Giftbox
BTA-250 Bluetooth Audio Amplifier Packing info:
(1).One set bluetooth audio amplifier in a giftbox
(2).Gift box size: 314*225*77 mm
(3).Eight set audio amplifiers packed in a outer carton
(4).Carton size: 645*335*250 mm
(5).3640 pcs BT AMP loaded in a 20' container;
7640 pcs Portable HIFI Amplifiers loaded in a 40' container.
