| Prod Model: |
HY-H7 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| GSM Card: |
Support |
| Language: |
10 (Optional) |
| RFID Cards: |
Support 8 PCS |
| Standby Battery: |
8 Hours |
| Emission Distance: |
≥300 Meters |
| Number Of Zones: |
4 Wired Zones + 32 Wireless Zones |
| GSM Band (Alarm): |
850MHz, 9000MHz, 18000MHz, 1900MHz |
| Alarm Communication Protocol: |
Ademco Contact ID |
| Working Mode: |
Passive |
| Certification: |
CE |
| Application: |
Outdoor |
| Sensor Type: |
Infrared Alarm System |
| Working Principle: |
Electromagnetic |
| Transmission Mode: |
Wireless |
| Alarm Volume (',within 1m): |
≥90dB |
| Receive Frequency: |
433.92MHz |
| Usage: |
Smoke |
| Type: |
Home/Business Anti-Theft Alarm System |
| Signal Transmission: |
Wired/Wireless Alarm |
Product Description

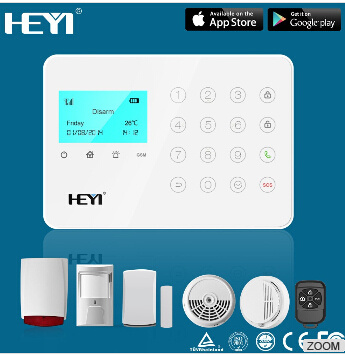

HY-529 GSM Alarm System
1. Main Features
1. Touch-screen, fashionable appearance and long service life.
2. LCD menu, English image-text display (Innovative operation).
3. It supports Card Access System. Users can easily swipe card to disarm without the remote controller. SMS of swiping will be sent. (optional function).
4. Built- in breathing LED will be auto-OFF when the system is operated / programmed.
5. Avoid wrong operation by child with the function of Child-lock.
6. Local temperature displayed with built-in temperature sensor. (Fahrenheit and Celsius are optional).
7. Support 4 pieces of alarm clock and bell ring time can be adjusted.
8. Designed by classic codes, including Program Code, User Code and Duress Code.
9. Support 32 wireless zones and 4 wired zones. The zones of 1st - 4th are universal by wireless zones and wired zones. 3 wireless detectors for each wireless zone and 11 zone types are optional for the zones of 1st - 16th: Delay, Burglar, Perimeter, Fire, Gas Leakage, Duress, Panic, Medical, Doorbell notification, Doorbell alarm and Suspend. The zones of 17th -32nd are Burglar type.
10. Support 8 remote controllers. Home Arm and Away Arm can be set.
11. Operated by IOS or Android phone of APP function.
12. Support 4 speed dialing numbers or direct-call by inputting number in keypad. Support HR answering call.
13. Support door open/closed notification, alerted by Arming failure while door or window opens.
14. Support one button for panic calling, two way communications and SOS for elders.
15. Support remote operation by SMS for Arming, Disarming, Monitoring and Querying status etc.
16. 2 Arming/Disarming timers can be set based on weekdays and weekends.
2. Alarm Parameter
Alarm Communication ways |
alarm signal transmitted
via GSM network |
Power | AC 110V~240V |
| Alarm Communication Protocol | ADEMCO Contact ID | Standby Battery | 32 wireless zones +4 wired zones |
| Siren Output Power | <150mA | Number of Zones | 32 wireless zones +4 wired zones |
| GSM Working Frequency | GSM Working Frequency | Range of Temperature | -10ºC ~ +50ºC |
| Emission Distance | ≥300meters | GSM Emission Frequency | ≤2W(850/900MHz),≤1W(1800/1900MHz) |
| Receiving/Emission Frequency | 433.92 MHz /868MHz | Color of Lens | Ivory white alarm |
| Size | 195×136×31mm(L×W×H) | Range of Humidity | 40 ~ 70% |
