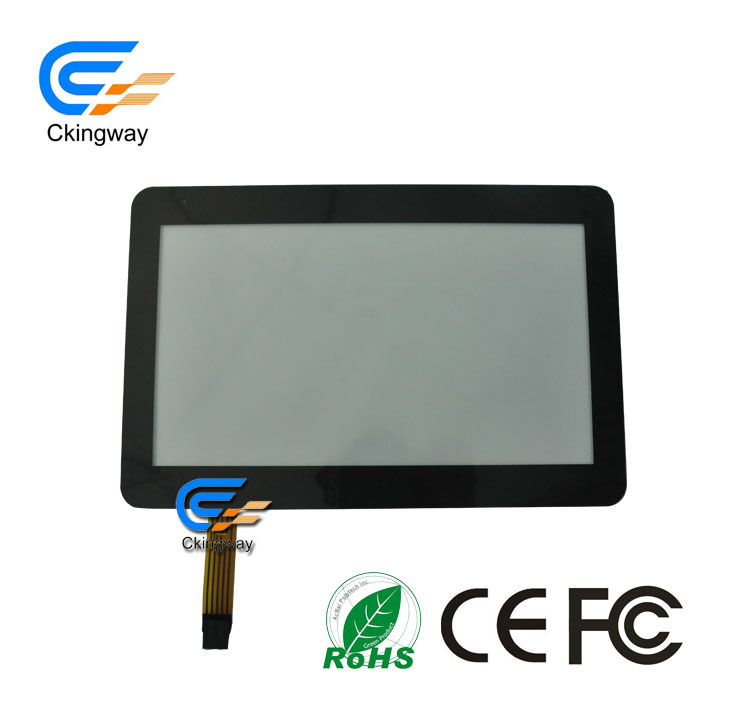

Cheap 7'' Resistive Safety System Touch Screen 2016

Name: Cheap 7'' Resistive Safety System Touch Screen 2016
Brand: ec-portal.com
SKU: 782986415
Availability: InStock
Rating: 4.8 (140 reviews)

Price:	US $ 6.9-10/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Send Inquiry

Showroom Product Company Profile

Prod Model:	SZTP1263-7-W5R
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name:	Cheap 7'' Resistive Safety System Touch Screen
Size:	7.0" Inch
Structure:	Film + Glass
Connector:	Pin 5 Plug Connector
Thickness:	1.4 ± 0.15 mm
Touch Media:	Finger, Touch Pen
Type:	5 Wire Resistive Touch Screen
Ratio:	16:9
Resolution:	4096*4096
Aspect Ratio:	16:9
Application:	GPS System
Screen Type:	Resistive
Resistive Touch Screen Type:	Analog
Screen Size:	7 Inch
Customized:	Custom Service Available

Product Description

Product Description

The Feahters Of Cheap 7'' Resistive Safety System Touch Screen 2016 As Bellow:

1. The Size Of The Product Is 7.0 Inch.
2.It's High Accuracy And Sensitivity.
3.It Can Adapt To Adverse Environmental Conditions.
4.It's 5 Wire Restistive Touch Screen With 5 Plug Connector.
5.Can Be Touched By Finger Or Touch Pen.

Size	7.00" inch
Structure	Film + Glass
Connector	Pin 5 plug connector
Thickness	1.4 ± 0.15 mm
Touch Media	Finger, Touch Pen
Type	5 Wire Resistive Touch screen
Ratio	16:9
Resolution	4096*4096
Response Time	≤ 10 ms
Supply Voltage	5V DC , 35 mA
Transparent	≥ 75%
Screen Resistance	≤250Ω
Insulation Resistance	≥20MΩ(10V DC)
Pressure	50 - 150 g
Surface Hardness	3H
Life Span	> 1,000,000 time touches
Operating Temperature	- 10ºC ~ +60ºC
Storage Temperature	- 20ºC ~ +70ºC
Storage Humidity	20 ~ 85% RH (except congeal fog)
Custom Service	Available

Packing & Delivery Terms Of Cheap 7'' Resistive Safety System Touch Screen 2016:

Packing: Individual OPP Bag or Anti Static Bag Packing or Bubble Packing, Put all the goods into the FOAM Box, Outside with ragged bag, Then put it in the Carton, Pack it with tape and seal.
Delivery:3-5 Days After Your Full Payment.

The Terms Of Payment Of Cheap 7'' Resistive Safety System Touch Screen 2016:

1.Full payment before delivery.

2.Prepay 30% as the deposite,T/T 70% the balance before delivery.

3.Prepay 50% as the deposite and mould fee ,T/T the balance before delivery.

4.Payment method can be nogotiated.

About Warranty: 1 Year without damaged by people actions.

Ckingway introduction

Ckingway technology Co., Ltd. Established in 2009, we focus researching & developing, design, manufacture and sales integrated into one target on resistive touch panel, capacitive touch panel and LCD/LCM (liquid crystal display module). Coming along with electronics consumer products increasing rapidly recently, our product has been holding steady marketing share in touch display field under our teamwork strongly, while industry chain getting more ruggedized, professionalized.

Ckingway's product range of application widely, is applied to automobile electronic, medical equipment, industrial control, security monitor and digital products etc. It was approved ISO9001 quality manager get into inside operation by third party certification "SGS" organization, all products met RoHS testing request completely and have RoHS certification.

Ckingway holds business ideology report that: Quality and service will not stopping to develop to be excellent., creat value for customers. We implement management policy with institutional and hommization combination, for" connecting people, as career into integrity, profits shared each other, progressing by together" talent development strategy. R&D team with efficient and unite we had, can be make a response to market rapidly.
