| Prod Model: |
Hv series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Touch Points: |
2 10 Points Touch |
| LED Panel Brand: |
Sharp |
| LED Resolution: |
1080P |
| Whiteboard Touch Technology: |
Infrared |
| PC Connection: |
International OPS Mini P |
| Touch Frame Warranty: |
3 Years |
| Software: |
Education Software for Free |
| Support System: |
Win7, Win8, Linux, Mac |
| Usage: |
School, Office, Computer, Digital Whiteboad |
| Place Of Origin: |
Guangdong, China (Mainland) |
| Screen Size: |
>60 Inches |
| Aspect Ratio: |
4:3 |
| Application: |
Education and Training System |
| Screen Type: |
Infrared |
| Resistive Touch Screen Type: |
Digital |
| Customized: |
OEM Is Available |
Product Description

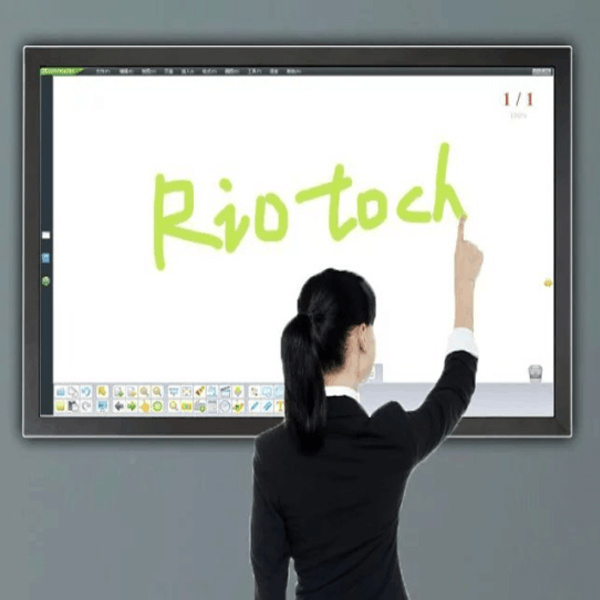

Cheap 55" 65" 70" 84" Infrared Multi Touch screen monitor/touch panel/interactive touch screen for education
Brief description:
1. IR technology is more stable.
2. finger or pen or any opaque object can touch, no need special pen
3. Widely size : 47'',55'',65'',70'',84''
4. Multi-touch :2/10/30 Touch Point.
5. OEM service and free teaching software
6. 3 years warranty of touching frame give you zero risk and more profit.
7. Open frame and build-in line, easy repair and more safety.
9. Certification: CE, FCC, ROHS,ISO
Specification:
| LCD Parameters | Size | 64.5" |
| LCD Brand | AUO |
| Packing Parameters | External Size | 1558*928*95.9mm |
| Touch Size | 1428.5*803.5mm |
| Plywood Carton Size | 1690*270*1180mm |
| Net Weight | 63KG (without wall-mounted) |
| Gross Weight | 80KG |
| Carton Size with wooden box | 1750*330*1300 +/- 50mm |
| Gross Weight with wooden box | 115kg |
| Power Parameters | Power | < 250W |
| Standby Power | <1W |
| Display Parameters | Active Display Area | 1428.48 (H) x 803.52 (V)mm |
| Pixel Pitch | 0.744mm |
| Display Colors | 1.07 billion colors |
| Number of Pixels | 1920x1080 pixels |
| Brightness | 360cd/m2 |
| Viewing Angle | 178 Degree |
| TV Parameters | TV Standard | NTSC M/N,PAL BG/DK/I/H,SECAM L/L |
| Multimedia Formats | MPEG1,MPEG2,MPEG4,H264,RM,RMVB,MOV,MJPEG |
| USB2.0 Multimedia Playback | Vido/Audio/Picture |
| USB System Upgrading Online | Support USB online upgrading function |
| Resolution | Max. 1080P format |
| HDMI | V1.3, 720P/1080P |
| HDCP | V1.1 |
| Scanning Format | Support 1080i Video crisscross DAS (Dynamic Adaptive Scan ) |
| Sound Control | Automatic sound standard detection, support for balance adjustment and surround Sound |
| Sound Output | 2X10W |
Input and
output ports | USB Multimedia Input ports | 2-line |
| Touchscreen port | 1-line USB2.0 |
| HDMI Input port | 2-line (HDMI1 keep for Inside OPS) |
| VGA Input port | 1-line |
| PC Audio port | 1-line |
| UPBRP audio and video input port | 2-line |
| AV Input port | 2-line |
Touch
parameters | Touch Technology | Infrared touch technology |
| Touch mode | Single, multipoint,Mouse click |
| Inductive objects | Finger,pen or any other opaque objects |
| Inductive size | Diameter≥5mm |
| Resolution | 32767*32767 |
| Response time | 1) First dot(click):8ms, continuously(writing):3ms
2) multipoint click:first dot(click):8ms,continuously(writing):8ms
3) Mouse click:first dot(click):8ms,continuously(writing):8ms |
| Cursor speed | UP to 300 dots/s Multipoint,mouse click:125 dot/s |
| Operating life | ≥60,000,000 times to click |
| Power | USB power supply (4.6-5V, DC) |
| Power consumption | ≤1w |
| Operation Systerm | Windows 8, windows 7, XP, Mac, Linux |
| Calibration | HID devices standard, accord with Win7 multi-touch protocol, no need special software to calibrate, just use Table PC setting to finish the calibration. |
| Anti-light decay function | Anti-light decay circuits to prevent the performance degradation caused by long working hours |
| LED Test Software | Supply touch screen LED test software to test the function of each couple of the LED lights and the drawing functions |
| Antilight interference function | can work properly in direct sunlight condition |
All in one touch monitor for education
Infrared Touch Technology
Interactive Whiteboard Solution
Finger or pen touch and write
Dual touch
Without projector all in one touch monitor
Win7 32bit and 64bit multi-touch
Support Microsoft surface
Sumsung or LG LCD
HDMI,USB,VGA
PC & TV switch
FAQ
1. Q: Are you a factory?
A: Yes, we are a factory, we have our own production line.
2. Q: what's your products' quality control?
A: Our tenet is "Quality first, Prestige first". We are pay more attention to the beginning till the very end of the production. Our products have passed the CE & ROHS & ISO & FCC etc. certification.
3. Q: What's your after-sale service?
A: We can offer 100% guarantee on our product. If any problems, you will get our reply within 24 hours.
4. Q: What's your MOQ?
A: Generally, our MOQ is 1 pcs. But the order quantities are bigger, the discounts are bigger.
5. Q: Could you offer the OEM service?
A: Yes, we can provide the OEM service if our customer requested.
6. Q: How about the delivery?
A: The delivery would be with in 3-15 days according to the order quantity and size of the items.
