| Prod Model: |
TM092905 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Outline Size: |
146.0X62.5X14.0mm(with Backlight) |
| View Area: |
123.0X42.5mm |
| Display Type: |
Stn/ Blue Negative, Transmissive |
| Viewing Direction: |
6:00 O'clock |
| Operation Voltage: |
Vop=5.0 V |
| Drive Method: |
1/16 Duty; 1/5 Bias; Vdd=5.0V |
| Backlight Type: |
White LED Vled=3.3V;1LED<=100mA |
| Display Dots Matrix: |
20×4 Character Dots Matrix LCD Display |
| Usage: |
Notebook LCM |
| Digital LCD Module Type: |
Counting Module |
| Touch Screen Type: |
Capacitive |
| Type: |
Graphic |
| Response Time: |
2ms |
| Viewing Angle: |
TN＋FILM |
| Display Technology: |
STN |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven |
| LCD Drive Mode: |
Static Drive LCD Module |
| Customized: |
Customized |
Product Description
Product Description
| Outline Size: | 146.0x62.5x14.0mm(with Backlight) |
| View Area: | 123.0x42.5mm |
| Display Type: | STN/ BlUE NEGATIVE, TRANSMISSIVE |
| Viewing Direction: | 6:00 O'Clock |
| Operation Voltage: | VOP=5.0 V |
| Drive Method: | 1/16 Duty; 1/5 Bias; VDD=5.0v |
| Controller IC: | ST7066U Or Equiv |
| Backlight type: | White LED VLED=3.3V;1led<=100mA |

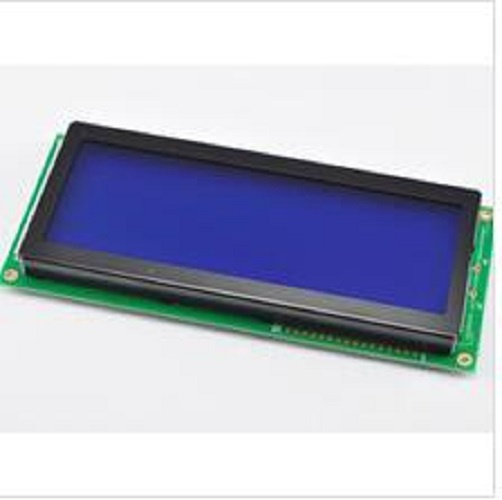

| Display Dots Matrix: | 20×4 Character dots matrix LCD Display |
| Operating Temp: | -20ºC TO +70ºC |
| Storage Temp: | -30ºC TO +80ºC |
Suzhou Tomy Optronics Co., Ltd (TOMY) established in 2010, specializes in the design, development, production, sales and services of state-of-the-art liquid crystal display modules and related electronic products.
TOMY mainly produces thousandds of types of standard or customized TN, STN, color STN and TFT-LCM products. Application of our products include: Instruments, office equipments, messages, telecommunications, home appliances as well as automotives.
Our TOMY Optronics Is a professional LCD manufacturer with 19 years' Experience. Our production equipment and technology brought in from Japan. TOMY is equipped with a young and highly qualified management and technology team dominated by postgraduate students. This guarantees that TOMY will take the lead in its industry.
TOMY has passed ISO 9001, ISO 14001, TS 16949 certifications as well as RoHS and REACH certification. TOMY is confident and determined to overcome endless challenges to become the best small-to medium sized display customization company.
