| Prod Model: |
SZL |
| Boiler Capacity: |
1ton Ton 30ton for Steam Boiler |
| Boiler Pressure: |
4bar to 25bar |
| Boiler Advantage: |
All Kinds of Biomass as Fuel, Saving Cost |
| Boiler Main Features: |
2 Drums |
| Boiler Shipping: |
Packing |
| Boiler Installation: |
Easy to Install |
| Boiler Operation: |
It Is Stable |
| Boiler Quality: |
Great |
| Boiler Efficency: |
85% |
| Function: |
Steam Boilers |
| Installation: |
Packaged Boiler |
| Structure: |
Water Tube |
| Media: |
Hot Water |
| Water Circulation: |
Natural Circulation |
| Drum Placement: |
Horizontal Boiler |
| Pressure: |
Pressure |
| Manufacturing Level: |
A |
| Burning Style: |
Chamber Combustion Boiler |
| Usage: |
Industrial |
| Fuel: |
Wood, Rice Husk, Saw Dust, Wood Chips, etc Biomass |
Product Description

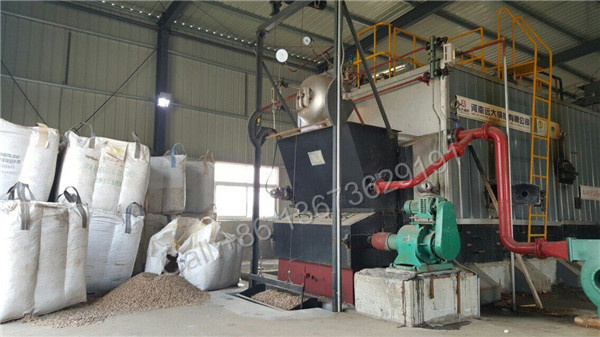

Chain grate coal/biomass/wood burning boilers/stoves
Chain grate coal/biomass/wood burning boilers/stoves usage:
The boiler can be used for producing desired steam for product manufacturing process in the weave factory, printing and dying, papermaking, and rubber, plastic chemical, pharmaceutical, etc. And for heating room bath, air conditional, and daily life water in the factories, departments, hotels, schools, restaurants, services industries etc.and boiler heating for hotel,school,hospital etc.
Chain grate coal/biomass/wood burning boilers/stoves
Chain grate coal/biomass/wood burning boilers/stoves : it is the world's fourth largest, second only to coal, oil and natural gas. At present, many countries are active in research and development and utilization of biomass energy, biomass including agricultural waste such as wheat straw, rice straw, soybean straw, peanut shells, corn cobs, bagasse, and so on.
Chain grate coal/biomass/wood burning boilers/stoves models:
- Model: SZLspecialized bagasse boiler
Name: bagasse boiler
Rated capacity: 2ton 4ton 6 ton 8 ton packaged style (10 ton 15 ton 20ton available but assembled styple )
Rated steam pressure: 1.25/1.6 MPa
Rated steam temperature :194/204 °C
Fuel: wood pellet, woodchips, wheat straw, rice husk, bagasses, sawdust etc.
Chain grate coal/biomass/wood burning boilers/stoves advantages:
bagasse boiler with unique hopper design: Withing large hopper design, according to the amount of heat automatic to control fuel delivery, isolation flame and to prevent tempering
Bagasse boiler desigend with professional air distribution settings: reasonable arrangement for the wind and the second time segment with the wind ratio, easy to control the furnace temperature to avoid coking, burning more fully
Bagasse boiler with new cycone chamber : separate cyclone burning chamber, to achieve a dust, and can be fully burn fuel, improve fuel burn rate of the boiler thermal efficiency
Chain grate coal/biomass/wood burning boilers/stoves specification:
| Model | Rated capacity | Rated pressure | Boiler efficiency | Dimension | Delivery Mode |
| t/h | Mpa | % | mm |
| SZH2-1.25/2.5-AII | 2 | 1.25/2.5 | 81 | 4850×2690×3468 | Package Bolier |
| SZH4-1.25/2.5-AII | 4 | 1.25/2.5 | 81 | 5450×3040×3468 |
| SZL2-1.25/2.5-AII | 2 | 1.25/2.5 | 81.6 | 5960×2960×3468 |
| SZL4-1.25/2.5-AII | 4 | 1.25/2.5 | 81.6 | 6510×3130×3468 |
| SZL6-1.25/2.5-AII | 6 | 1.25/2.5 | 81.6 | 7830×3346×3468 |
| SZL8-1.25/2.5-AII | 8 | 1.25/2.5 | 81.8 | 8200×3346×3468 |
| SZL10-1.25/2.5-AII | 10 | 1.25/2.5 | 82 | 8500×3346×3482 | Assembled Boiler |
| SZL15-1.25/2.5-AII | 15 | 1.25/2.5 | 82.3 | 9583×3400×3550 |
| SZL20-1.25/2.5-AII | 20 | 1.25/2.5 | 82.3 | 11600×3460×3520 |
Packaging & Shipping
Chain grate coal/biomass/wood burning boilers/stoves shipping details :
Company Information
Henan Yuanda Boiler Factory History (China)
General introduction of Yuanda Boiler Advantage: (China)
Henan Yuanda Boiler Factory Location: Our boilers production base locates in Xihua county, Henan province, the central part of China
Boiler Production Scope: Professional Industrial boilers manufacture with over 60 years' experience in boiler design, technique, production, installation and operation.
Boiler Product capacity: Annual production capacity of industrial boilers up to 5000 t/h,The products series include more than 150 kinds in steam boiler&hot water boiler and thermal oil boiler etc
Exported experience: So far,we have sold to more than 80 countries within 10 years, such as in South Asia, in South-east Asia, in Middle East, in Africa Russia, Ukraine in Eruope and Mexico, Chile in South America. Our products have gained excellent reputation all over the world.
Warmly welcome to visit our factory!
Yuanda Main products
1. DZL coal boilers (1-35T/H, 0.7-29MW)
2. WNS oil/gas fired boilers (0.3-20T/H, 0.35-14MN)
3. SZL series coal/biomass boilers (2-35T/H, 1.4-29MW)
4. LNB series gas boilers (0.3-10T)
5. LHS series vertical gas/oil fired boiler(0.3-1T)
6. AAC brick/block making machine
How to contact us ?
Contact: Cherry li
Phone : 0086 13673629191
Henan Yuanda Boiler Co., Ltd. Was established in 1956, as one of the leading enterprises which first obtained the national boiler manufacturing license in China.
We are the member of China Industrial Boiler Association and China Welding Association. We have passed ISO9001: 2000 international quality system certification.
Our company always keeps long-term and close relationships with nationally noted universities and science research units. We have the support from international level experts and experienced and specialized persons in boiler industry. Fifty years' experience in professional development, manufacture, installation and operation makes our annual production capacity of industrial boilers up to 5000 t/h and one of our various pressure vessels up to 6000 t/h.
Our main products include Our main products include more than 150 kinds, namely,
1. DZL new type water fire tube coal fired boilers (1-35T/H, 0.7-29MW)
2. WNS series oil/gas fired boilers, condensing boiler (0.3-20T/H, 0.35-14MN)
3. SZL series water tube biomass boilers (2-35T/H, 1.4-29MW)
4. DZH series manual type wood/coal fired boiler
5. LSC and LHS series vertical coal/wood/gas/oil fired boiler(0.3-1T)
6. YLW, YYW and YQW series thermal oil boiler
7. Z-WNS series gas/oil fired vacuum boiler
8. AAC brick/block making machine
We sell well in more than 30 provinces and regions in China and in south-east Asia, Asia, Africa, South America, Middle East, Russia, etc.
"Quality first, technical innovation" is our guideline. We attach importance to introducing new technology and developing new products. All kinds of preferential policies and comfortable environment for talents make our company and our talents grow together.
We have close relationship with UCLA, SCUT, Zhengzhou University and Beijing Zhiguang Boiler institute and have long-term cooperation with them. We also have our own CAD workstation, which provides strong guarantee for R&D and manufacture.
We persist in taking "Technical innovation, service society" as development goal, and "quality-oriented, good faith world" as enterprise idea, trying our best to produce heat-supply products. "Creating the maximum value for clients and providing all-round and round-the-clock service" are our lofty missions.
Yuanda Boiler looks forward to making a brilliant future with you!
