| Prod Model: |
Infrared heater SGR2002 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Ceramic Infrared Gas Heater for Food Production Li |
| Co: |
Less Than 80ppm |
| Life: |
Above 11000hr |
| Conversion Rate: |
90% |
| Nox: |
Less Than 10ppm |
| Gas Consumption: |
0.55kg/Hr |
| Chx: |
Less Than 50ppm |
| Plate: |
Ceramic Plate with Catalyst |
| Calorific Value: |
6500kcal/Hr |
| Working Pressure: |
2800~5000PA |
| Function: |
Hot Air Boiler |
| Fuel: |
Gas-Fired |
| Installation: |
Packaged Boiler |
| Drum Placement: |
Vertical Boiler |
| Pressure: |
Pressure |
| Usage: |
Industrial |
| Structure: |
Ceramic |
| Media: |
Infrared |
| Water Circulation: |
Infrared Burner |
| Manufacturing Level: |
CE |
| Burning Style: |
Infrared Burner |
Product Description

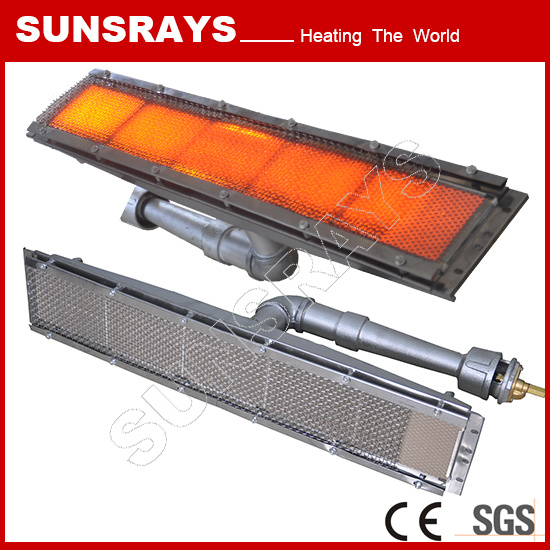

Ceramic infrared gas heater for food production line
The best select--super 2002 infrared burners
1) taiwan ceramic tiles
2) state to art assembling.
3) out standing performance.
The "super2002" ceramic tile infrared burners are sunsrays' most popular products.They are designed and produced for multi-purposes, such as the coating curing, pretreatment of drying, powder coating, pre drying of textile printing and dyeing, food processing line, carpet baking glue, asphalt pavement heating and repair, latex dipping industries, etc.
The specifications:
| Model | SGR2002 |
| Gas consumption | 0.55kg/hr |
| Calorific value | 6500kcal/hr |
| Size | 710mm x 135mm x 185mm |
| Weight | 9kg |
| Conversion rate | 90% |
| Plate | Ceramic plate with catalyst |
| Working pressure | 2800~5000pa |
| Color | Silver |
| Customized | Yes |
Ceramic infrared gas heater for food production line advantages:
1) safe:Premixed the air&gas in 2800 mpa low-pressure natural ejector mode, more safety and reliable
2) high efficiency:Honeycomb ceramic plate with strong heat storage capacity, good effect of radiation, conversion rate≥90%,
3) simple structure, easy install:The whole system is consist of there parts, gas/air delivery, burner, ignition and control.Compact structure, easy installation and debugging.
4) energy saving environmental friendly:Full combustion, high efficiency, no waste water/gas, no noise pollution,
5) accurate control:Realize accurate control of combustion by use inverter, actuators.
Other products you may be interested in:
| Model | Size | Weight | Gas consumption | Calorific value | Uses |
| SGR1602 | 560x135x185mm | 8.0kg | 0.46kg/hr | 5400kcal/hr | powder coating or food drying ect |
| K850 | 760x148x180mm | 3.4kg | 0.5-0.9kg/hr | 6.6-12.8kw/hr | Industrial heating |
| P400 | 410x100x70mm | 3.9kg | 0.3kg/hr | 3.0-3.5kw/hr | Modularization,Large area heating |
| V200 | 210x 160 x 60mm | 1.4kg | 0.25kg/hr | 4.5-4.8kw/hr | BBQ |
| E30 | 456x 173x260mm | 14.5kg | Customized | Customized | Hot air treatment |
| TC200 | 270 x 170 x 55mm | 1.3kg | 0.25kg/hr | 3.2kw/hr | Coffee baking machine or Food baking etc. |
Company informat:
Sunsrays heating science and technology company is a professional provider of industrial i.R.Heating solutions.Our products and systems are mainly used in the process heating fields such as coating industry, food industry, etc.
Sunsrays heating ltd.Has lots of patents.We have also built the cooperative relationship with some universities and research instituts.
We believe that by our unremittingly innovation, outstanding products quality, and thoughtful customer service, sunsrays will by all means be the best choice of industrial i.R.Heating systems for customers though out the world.
