| Prod Model: |
UNZJ-A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Due to Order |
| Flexibility: |
Portable, Movable Type |
| Color: |
Due to Order |
| Company Type: |
Manufacturer |
| Blade Material: |
Plastic |
| Electric Current Type: |
AC |
| Mounting: |
Duct Fan |
| Certification: |
CCC |
Product Description
Best quality wiht lowest price are provided for your company.
Note: Special voltage frequency can be customized.
The Fan can also be used for Electric Motor of our company.

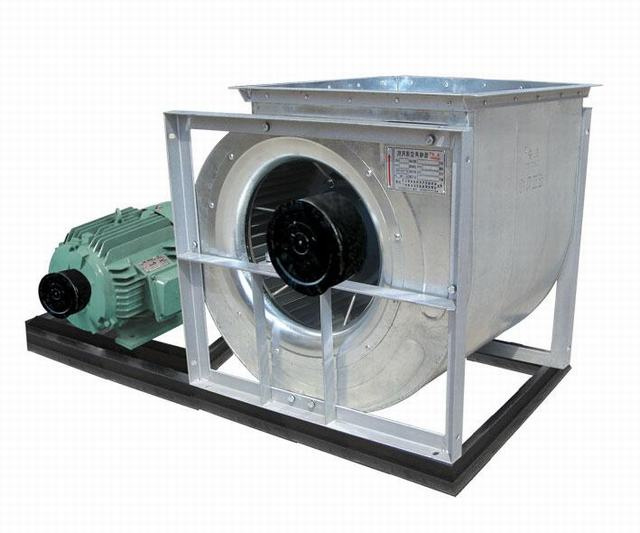

DF series centrifugal fan features in rich wind, high pressure and low noise whose impellers are multiple, forward and narrow. It is widely used in printing industry, packaging industry, plastic industry, paper industry, glass fiber industry, pharmaceutical industry and shoemaking industry. In addition, it can be used in the temperature control, dust discharge, cooling system, air supplement and ventilating
Centrifugal fan consists of impeller, air inlet and spiral case. When impellers is rotating, air in the blade channel will move outward under the effect of centrifugal force, then vacuum degree will be the formed in the middle of impeller, the air is inhaled from air inlet shaft. The air turn 90° At the entrance of impeller, then flow into blade channel. Under the effect of blades, the fan gets kinetic energy and pressure energy. Air flow from blade channel flows into spiral case, after concentration and diversion, then exhausts from air outlet. Centrifugal fan increases the air pressure through the input mechanical energy, and exhausts air. It is impulse fluid machine.
The motor of this fan has passed the national mandatory product certification (hereinafter referred to as CCC), and we own Chinese Country Compulsory Product Authentication Certificate, which is issued by China Quality Certification Center.
Fan frame: it is formed in one step due to the use of advanced automatic processing technique, the thick zinc coating (150g/m2) ensures great corrosion resistance, the bottom outlet design makes fan structure more reasonable.
Belt pulley: The V-shaped hub made of aviation aluminum alloy is light, tensile, high-strength, and unlikely to break.
Fan blade: six stainless steel blades which are formed in one step are aesthetic, durable and resistant to deformation, the blade passed the dynamic balance test and its reasonable angle ensures maximum air flow and minimum noise.
Shutter: High strength hot galvanised plate, the automatic opening-closing device makes it possible to open and close louvers completely, maintain a 90-degree opening angle to ensure louvers are windproof, rainproof and dustproof.
Shutter opening-closing device: Made using tensile industrial nylon and injection molding technique, the device features high strength and long life. As the guide bar is inlaid with metal sheet, its strength is greatly increased, contributing to the reliability of the opening-closing device.
Motor: energy efficient, 3C approved, IP54, class F insulation.
Fan frame: it is formed in one step due to the use of advanced automatic processing technique, the thick zinc coating (150g/m2) ensures great corrosion resistance, the bottom outlet design makes fan structure more reasonable.
Belt pulley: The V-shaped hub made of aviation aluminum alloy is light, tensile, high-strength, and unlikely to break.
Fan blade: six stainless steel blades which are formed in one step are aesthetic, durable and resistant to deformation, the blade passed the dynamic balance test and its reasonable angle ensures maximum air flow and minimum noise.
Shutter: High strength hot galvanised plate, the automatic opening-closing device makes it possible to open and close louvers completely, maintain a 90-degree opening angle to ensure louvers are windproof, rainproof and dustproof.
Shutter opening-closing device: Made using tensile industrial nylon and injection molding technique, the device features high strength and long life. As the guide bar is inlaid with metal sheet, its strength is greatly increased, contributing to the reliability of the opening-closing device.
Motor: energy efficient, 3C approved, IP54, class F insulation.
Belt: Imported B type belt is long lasting, deformation free, and requires no maintenance.
We can customize according to your specific request .
| Spec. | The dia. Of blade
mm | The Speed of blade
r/min | Power
kw | Voltage
V | Noise
Volume
db | The capacity of wind
m 3 /h | Figure
mm | Weight
kg |
| UNZJ-C1 | 1250 | 438 | 1.5 | 380 | ≤64 | 46800 | 1380*1380*450 | 83 |
| UNZJ-C2 | 1250 | 438 | 1.1 | 380 | ≤64 | 43800 | 1380*1380*400 | 80 |
| UNZJ-C3 | 1000 | 560 | 0.75 | 380 | ≤64 | 35000 | 1100*1100*450 | 74 |
| UNZJ-C4 | 1000 | 560 | 0.75 | 380 | ≤64 | 35000 | 1100*1100*400 | 65
|
