| Prod Model: |
DJF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Open System: |
Centrifugal System |
| Frame Material: |
Galvanized Sheet(or Stainless Steel as Ur Request) |
| Balde Material: |
Stainless Steel |
| Blade Number: |
6 |
| Motor: |
Chinese Motor, Siemens Motor |
| Belt: |
Japanese Mitsubishi B Type |
| Bearing: |
Imported Cnt Bearing |
| Shape: |
Box Fan |
| Mounted: |
Wall Mounted |
| Common Size: |
1380*1380*450mm |
| Power Supply: |
Electric |
| Timer: |
With Timer |
| Speed: |
1 Speed |
| Power: |
>300W |
| Type: |
Ventilation Fan |
Product Description
We are the professional producer of exhaust fan.

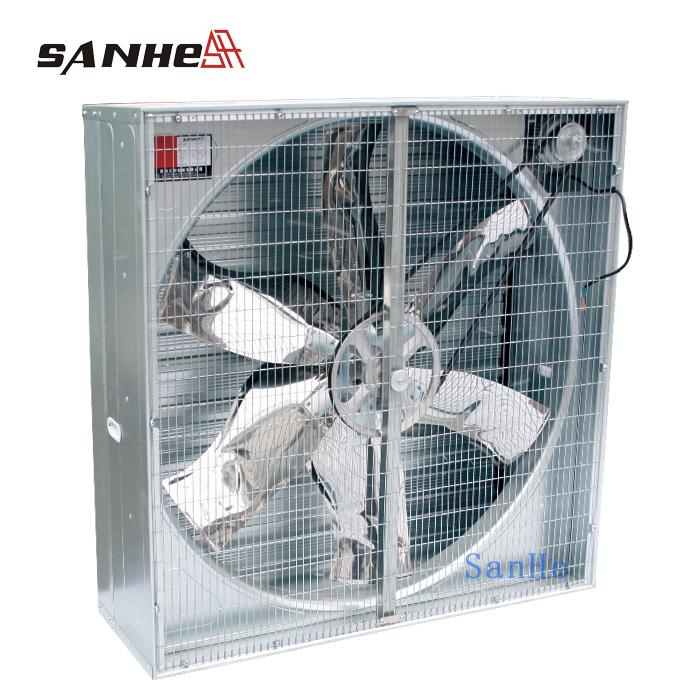

SANHE Details of Centrifugal Exhaust Fan
1. SANHE blade is special designed for top grade efficiency which made of Krupp stainless steel by punch forming. Large air volume, no deformation, no broken, no dust, attractive and durable. Thickness 1.2mm, surface finish BA grade.
2. Centrifugal system open the shutters at complete 90 degree, ensure the lowest air resistance and biggest air volume. When closed, the sealing can efficiently block light and wind into the poultry farm house. As the first one adopt high quality nylon PA66 to ensure the long service life. The fasteners of centrifugal system are copper rivets, wear-resisting and no rust, flexible. Guide rod is made of 304 stainless steel, high strength, no rust, low frication.
3. Belts are Japanese Mitsubishi brand, long service life, maintenance free. From 2010 first adopt Type B belt which is 3times longer service life than type A.
4. Both Chinese famous motor are available. Motor voltage and frequency can be customized. Chinese famous motor OEM by special design for fan, the first one an home put in the phase lack protection device which would power off when short of electricity. Motor protection grade: IP55, insulation class: F grade.
5. Belt pulley and flange are made of high strength aluminum-magnesium alloy by die-casting. Light weight, low vibration. Blast-sanding treatment promise attractive appearance, eliminate internal stress, and improve its own rigidity and stability.
6. Linking parts are made of aluminum alloy, light weight, not deformation, and with wear-resistant shaft sleeve, reduce the clearance, then reduce frication, ensure the shutters open flexibly. The spring is made of 304 stainless steel, long work time, no deformation, no rust.
7. Fan bearing adopts France imported double-row bearing with special waterproof design, water can't enter. High strength, low noise, maintenance free and long service life.
8. Motor plate has multiple functions with the use of a unique design. Both 1HP and 1.5HP motor are available. The motor pulley and belt pulley are in the same line, reduce the belt wearing and increase belt service life.
Qingzhou Sanhe Machinery Co., Ltd is the professional manufacturer of ventilation, cooling equipment, humidification and heating equipments. It is a high-tech enterprise which has a completed set of specialized designing, manufacturing, installation, sales and after-sale services. We have gotten many titles such as "China Ten Top Brands Fan"" AAA Levels of National Quality Company"" Honesty and Qualitative Enterprise". The company strictly executes quality standard, and has passed ISO9001: 2008 international quality system certificaiton, and all procedures are under strict standars or according to the customers to produce and test.
Our company is located in Qingzhou, Shandong Province., a developing city with long history.
The factory occupied 30, 000 m2 and the workshop area is 15, 000 m2. We have an efficient team containing more than 300 workers. There are 60 engineers and six advanced engineers.
Company has strong technology strength, and hasestablishedlong-term close cooperation with Nanjing University, Xi'an Jiaotong University, Shanghai University of Technology, Huazhong University of Science and Technology and some other domestic institutions which have created good platform for the company's technological innovation, product research and development. In present, company has the products of poultry fan, negative pressure fan, exhaust fan, green house fan, circulation fan, cooling pad, automatic fuel, coal, gas, electric heater, dryer which contains 60 series over 200 varieties of specifications. The company has been a scientific-management, well-operating cooperation in the industry
Our products are widely used in agriculture and industrys ventilationcooling system and heating system.
Application for: Animal husbandry, poultry house, livestock breeding, flowers and plants, greenhouse, factory workshop, textile, chemical, medicine, tea, vegetable storage, and supermarket.
Nowadays, Our products have passed national CCC certification, and DJF series exhaust fan had got approved CE certificates of LVD and EMC Compliance. As the leader in this field, we are the first manufacturing company which passed the CE certification in China.
The company has set up more than 200 sales branches in more than 20 provinces of the country, and the products have been exported to tens of countries and regions such as Asia, Europe, America, Australia and so on.
The company sticks to the managing theory ofTake care of the customers, People oriented, Devoted and professional, Honest and keep promises, and takeBeing the biggest in the country to the biggest in the globe fields, from common to excellence as the striving goal. And work hard to become the first class international enterprise and the top brand.
