| Prod Model: |
UNZJ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Due to Order |
| Flexibility: |
Portable, Movable Type |
| Color: |
Due to Order |
| Company Type: |
Manufacturer |
| Blade Material: |
Plastic |
| Electric Current Type: |
AC |
| Mounting: |
Duct Fan |
| Certification: |
CCC |
Product Description
Best quality wiht lowest price are provided for your company.
| Spec. | The dia. Of blade
mm | The Speed of blade
r/min | Power
kw | Voltage
V | Noise
Volume
db | The capacity of wind
m 3 /h | Figure
mm | Weight
kg |
| UNZJ-C1 | 1250 | 438 | 1.5 | 380 | ≤64 | 46800 | 1380*1380*450 | 83 |
| UNZJ-C2 | 1250 | 438 | 1.1 | 380 | ≤64 | 43800 | 1380*1380*400 | 80 |
| UNZJ-C3 | 1000 | 560 | 0.75 | 380 | ≤64 | 35000 | 1100*1100*450 | 74 |
| UNZJ-C4 | 1000 | 560 | 0.75 | 380 | ≤64 | 35000 | 1100*1100*400 | 65
|
Note: Special voltage frequency can be customized.
The Fan can also be used for Electric Motor of our company.

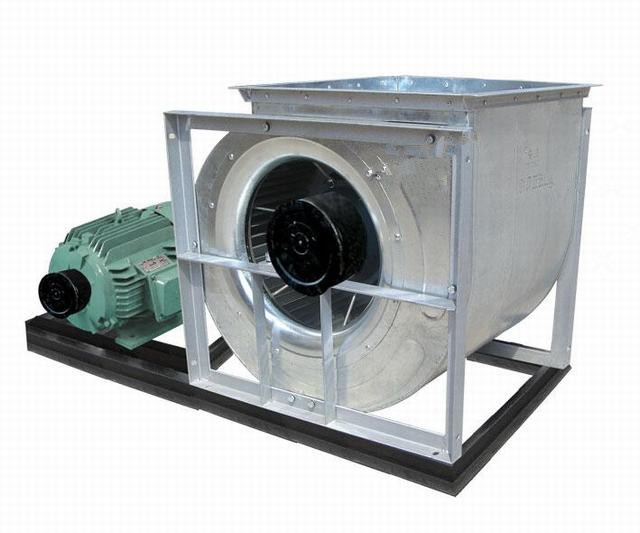

DF series centrifugal fan features in rich wind, high pressure and low noise whose impellers are multiple, forward and narrow. It is widely used in printing industry, packaging industry, plastic industry, paper industry, glass fiber industry, pharmaceutical industry and shoemaking industry. In addition, it can be used in the temperature control, dust discharge, cooling system, air supplement and ventilating
Centrifugal fan consists of impeller, air inlet and spiral case. When impellers is rotating, air in the blade channel will move outward under the effect of centrifugal force, then vacuum degree will be the formed in the middle of impeller, the air is inhaled from air inlet shaft. The air turn 90° At the entrance of impeller, then flow into blade channel. Under the effect of blades, the fan gets kinetic energy and pressure energy. Air flow from blade channel flows into spiral case, after concentration and diversion, then exhausts from air outlet. Centrifugal fan increases the air pressure through the input mechanical energy, and exhausts air. It is impulse fluid machine.
The motor of this fan has passed the national mandatory product certification (hereinafter referred to as CCC), and we own Chinese Country Compulsory Product Authentication Certificate, which is issued by China Quality Certification Center.
We can customize according to your specific request .
