| Prod Model: |
CPJ3060 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
370 X 140 X 51mm |
| Weight: |
3.5kg |
| Items: |
VHF/UHF Radio Blocker /Jammer |
| Name: |
Cell Phone Signal Jammer/Isolator/Breaker |
| Model: |
Long Range Mobile Phone Signal Jammer |
| Type: |
Military Technical Equipment |
| Material: |
Aluminum/Alloy |
Product Description

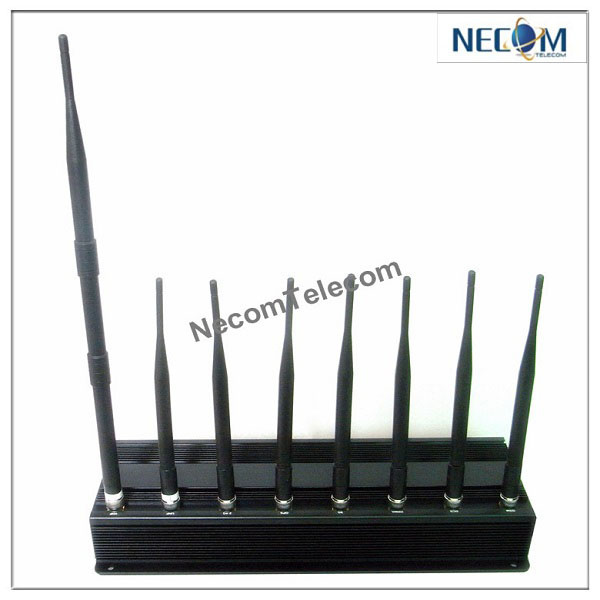

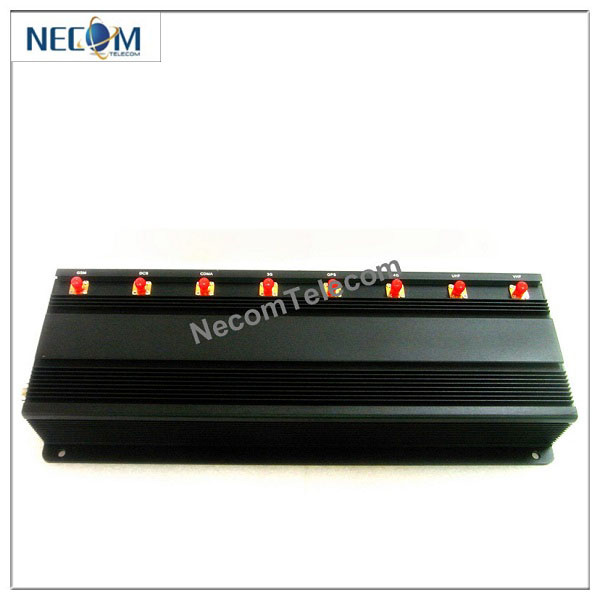

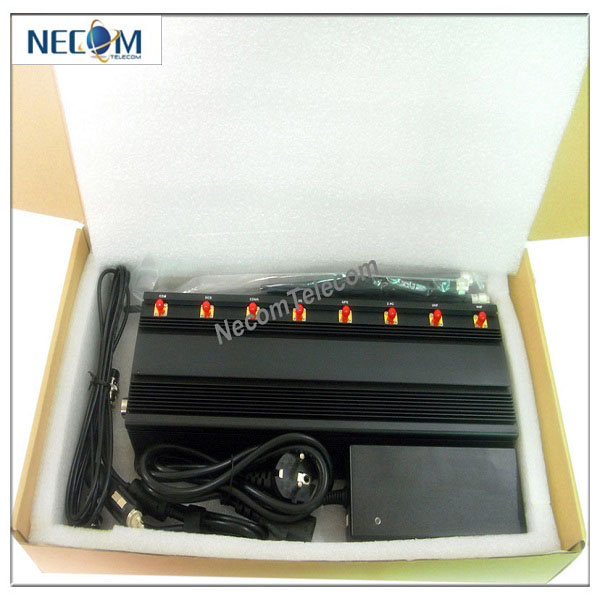

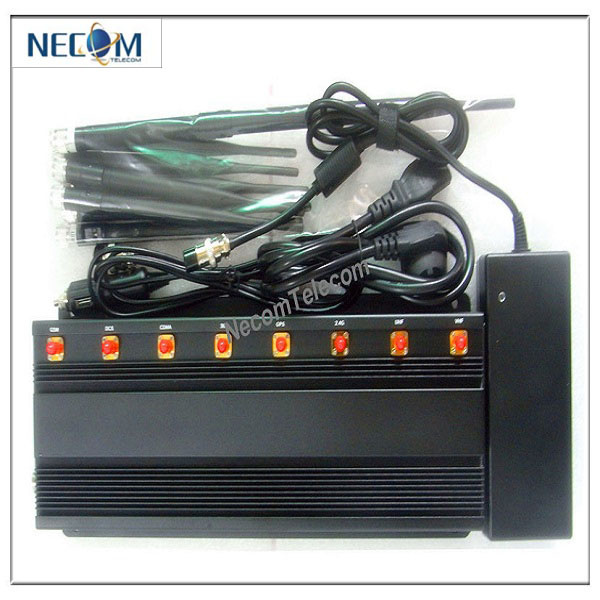

Cell Phone Signal Jammer/Isolator/Breaker,Long Range Mobile Phone Signal Jammer
Stationary 8Bands Cellphone,Wi-Fi,vhf/uhf radio Jammer/Blocker:CPJ-3060S
Basic features
*Ease of use and maintenance
*VSWR Protect high effiency power amplifiers
* Good cooling system with cooling fan inside
* Working non-stopped
*Stable capability
*Could be used in Vehicle directly, With car charger
Technical Specifications
| Model No | Output Port | Frequency Range | Output power | Remarks |
CPJ-3060
| GSM850 | 850-894Mhz | 35dBm |
Used in the United States, Canada, Mexico ,S. America. Europe, Asia, Australia, Middle East, Africa. |
| GSM900 | 925-960Mhz | 35dBm |
| GSM1800 | 1805-1880Mhz | 33dBm |
| GSM1900 | 1920-1990Mhz | 33dBm |
| 3G2100 | 2110-2170Mhz | 33dBm |
| 4GLte700Mhz | 690-806 MHz | 33dBm |
| 4Glte2300 | 2345-2400Mhz | 30dBm |
| Wi-Fi Bluetooth | 2400-2483Mhz | 30dBm |
| 4G Lte2600 | 2600Mhz | 30dBm |
| Lojack | 173.03Mhz | 30dBm |
| GPSL1 | 1575.42 | 30dBm |
Optional Frequency | CDMA450 | 430-450/460-470Mhz | We can Configured in accordance with customer requirements |
| GPS/GLONASS | L2: 1227.60Mhz |
| Wireless Camera | 1.2G ,2.4G |
| Car remote control | 433Mhz,315Mhz |
| Walkie-Talkie | VHF,UHF |
RF Power Output:18Watt
Protection Radius: Typical 2-50m@according the signal density mobile network
Jammer type: Sweep Jamming
Application Type: meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus , hospitals, gas stations
Antenna Type:Omini-Directional
Power Source : AC adapter (50 to 60Hz/100 to 240V AC -DC12V) and 12V car charger Plug
Electric Filed (SAR):Compatible with ICNIRP Standards(Human safe)
Operating Temp:-20 to +50ºC
Storage Temp:-40 to +60ºC
Dimension(LXWXH): 370 x 140 x 51mm
weight: 3.5kg
