| Prod Model: |
daqin screen cutting -DQ 006 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Automation: |
Automatic |
| Type For Cutting Machine: |
Laser Cutting Machine |
| Type For Fold-bending Machine: |
Manual Fold-bend Machine |
| Application: |
Mobile Screen Protector |
| Item: |
Cell Phone Screen Protector Machine |
| Parcel: |
Software+Laser Cutting Machine+Materials |
| Total Weight: |
45kg |
| Power: |
200W |
| Max Cutting Area: |
210mm*297mm |
| Inventory: |
in Stock |
Product Description

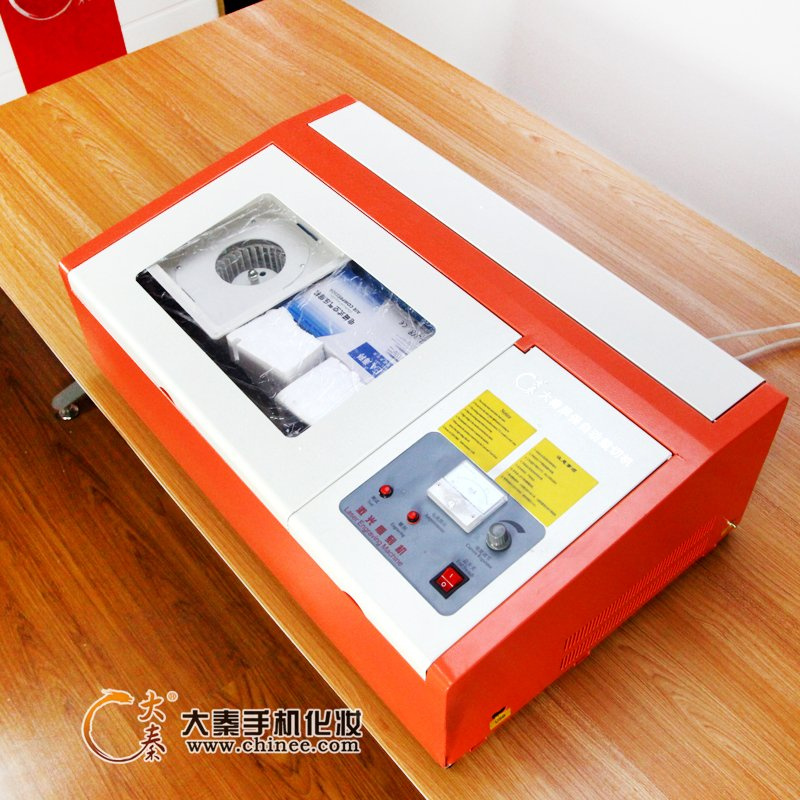

Cell phone screen protector machine to making mobile protector
Features:
1. Precise Cutting.
2. Fine and smooth edge, no rough selvedge.
3. High-compatibility of materials.
4. On-production production, no swelling inventories.
5. Easy to use.
The entire system is made up of the Daqin mobile screen protector design software and the cutting machine.
Application range: Cutting various model of mobile phone screen protection film worldwide(Brand of newly published mobile phone protection film will be updated in time ), personalized screen protection film of the camera, MP3, MP4, tablet, PC etc.
The Daqin software runs on the computer. Various dimension data of the screen protection film are stored in the Daqin software. Run the software and choose the corresponding data of the screen protection film according to the model and brand, then the chosen data will be output to the Daqin screen protector cutting machine. After that, it will cut out the corresponding shape of the screen protection film with the material of PET, PVC etc. Also, the user can add data of new model of mobile phone screen film.
Special announcement: Daqin automatic screen protector cutting system won TWO national patents, with proprietary intellectual property rights.
Patent number:
201210280019.7
201220389999. X
|
Name |
cell phone screen protector machine to making mobile protector |
|
Model |
Daqin screen cutting - DQ- A188 |
|
Cutting way |
Controled by professional software |
|
Cutting Type |
Laser Cutting |
|
Beam type |
CO2(Carbon dioxide beam) |
|
Beam power |
40 W |
|
Cooling system |
Circulating water cooling system |
|
Exhausting fume method |
Back exhaust |
|
Maximum cutting area |
297mm*210mm |
|
Cutting precision |
±0.01mm |
|
Cutting speed |
<50cm/s |
|
Drive type |
0.9°Stepper motor |
|
Communication interface |
USB Print line |
|
Operating temperature |
5-45 C |
|
Machine size |
83 CM * 50 CM * 25 CM |
|
Weight |
32 KG |
|
Total Power |
200 W |
|
Packing size |
92 CM * 62 CM * 38CM |
|
Weight after packing |
45 KG |
|
Package |
Three layers |
|
Shipping way |
DHL ,Fedex ,TNT ,UPS ,EMS and so on |
|
Advantage |
No rough edge and Accurate |
DAQIN, Global Leader of mobile phone sticker machine, sell well in 73 countries since 2002. Daqin establish the first global mobile phone sticker business institute. Mission: Raise the value of mobile sticker industry, help 10 million merchants succeed!
As another wonder of China, in the 12 years process, DAQIN made the best mobile phone sticker machine and DIY product, fulfilled dreams of millions of entrepreneurs in the mobile phone sticker machine field. 4 of DAQIN's products have a 70% market share in the global market. For the mobile phone sticker machine, DAQIN is your first choice!
DAQIN has almost 20 kinds of national registered trademarks and product patents. Successfully attained the SGS certification and the ISO9001: 2008 certification.
Main Products and Serivce
Custom Mobile Sticker Machine
Mobile phone sticker design Master
Custom mobile phone case printer
Mobile phone screen protector film cutting machine
