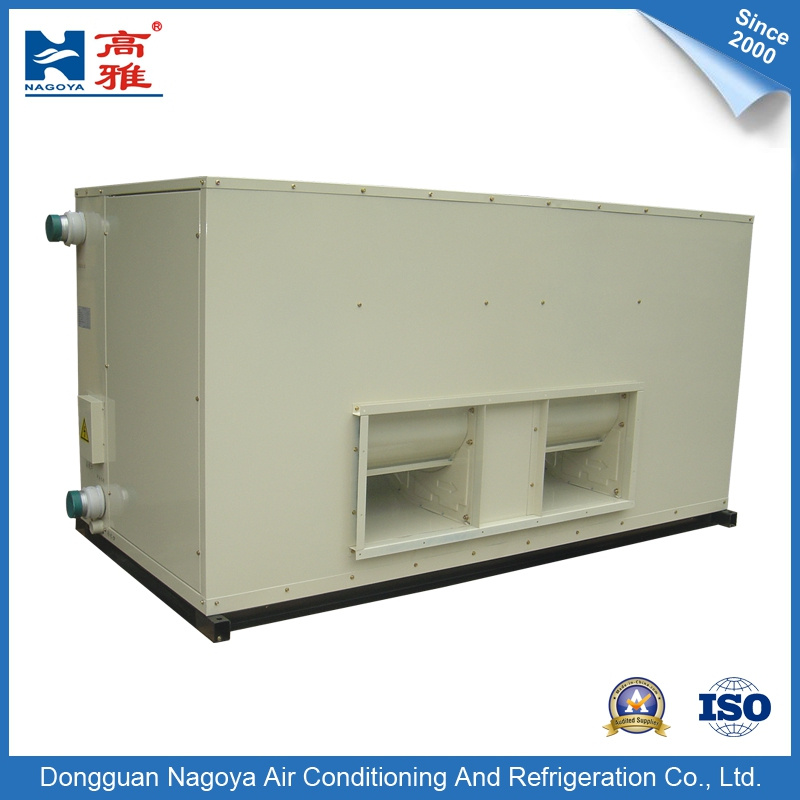

Ceiling Cold Water Air Handling Unit Cabinet Air Conditioner (KC-125)
Price: |
US $ 1465/Set |
Trade Terms: |
FOB |
Min Order: |
1/Set |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Prod Model: |
KC-125 |
Color: |
White |
Type: |
Air Handling Unit |
Operating Voltage: |
380/400 VAC |
Mounting: |
Ceiling Mount |
Certification: |
CCC |
Condition: |
New |
Product Description
Ceiling Cold Water Air Handling Unit Cabinet Air Conditioner (KC-125)
Ceiling/Floor Cold Water Air Cabinet |
model | K(X)C-25 | K(X)C-40 | K(X)C-50 | K(X)C-75 | K(X)C-100 | K(X)C-125 | K(X)C-160 | K(X)C-180 | K(X)C-200 |
performance | K(X)F-25 | K(X)F-40 | K(X)F-50 | K(X)F-75 | K(X)F-100 | K(X)F-125 | K(X)F-160 | K(X)F-180 | K(X)F-200 |
nominal air flow | CMH | 2500 | 4000 | 5000 | 7500 | 10000 | 12500 | 16000 | 18000 | 20000 |
cooling capacity (return air) | 4R | kW | 15.6 | 24.8 | 30.3 | 44.4 | 61.1 | 74.4 | 96.8 | 107.8 | 118.4 |
6R | kW | 20.5 | 31.2 | 39.5 | 57.3 | 79.7 | 96.2 | 124 | 139.5 | 152.7 |
cooling capacity (fresh air X) | 4R | kW | 29.4 | 44.5 | 57 | 83.2 | 115 | 139.7 | 179.8 | 202.3 | 222 |
6R | kW | 39.5 | 59.6 | 76.5 | 111.5 | 154.2 | 187.2 | 241 | 271.1 | 297.4 |
heating capacity (return air) | 4R | kW | 23.4 | 37.2 | 45.5 | 66.6 | 91.7 | 111.6 | 145.2 | 161.7 | 177.6 |
6R | kW | 30.8 | 46.8 | 59.3 | 86.0 | 119.6 | 144.3 | 186.0 | 209.3 | 229.1 |
heating capacity (fresh air X) | 4R | kW | 44.1 | 66.8 | 85.5 | 124.8 | 172.5 | 209.6 | 269.7 | 303.5 | 333.0 |
6R | kW | 59.3 | 89.4 | 114.8 | 167.3 | 231.3 | 280.8 | 361.5 | 406.7 | 446.1 |
external static pressure | 4R | Pa | 130 | 130 | 160 | 250 | 280 | 350 | 400 | 430 | 450 |
6R | Pa | 100 | 100 | 130 | 220 | 250 | 320 | 370 | 400 | 420 |
motor power | kW | 0.45 | 0.75 | 1.1 | 1.5 | 2.2 | 3.0 | 4.0 | 5.5 | 5.5 |
power supply | 3PH 380V 50Hz |
noise | dB(A) | ≤56 | ≤62 | ≤64 | ≤68 | ≤70 | ≤72 | ≤73 | ≤73 | ≤73 |
chilled water flow(return air) | 4R | CMH | 2.7 | 4.3 | 5.2 | 7.6 | 10.5 | 12.8 | 16.6 | 18.5 | 20.4 |
6R | CMH | 3.5 | 5.4 | 6.8 | 9.9 | 13.7 | 16.5 | 21.3 | 24.0 | 26.3 |
chilled water flow(fresh air X) | 4R | CMH | 5.1 | 7.7 | 9.8 | 14.3 | 19.8 | 24.0 | 30.9 | 34.8 | 38.2 |
6R | CMH | 6.8 | 10.2 | 13.2 | 19.2 | 26.5 | 32.2 | 41.4 | 46.6 | 51.1 |
water pressure drop.(return air) | 4R | kpa | 16.6 | 11.0 | 10.8 | 15.4 | 18.0 | 17.9 | 9.0 | 9.1 | 9.8 |
6R | kpa | 10.6 | 20.0 | 18.7 | 28.3 | 18.2 | 18.5 | 15.6 | 15.8 | 17.7 |
water pressure drop.(fresh air X) | 4R | kpa | 18.2 | 24.9 | 29.8 | 16.9 | 19.8 | 19.8 | 26.3 | 24.7 | 26.1 |
6R | kpa | 17.5 | 25.1 | 30.6 | 29.1 | 19.5 | 19.1 | 25.8 | 25.3 | 26.7 |
Dia. Of pipe (return air) | 4R | in | 1-1/4 | 1-1/2 | 1-1/2 | 2 | 2 | 2-1/2 | 2-1/2 | 2-1/2 | 3 |
6R | in | 1-1/4 | 1-1/2 | 1-1/2 | 2 | 2-1/2 | 2-1/2 | 3 | 3 | 3 |
Dia. Of pipe (fresh air X) | 4R | in | 1-1/2 | 2 | 2 | 2-1/2 | 2-1/2 | 3 | 3 | 3 | 4 |
6R | in | 1-1/2 | 2 | 2-1/2 | 2-1/2 | 3 | 3 | 4 | 4 | 4 |
K(X)C dimension | width | mm | 1000 | 1200 | 1200 | 1700 | 1840 | 1840 | 2150 | 2150 | 2150 |
depth | mm | 1000 | 1150 | 1150 | 1150 | 1150 | 1150 | 1250 | 1250 | 1250 |
height | mm | 560 | 740 | 740 | 740 | 920 | 1063 | 1160 | 1280 | 1320 |
K(X)F dimension | width | mm | 1000 | 1200 | 1200 | 1700 | 1840 | 1840 | 2150 | 2150 | 2150 |
depth | mm | 600 | 600 | 600 | 600 | 820 | 820 | 1050 | 1050 | 1050 |
height | mm | 1350 | 1450 | 1450 | 1450 | 1680 | 1800 | 2000 | 2100 | 2200 |
K(X)C net weight (about) | 4R | kg | 100 | 120 | 150 | 210 | 240 | 270 | 360 | 380 | 400 |
6R | kg | 110 | 130 | 180 | 230 | 270 | 310 | 400 | 420 | 450 |
K(X)F net weight (about) | 4R | kg | 110 | 140 | 160 | 280 | 300 | 380 | 430 | 460 | 490 |
6R | kg | 120 | 150 | 190 | 300 | 350 | 430 | 480 | 520 | 540 |
Note: The data is measured in the next standard condition: |
1. cool: return air: 27ºC/19.5ºC, fresh air: 34ºC/28ºC, inlet/outlet water temperature: 7ºC/12ºC. |
2. warm: return air: inlet air 7ºC, fresh air: inlet air 21ºC, inlet/outlet water temperature: 60ºC/50ºC. |
In 1977, NAGOYA AIR CONDITIONG AND REFRIGERATION Co., Ltd. Was founded in Hong Kong, and in 1991, it set up a plant in Dongguan, Guangdong. The Company has developed into a professional and modern manufacturer of central air-conditioning and supporting equipments, with an annual capacity of more than 8000 units, and the products are well sold in China and also exported to oversea market.
NAGOYA is a joint venture incorporated by shareholders from Canada, Hong Kong and Taiwan, the Company has been certified to ISO9001 international quality certification. Basing on ISO9001 quality assurance system, NAGOYA has established a full set of management system to ensure product quality and service quality, where each department coordinates each other under clearer division of labor and makes joint efforts to respond the needs of customers more timely, and provides more effective service, thus improving its competiveness continuously. From view of NAGOYA, current market competition depends on talent competition, and the Company implements talent strategy of "people-oriented, merit-based" and pays more attentions to strength, rather than only academic background. Under people-oriented corporate culture, NAGOYA has created a vibrant, united, progressive, challenging and innovative team, and ensures its products are characterized by stable performance, excellent quality, and first-class after-sales service. Therefore, "NAGOYA" products have been rapidly acceptable and highly praised by all sectors, as the preferred brand by many Chinese and foreign enterprises.
Do business in a thoroughgoing manner; Utilize resource from the society, and then contribute to the society, thus to develop and grow up in a sound and responsible manner. NAGOYA is involved in innovation and development of new products to meet the needs of the society, and this is the development history of the Company over decades of years.
The Company has always adhered to the spirit of "quality-first, customer-centered", conducted business in good faith, and made every effort to provide high quality products as well as perfect pre-sale in-sale and after-sales service, thus only reaching the acme of perfection and repaying customers' support.
