| Prod Model: |
JXIP-serial |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Collector Components: |
Glass Vacuum Tube |
| Pressure: |
Pressurized |
| Structure: |
Compact Type |
| Interior Material: |
Stainless Steel |
| Certification: |
SGS |

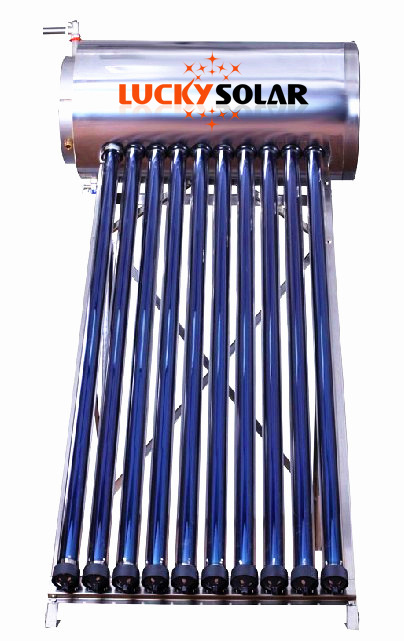

Product Description
FEATURE:
1. Special high quality Insulated material to reduce the heat loss
2. Excellent workmanship to guarantee the decent appearance, change for your request
3. Long life span and easy operation
4. This type of solar water heater can work in high pressure
5. It uses the heat pipe which can deliver the heat rapidly
6. The vacuum tube will not break in the winter for there is no water in it, even in the coldest area
7. Each vacuum tube works individually, so the machine will still at work in the event of occational vacuum tube breakag
8. Hot water with pressure make you bathe more comfortable
ADVANTAGES:
1. This type of solar water heater can work in high pressure
2. It uses the heat pipe which can deliver the heat rapidly
3. The vacuum tube will not break in the winter for there is no water in it, even in the coldest area
4. Each vacuum tube works individually, so the machine will still at work in the event of occational vacuum tube breakage
5. Hot water with pressure make you bathe more comfortable
|
WATER STORAGE TANK SPECIFICATION |
|
Material of out tank |
High quality stainless steel. |
|
Material of inner tank |
Food grade SUS304-2B Stainless Steel – 1.2mm thickness. |
|
Tank insulating layer |
Imported polyurethane, 57.5mm thickness can conserve the heat for maximum 72 hours |
|
Tank diameter |
475mm |
|
Welding |
Argon arc welding |
|
Water tank preformed hole |
Magnesium bar, T/P valve, sensor hole, water inlet & outlet hole, drainage. |
|
EVACUATED VACUUM TUBES SPECIFICATION |
|
Tube structure |
All-glass double-tube co-axial structure |
|
Glass material |
High borosilicate 3.3 glass |
|
Tube dimension |
58*1800mm |
|
Outer tube diameter and glass thickness |
Ø 58± 0.7mm; Glass thickness 1.6± 0.15mm |
|
Inner tube diameter and glass thickness |
Ø 47± 0.7mm; Glass thickness 1.6± 0.15mm |
|
Absorptive coating property |
Structure |
Cu/SS-ALN(H)/SS-ALN(L)/ALN |
|
Sediment method |
Three targets magnetron sputtering plating |
|
Specific absorption |
0.93-0.96(AM1.5) |
|
Emission ratio |
0.04-0.06(800deg± 50deg) |
|
Solar irradiation for obtaining a preset water temperature |
Φ =58 H≤ 4.7MJ/m² |
H=3.7-4.2MJ/m² |
|
Vacuum tightness |
5.0× 10¯ ³ Pa |
|
Idle sunning property parameters |
260-300 m² . C/KW |
|
Average heat loss coefficient |
ULT=0.4~0.6W/(M 2.0 deg) |
|
HEAT PIPES SPECIFICATION |
|
Heat pipe material |
TU1 copper |
|
Heat pipe condenser size |
Top: Ø 14mm*70mm, Body: Ø 8mm |
|
Heat-transfer-fins |
Complete (SINGLE) al-alloy fins, 1.63meters. (the best) |
|
Max. working temp |
-30 ~250C |
|
Δ T |
35C(Radiation> =800w/m2. day) |
|
Start-up Temperature of heat pipe |
< =30deg |
|
Resistant Hail |
≤ 25mm |
|
Useful life |
15 years |
|
BRACKET SPECIFICATION |
|
Bracket |
Stainless steel 201 or 2.0mm aluminum alloy (optional) |
|
Bracket angle |
We have 0 25, 38, 45 structure for selection, sloping roof bracket cheaper a little bit |
|
Fastening pieces |
Made of zinc-coated stainless steel. |
Haining Jixiang Solar Energy Co., Ltd. is a new high-tech company specializing in the utilization of solar energy. Located in Haining Yuanhuan industrial zone in Zhejiang province, the company has high-quality technique staff. With strong integration capability and global resources, Jixiang Solar Energy Co., Ltd is moving forward to establish an international brand.
The Lucky Series water heater, Lucky Sanbao, Lucky Ruyi, Lucky Fuyun, Lucky Hexie, and Lucky Haoyun, are conducted with serious quality control measures and have earned us ISO 9001: 2000 certificate for its management & products, CCC certificate for "Qualified Products" and CE certificate. The brand of "Window of Lucky" is listed as "Recommended Brand" of CCTV. Besides, the series have also been regarded as quality safe products. Due to Lucky's good image and high quality, our products are popular in Spain, Italy and many other European countries.
Jixiang focuses on solar energy exploration and attaches great importance to leading-edge research and innovation to make itself a step forward in future market. Been a globalized enterprise that has globalized staff, Lucky firmly believes that the constant rule of market is constant change, challenge is the drive of innovation, thus Lucky never says "NO" to market. With the manufacturing excellence, Lucky Solar Energy Co., Ltd is fully integrated with Lucky's global manufacturing system. With world-class facility, Lucky offers substantial and timely service not only to the domestic market but also to the rest of the world. "The utmost success of the company is customers' satisfaction" is Lucky's tenet.
Guided by business philosophy, Lucky has experienced success in the three historic periods, noted as brand building, diversification and globalization. It has long attached significance to innovation in satisfying the demands of worldwide consumers and realizing win-win performance between Lucky and clients. Facing fierce global market competition, Lucky has launched the global brand building strategy and updated the spirit, "The relentless pursuit of perfection", with an aim to gain global recognition and sustainable development.
