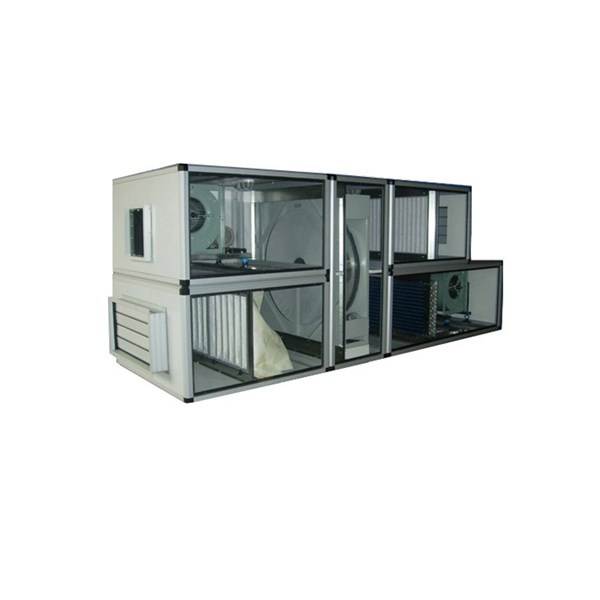

CE Approved Air Cooled Air Conditioner

Prod Model:	GT-WKR-50
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Use:	Central Air Conditioners
Power:	Electrical
Packing Type:	Standard Export Package
Refrigerant:	R410A, R407c, R22
Fan:	Centrifugal Fan
Coil:	Copper Tube Aluminum Fin
OEM&ODM:	Available
Original:	Shanghai, China
Voltage:	380V, 440V
Life Time:	10-15 Years
Type:	Central Air Conditioners
Capacity:	24000-27000 BTU
Usage:	Room
Indoor Machine Noise:	36-49dB
Certification:	UL
China Energy Efficiency Standard:	Level 4
Cooling/Heating:	Cooling/Heating
Power Source:	Electrical
Power Type:	AC
Condition:	New

Product Description

Advantage:

1.Applied to dry areas;

2.Compact structure, installed on the roof, convenient for installation, do not take up too much space ;

3.Sufficient external static pressure, suitable for connecting air duct system, reduce indoor noise greatly;

4.Cooling capacity:meet different requirements;

5.The framework of units is anti-cold bridge aluminum alloy, which eliminates cooling leakage and condensate water due to large temperature difference between inside and outside.

6.The main parts are imported quality products, with excellent performance;

7.The evaporator and condenser adopt the technology of enhancing heat transfer, which makes the exchanger of high efficiency and save energy.




GT-WKR Series-Roof Top AH Specifiaction 2
Model    GT-WKR-				40	50	60	70	90	110	120
Specification	Cooling capacity 1*		kW	42.0	52.8	61.2	70.2	87.5	105.1	122.5
	Heating capacity  2*		kW	44.1	55.4	62.5	73.8	92.8	112.0	130.0
	Supply air 3*		m3/h	7000	8600	10000	12000	14500	17000	20000
	Static pressure 3*		Pa	300	300	300	350	350	400	400
	Noise 4*		dB(A)	68	69	69	70	71	72	72
	Power			3N-380V-50Hz
	Total capacity			17.24	20.72	23.0	29.76	39.1	44.66	51.58
	Color			White
ooling system	Compressor	Type		Efficient scroll closed
		Quantity		2	2	2	2	2	4	4
	Supply air fan	Type		Low noise centrifugal type
		Capacity	kW	2.2	3	4	4	5.5	7.5	7.5
	Evaporator	Type		Inner grooved copper tube and aluminum fin
		Fin type 5*		Slotted fin hydrophilic aluminum fin
	Condenser	Type		Inner grooved copper tube and aluminum fin
		Fin type 5*		Rippled hydrophilic aluminum fin
	Condenser fan	Type		Low noise axial type
		Quantity		2	2	2	4	4	4	4
	Refrigerant	Refrigerant		R22/R407C
		Refrigerant control		External balance type thermal expansion valve
Air filter				Initially effect plate filter
Dimensions		L	mm	2200	2600	2600	3200	3200	6000	6000
		W	mm	1800	2200	2200	2200	2200	2300	2300
		H	mm	1520	1700	1700	1900	1900	2300	2300
Weight			kg	850	1100	1250	1400	1650	1850	2200

Features

1. Operating temperature range:-40~45°C.

2. G4 filters to provide engine room with clean air, clogged filtration cotton can automatically detect and automatically replace, which reduces labor costs and traffic costs.

3. Integration of indoor and outdoor unit designed to meet unmanned engine room equipment burglar requirements, no brass indoor and outdoor unit is connected, reducing the risks of refrigerant leakage.

4. When the outside temperature reaches fresh air ventilation working condition, compression refrigeration system is shut down, the introduction of natural cold air outside cool room environment. In fresh air mode, energy efficiency ratio can reach 18 to achieve the unit's energy-saving operation.

5. Large area of heat exchanger design, the choice of large airflow blower, so that air circulation inside the room can be one hour of dozens of times, then the room temperature is balanced to prevent local overheating, to achieve room environment precise control of temperature and humidity.

6. Design of high sensible heat ratio (sensible heat ratio of more than 90%), compare with ordinary air condition to save 20-30 % of energy consumption in the refrigeration mode, and thus avoid excessive dehumidification and supplying air with fog.

7. Sleep mode is designed to run: when the room temperature and humidity reaches the set value, not only to stop the operation of the compressor, but also the fan.
