| Prod Model: |
V1110 |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Screen Size: |
2.0-2.5" |
| Screen Material: |
TFT |
| Battery Capacity: |
800mAh-1000mAh |
| Data Interface: |
Mini USB |
| CPU Frequency: |
800MHz-1GHz |
| Technology: |
CDMA2000 |
| Rear Camera Pixel: |
1MP-2MP |
| Display Color: |
256 Color |
| Style: |
Qwerty |
| Operation System: |
Qsc1110 |

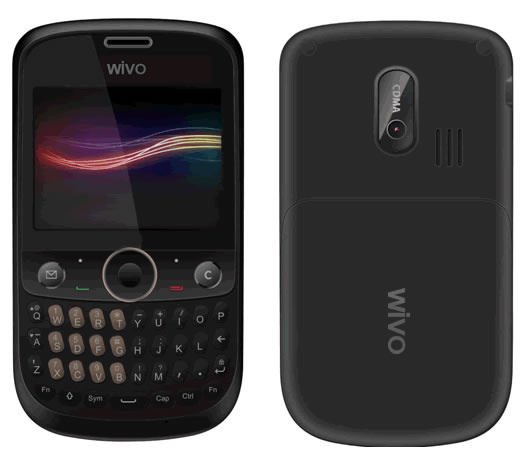

Product Description
CDMA 450 handset/ 450MHz phone/ 450MHz mobile phone/CDMA 450MHz
Monoblock with Full keypad
1.3M Camera, MP3/MP4/FM
Bluetooth 2.0
USB, Large phonebook 2000
CDMA 450 MHz Mobile Phone 800/1900MHz CDMA Mobile Phone / CDMA phone
Monoblock with Full keypad
2000 phonebook
Camera, MP3 MP4 FM
Bluetooth
Mini USB interface
CDMA mobile phone / CDMA phone/CDMA mobile
Hardware Specifications
Network
CDMA
Frequency Band
CDMA 450/800/1900MHz
Solution
Qualcomm QSC1110
Memory
256MB+128MB
PCB
6 Layers
T flash
At least 8GMicroSD
U disk support
YesMicroSD
LCD
Physical Dimension
2.4
Resolution
320W× 240H
Color Depth
260K65536 by software
Type
TFT
Backlight
LED
Touch Screen
No
Number of Keystroke
Keypad area
Top3+5+3
Left keyshort key for Main Menu when Idle
Right keyshort key for Phone Book when Idle
SMS
C
Send
Power
Navigation key
OK
Bottom37 nos
26 charactersSpaceFnShiftBackspaceEnterCommafull stopCtrlFncaps lockkey lock
Numbers overlap R-Y keys
Side keys
No
Keypad backlight
White LED
Speaker
Mono-Speaker
Core battery
No
Power off Alarm
Support(with battery)
Camera
Resolution
0.3M1.3M by software
Type
CMOS
Zoom
Digital
Flash
No
Sub-Camera
No
Blue Tooth
2.0Voicestereodata
GPS
No
FM
Yes, support speaker (antenna inbuilt earphone)
Vibrator Motor
Yes
Data Interface
5pin Mini USB
Power Interface
Headset Jack
3.5mm
Earphone
Stereo
Lanyard Hole
Yes
Antenna
Built-in
Battery
Standard Nokia BL-5C 1000mAh
Charging Time
< 4h
Standby Time
> 160h
Talking Time
> 90min
Remark:
CDMA 450 MHz Mobile Phone/ CDMA phone
Monoblock with Full keypad
2000 phonebook
Camera, MP3 MP4 FM
Bluetooth
USB
CDMA mobile phone / CDMA phone/CDMA mobile
Wivotelecom Electronic & Mechanical Co., Ltd. is an end to end system integration company specializing in range of CDMA mobility and customized terminal solutions. We entered into wireless communication field in 2002, and now we have become one of the leading CDMA mobile communication products and solutions providers with our own manufacture and R&D facilities.
Wivotelecom values customers by providing cutting edge technology, platforms, systems and consulting services in CDMA subscriber terminals. We supply high quality CDMA wireless products with affordable prices as well as high quality efficiency service. Furthermore, we can provide OEM and customized products worldwide.
Our Slogan: To be your professional partners in CDMA terminal solutions.
Our Strength: "CDMA Specialist"-that's what we call ourselves Wivotelecom.
Our distribution partnerships with major CDMA mobile phone vendors and OEM facilities manufacturing customized CDMA subscriber equipment make Wivotelecom your first choice for CDMA Network Operators & Distributor Channels.
We understand the importance and needs of CDMA operators to have high quality, wide variety and cost effective mobility solutions.
Wivotelecom keeps ourselves abreast with the latest and the best that CDMA Technology has to offer. We have complete range of CDMA 2000 1X & EV-DO solutions for voice & data covering all the frequencies (450 MHz / 800MHz / 1900MHz). Customized subscriber solutions with language option (English, Russian, Arabic, and French) and operator co-branding are made possible for our esteemed client. We work closely with partner CDMA operators to achieve the goal of maximizing ARPU.
