| Prod Model: |
CD-218 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Structure: |
Inverter Hole Design |
| Type: |
Sub Woofer |
| Crossover: |
Asymmetric Internal Passive Crossover |
| Lf Component: |
220mm Magnet with Aluminum Frame |
| Size Options: |
15", 18", Dual 18" |
| Installing: |
Lying Down |
| Diaphragm: |
Paper |
| Capacitor: |
Solen |
| Clients' Logo: |
Acceptable |
| Warranty: |
3 Years |
| Hi-Fi: |
Not Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| Speaker System: |
Optional Combination |
| Speaker Material: |
Wood |
| Application: |
Home |
| Certification: |
CCC |
| Noise: |
Nun |
| Monitor: |
Nun |
| THD: |
<0.05% |
Product Description
Features:a. Special inverter hole design;
b. Frequency can be below as 30Hz;
c. Reinforced cup-shaped mounting hole.
1. Description:CD-218 is a sub-woof loudspeaker designed specifically for RBX loudspeaker.
With a special inverter hole design, CD-218 is equipped with 2pcs of 18" strong and penetrating LF precise driver, whose frequency can be below as 30Hz.
2. Application:
It is ideal for auditorium, conference room, music bar, KTV and etc. As sub-woof loudspeaker, it can be combined with our full range loudspeaker.
3. Technical data:| Model | CD-218 18" 1600W Subwoofer Phase-Inverted Loudspeaker |
| Drivers | LF: 2×18"voice-coil: 4" |
| Frequency(±3dB) | 30HZ-220HZ(±3dB) |
| Dispersion(-6dB) | / |
| Sensitivity(1m/1W) | 101dB |
| Maximum SPL | 133dB Continuous/146dB Peak |
| Nominal Impedance | 4 Ohms |
| Input power | Rate: 1200W/Peak: 4800W |
| Recommend AMP | 1200W to 1800W into 8 Ohms |
| Connectors | 2 × Speakon NL4MP |
| Dimensions | 1066 × 565 × 785mm (H × W × D) |
| Master carton | 1126 × 625 × 845 (H × W × D) |
| Net Weight | 91.5Kg |
| Gross Weight | 96.5Kg |
4. Construction:| Physical | Rectangle |
| Enclosure | Imported multilayer birch plywood |
| Grille | Die-casting steel net with circular hole |
| Paint | Polyester coatings (whose color can be customized.) |
| Handing Position | / |
| Pole Mount | Top: Φ35mm support base |
a. Please kindly operate it according to the user manual (packing with products in cartons), avoid damaging products because of non-standard operation.
b. It should be placed in ventilated environment.
d. Please kindly keep it away from the direct sunlight and heat.

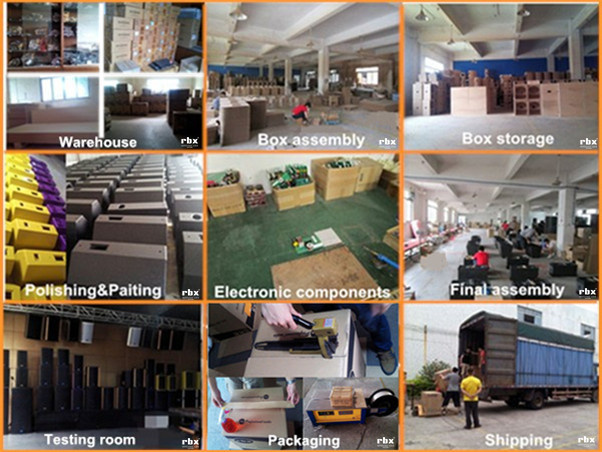

e. Please kindly clean the surface with wet soft cloth regularly. When you don't use it, it's better to put dust cover on it.6. Company View:
