| Prod Model: |
CD-15A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Sub Woofer |
| Crossover: |
Bi-AMP |
| Lf Component: |
220mm Magnet with Aluminum Frame |
| Size Options: |
15", 18", Dual 18" |
| Installing: |
Pole Mount, Lying Down |
| Diaphragm: |
Paper |
| Capacitor: |
Solen |
| Colour: |
Customized |
| Clients' Logo: |
Acceptable |
| Warranty: |
3 Years |
| Hi-Fi: |
Not Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| Speaker System: |
Optional Combination |
| Speaker Material: |
Wood |
| Application: |
Home |
| Certification: |
CCC |
| Noise: |
Nun |
| Monitor: |
Nun |
| THD: |
<0.05% |
Product Description
Features:
a. Active sub-woof loudspeaker;
b. Special inverter hole design;
c. Frequency can be below as 40Hz.
1. Description:

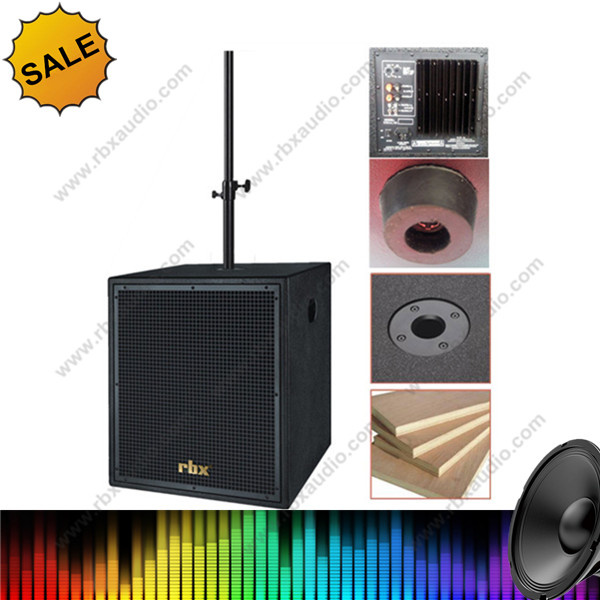

CD-15A is an active sub-woof loudspeaker designed specifically for RBX full range loudspeaker.
With a special inverter hole design, CD-15A is equipped with a 15" strong and penetrating LF precise driver, whose frequency can be below as 40Hz.
2. Application:
It is ideal for auditorium, conference room, music bar, KTV and etc. As sub-woof loudspeaker, it can be combined with our full range loudspeaker.
3. Technical data:
| Model | CD-15A 350W Active Powered Sound Speaker Subwoofer |
| Drivers | LF: 1×15"voice-coil: 4" |
| Frequency(±3dB) | 40HZ-220HZ(±3dB) |
| Dispersion(-6dB) | / |
| Sensitivity(1m/1W) | 101dB |
| Maximum SPL | 129dB Continuous/141dB Peak |
| Nominal Impedance | 8 Ohms |
| Input power | Rate: 600W |
| Recommend AMP | / |
| Connectors | 2 × Speakon NL4MP |
| Dimensions | 600 × 535 × 555mm (H × W × D) |
| Master carton | 660 × 595 × 615 (H × W × D) |
| Net Weight | 46Kg |
| Gross Weight | 49Kg |
4. Construction:
| Physical | Rectangle |
| Enclosure | Imported multilayer birch plywood |
| Grille | Die-casting steel net with circular hole |
| Paint | Polyester coatings (whose color can be customized.) |
| Handing Position | / |
| Pole Mount | Top: Φ35mm support base |
5. Maintenance:
a. Please kindly operate it according to the user manual (packing with products in cartons), avoid damaging products because of non-standard operation.
b. It should be placed in ventilated environment.
d. Please kindly keep it away from the direct sunlight and heat.
e. Please kindly clean the surface with wet soft cloth regularly. When you don't use it, it's better to put dust cover on it.
