Chinasky Electronics Co., Limited >> CCTV Security Microphone for Audio Surveillance System (502C)

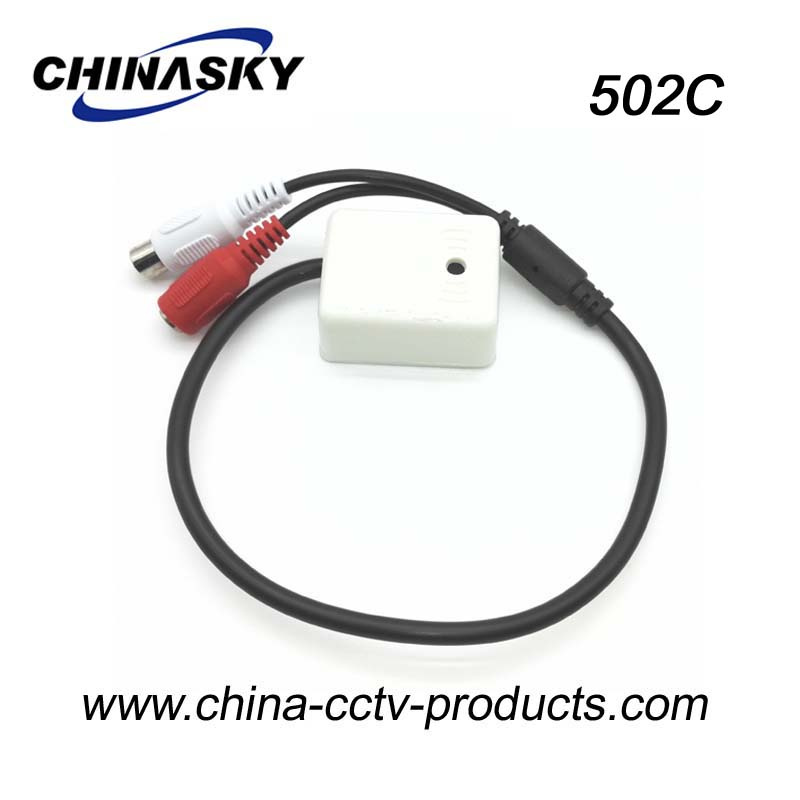

CCTV Security Microphone for Audio Surveillance System (502C)

CCTV Security Microphone for Audio Surveillance System (502C)
Price: US $ 2.5-2.8/Piece
Min Order: 10/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: 502C
Application: CCTV Cameras, DVR
Used For: Voice Pick up
Weight: 25g
Color: White

Product Description

CCTV Microphone for Surveillance System with Low Noise (502C)

An affordable highly sensitive CCTV Microphone which is small enough to use for covert and applications.

High Sensitive CCTV Microphone with a range of 120 sq. meters
Small and discrete making it ideal for both general and covert applications
RCA Audio input for connecting to a DVR
Standard 2.1mm 12V DC input
Outstanding interference rejection
Built-in Pre Amplifier!
No amplifier required just simply connect to the input source or DVR

 Specificationss:
BrandChinasky
model number502C
work voltage6 ~ 12VDC
work current12mA
Frequency200 ~ 10kHz
Output impedance600Ω
pickup range50~120m2
colorWhite
Work Temperature-20°C to 50°C
Package Dimension7.5X5X3cm
Weight50g
MaterialABS
Frequence Response2.5dB

What is our micrphone for?
This audio surveillance microphone can be added to any surveillance system with audio input. The CCTV microphone is typically used as an add-on to CCTV cameras that do not have built-in audio.

This microphone is stand alone as it does not rely on the power source from a security camera. Plug and play cables can be used with these microphones to easily run both the audio and power centrally back to the DVR.

The Mic comes with its own 12V DC power supply and can be used with CCTV Camera Pros stand alone surveillance DVRs or PC based DVRs, such as Geovision.

Because the microphone has a female RCA input and most DVRs have RCA inputs for the microphone inputs, we include two BNC to RCA converters for each end of the plug and play cable. Order the cable with this microphone and the converters are included. See the below audio surveillance connection diagram for more information.
