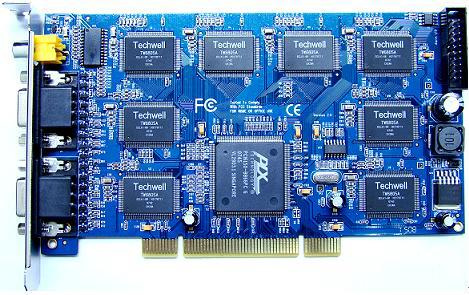

Product Description
Key Specifications:
Camera input: 16 channels Audio input: 8 channel TV output: 1 channel
Image compression: H. 264 optimized (high recording definition, especially when there is intense movement)
Video total frame rate: 200 fps in PAL, 240 fps in NTSC
Display resolution: 704 X 576, 352 X 288
Recording resolution: 640 X 480, 352 X 288
Compression ratio: 60-300M/C/H
Network protocol: TCP/ UDP
Operating System: Windows2000 / XP/Vista
Basic functions:
8ch real-time or 8-16ch non real-time monitoring, and its image speed is two or three times of the other non real-time equivalent cards.
Each channel Image color can be adjusted independently by software.
Support insert 2 cards in the same PC at most, form 32 channel monitoring, and can also support mix inserting BV-6104B, BV-6204B, BV-6408B to form 32 channel monitoring
Multi screen monitoring, 1, 4, 9, 16, 25, 32 split Screen available, support rotate display
Support multi-hard disks cycle recording
Recording both flow trends yard and fix yard are available
Intelligent searching for historical DVR files, up to 16 screen playback
Multi-users authority management setup, support to set up users operating authority
Support motion detection touch off the video recording, sending alarm by phone, and by sound.
Setting up motion detection area discretionarily, the sensitivity is adjustable
Through IE realize such perfect network management functions as remote spot monitoring, remote historical playback, remote spot video recording, remote historical video recording, etc
Support Intranet IP to remote monitoring
Support one IE remote monitors several DVR of different IP.
Support the watermark of the characters and time, the particular format of video files prevent being edited, the security is high.
The video file supports electron enlarge, taking pictures and instant print and exe format back up.
Support local and remote PTZ control
Features:
High speed network transmission
High Image quality
Easy to installation and use GUI (Graphical User Interface)
Free Software upgradeable
Shenzhen Peifan Technology Co., Ltd. is a well-known professional security system supplier in China. It specializes in development and production of high-quality security products which for CCTV cameras, Digital video recorders, DVR card, and Quad processors, etc. We can meet requirements of different environment and different level applications.
We provide high-quality infrared waterproof camera, (24-56 LED lights, 520-600 TVL, Sharp/Sony CCD), High speed camera, DVR Card, and CCTV accessories.
We also supply OEM or items with your own design, customized to corporate logo and motto. We spare no effort to keep quality control and shipment schedule, and competitive price.
